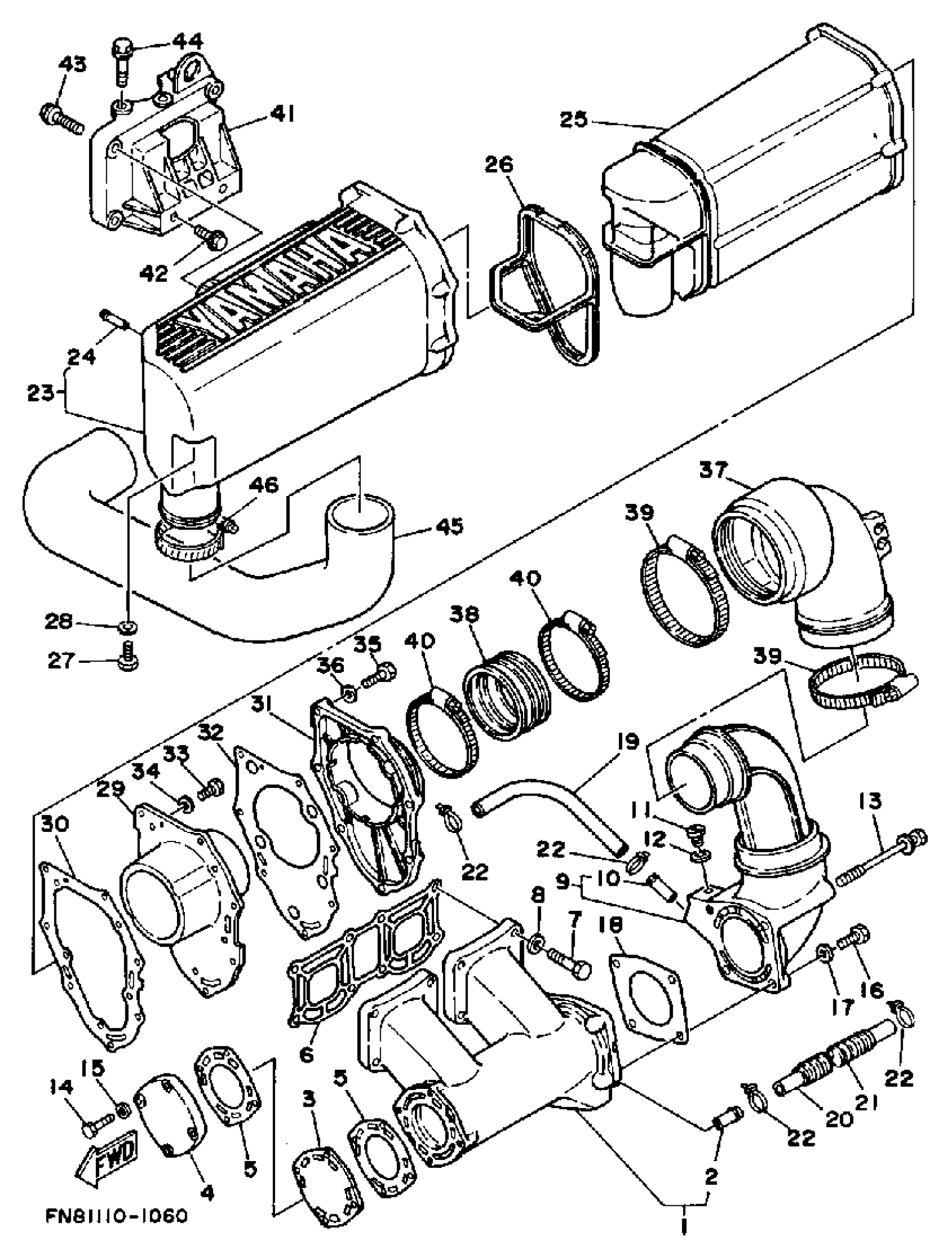

Yamaha WRB650P_FN8_800101 FN81 1991 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

6R7-14711-01-9M

$507.56

2

. NIPPLE

6K8-51129-00-00

$9.62

3

EXHAUST INNER CVR.

6M6-41111-00-00

Unavailable

4

PROTECTOR, MUFFLER 1

6M6-14718-01-8S

$56.99

5

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

$12.06

6

GASKET, EXHAUST PIPE

6M6-14613-A0-00

$9.62

7

BOLT

97013-08035-00

$4.48

8

.. WASHER, PLATE

92990-08600-00

$2.17

9

RING, JOINT

61L-14712-00-00

Unavailable

10

. NIPPLE

6K8-51129-00-00

$9.62

11

PLUG, STRAIGHT SCREW

90340-08002-00

$10.69

12

GASKET

90430-08003-00

$1.08

13

BOLT, WITH WASHER

97513-08590-00

Unavailable

14

BOLT

90101-06M27-00

$3.14

15

WASHER, PLAIN (646)

92990-06600-00

$1.84

16

BOLT (682)

97013-08025-00

Unavailable

17

.. WASHER, PLATE

92990-08600-00

$2.17

18

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

$13.58

19

HOSE

90446-14M34-00

Unavailable

20

HOSE

90445-14M03-00

Unavailable

21

HOSE(61L)

90446-20M31-00

Unavailable

22

CLAMP

90465-10098-00

$1.68

23

MUFFLER 2

6R7-14721-00-8S

$363.62

24

. PIPE, JOINT

6R7-14485-00-00

$11.99

25

SILENCER, EXHAUST

6R7-14753-00-8S

$203.02

26

SEAL, RUBBER 1

6R7-15761-00-00

$27.26

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

$1.84

29

DIFFUSER

6R7-14785-00-8S

$104.53

30

. GASKET, SILENCER

6R7-14755-A0-00

$17.35

31

OUTER COVER, EXHAUST

6R7-41113-00-8S

$109.08

32

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

$21.12

33

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

34

WASHER, PLAIN (646)

92990-06600-00

$1.84

35

BOLT

90101-06M27-00

$3.14

36

WASHER, PLAIN (646)

92990-06600-00

$1.84

37

JOINT, EXHAUST 1

61L-14615-00-00

$99.53

38

JOINT, EXHAUST 2

61L-14625-00-00

$75.81

39

CLAMP, HOSE

90460-90M11-00

$42.60

40

CLAMP, HOSE(6R7)

90460-70M16-00

Unavailable

41

STAY, MUFFLER 1

6M6-14771-00-00

$98.47

42

BOLT WASHER BASED HEAD (6M6)

90105-10M49-00

Unavailable

43

BOLT, WASHER BASED

90105-10M45-00

$5.45

44

BOLT, WITH WASHER

90119-10M72-00

$5.55

45

PIPE, OUTLET

FN8-E4752-00-00

Unavailable

46

CLAMP, HOSE(6R7)

90460-64M15-00

Unavailable
