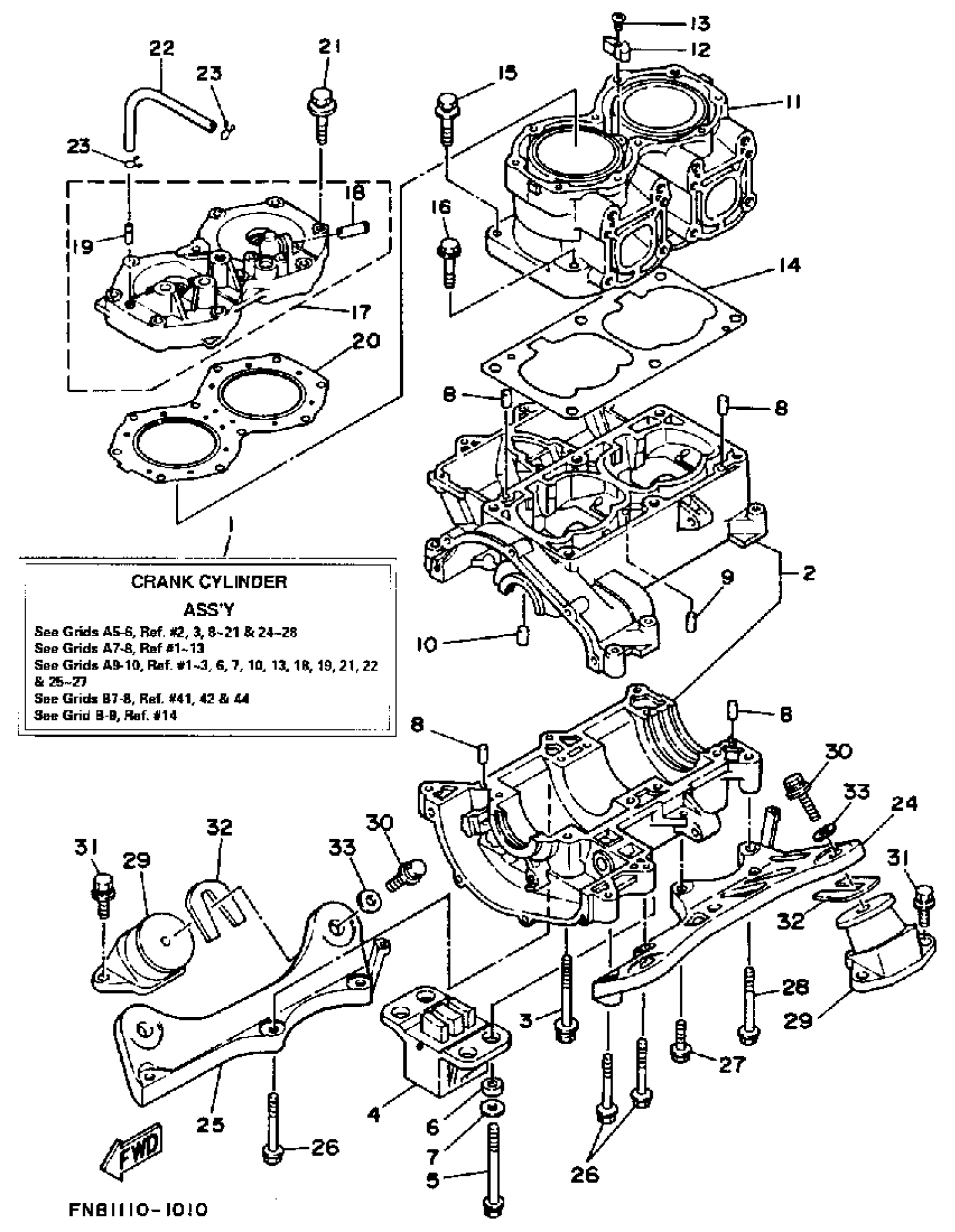

Yamaha WRB650P_FN8_800101 FN81 1991 CYLINDER - CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

61L-W0090-05-8P

Unavailable

2

CRANKCASE ASSY

6M6-15100-00-8S

Unavailable

3

BOLT, WITH WASHER

90119-08M55-00

$3.03

4

STOPPER, UPPER MOUNT

61L-44532-00-00

$68.64

5

BOLT

90109-08M56-00

$3.88

6

COLLAR

90387-08M10-00

Unavailable

7

WASHER, PLATE(6R8)

90201-08M04-00

$5.77

8

PIN, DOWEL (614)

93606-12019-00

$3.50

9

PIN (2H7)

93603-10049-00

Unavailable

10

PIN, DOWEL (8H1)

93604-07141-00

$1.29

11

CYLINDER 1

6M6-11311-01-8S

Unavailable

12

ANODE

6E5-11325-00-00

$4.52

13

SCREW, FLAT HEAD

98780-04016-00

$1.29

14

GASKET, CYLINDER

6M6-11351-A2-00

$17.94

15

BOLT, WITH WASHER

90119-10M56-00

$10.04

16

BOLT (6F5)

90119-10M07-00

Unavailable

17

HEAD, CYLINDER 1

6R7-11111-09-8S

Unavailable

18

. NIPPLE

6K8-51129-00-00

$9.87

19

. PIPE, JOINT

6R7-14485-00-00

$11.93

20

GASKET, CYL. HEAD

6R7-11181-A1-00

Unavailable

21

BOLT, WITH WASHER

90119-08019-00

$5.00

22

HOSE (L200)

90445-07M19-00

Unavailable

23

CLIP

90467-06016-00

$3.08

24

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$129.84

25

BRACKET, REAR UPPER 1

6R7-21425-01-00

$137.30

26

BOLT, WITH WASHER

90119-10M23-00

$10.04

27

BOLT, WITH WASHER

90119-10M00-00

$8.56

28

BOLT, WITH WASHER

90119-10M03-00

$8.94

29

MOUNT RUBBER

6M6-44517-A2-94

$86.17

30

BOLT, WITH WASHER

90119-08904-00

$3.02

31

BOLT, WITH WASHER

90119-08038-00

$4.72

32

PLATE

EU0-67324-00-00

$10.99

33

SHIM (T=0.1)

EU0-67354-A0-00

$4.31

33

SHIM (T=0.3)

EU0-67354-B0-00

$5.17

33

SHIM (T=0.5)

EU0-67354-C0-00

$4.31

33

SHIM (T=1.0)

EU0-67354-D0-00

$3.88

33

SHIM (T=2.0)

EU0-67354-E0-00

$3.88
