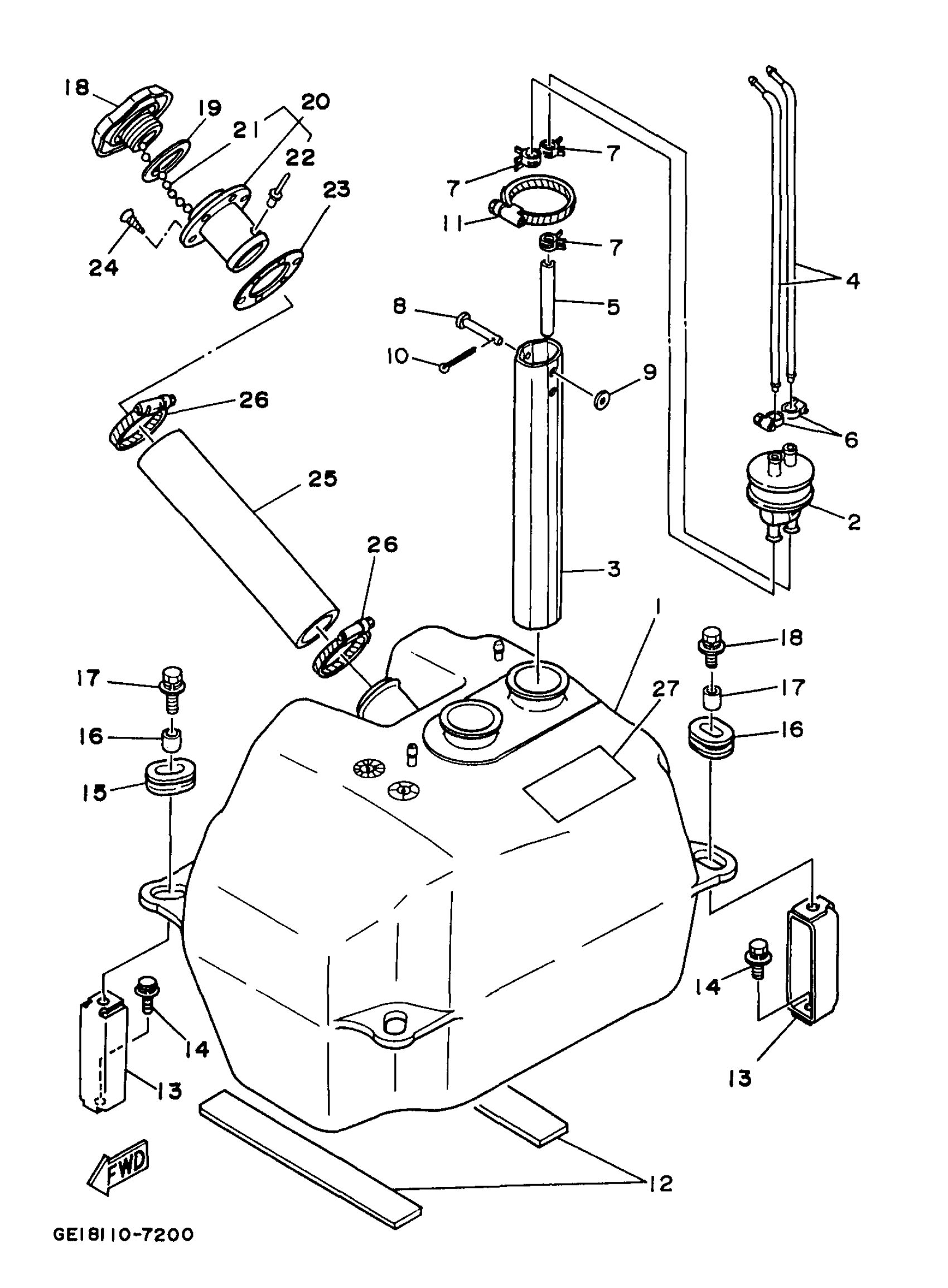

Yamaha WRA700V (WAVE RUNNER III) 6E18 1997 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

GA9-U7711-00-00

Unavailable

2

PIPE, JOINT

FJ0-67713-01-00

Unavailable

3

SLEEVE 1

FJ0-67716-01-00

Unavailable

4

PIPE, SUCTION 3

FJ0-67714-02-00

Unavailable

5

HOSE (L198)

90445-11293-00

$9.49

6

BAND, HOSE 11

90601-11062-00

Unavailable

7

CLIP (7K7)

90467-11044-00

$8.49

8

PIN (FJ0)

91790-05040-00

$7.49

9

WASHER, PLAIN (646)

92990-05600-00

$0.80

10

PIN. COTTER

91490-16010-00

Unavailable

11

BAND, HOSE 62

90601-162U5-00

Unavailable

12

MAT 2

EU0-U7593-30-00

Unavailable

13

FIX, FUEL TANK

FJ0-67777-00-00

Unavailable

14

BOLT, WITH WASHER

90119-08800-00

Unavailable

15

GROMMET

90480-21904-00

Unavailable

16

COLLAR

90387-08906-00

Unavailable

17

BOLT, WITH WASHER

90119-08916-00

Unavailable

18

CAP, FUEL FILLER

EU0-67831-32-00

Unavailable

19

PACKING 1

EU0-67832-00-00

Unavailable

20

SOCKET

EU0-W6783-30-00

Unavailable

21

. CHAIN BALL

EU0-67835-00-00

Unavailable

22

. RIVET, BLIND

90267-40935-00

Unavailable

23

PACKING, FUEL FILLER

EU0-67834-00-00

Unavailable

24

SCREW, FLAT HEAD TAPPING

EU0-U7869-00-00

Unavailable

25

HOSE

GA9-U7844-00-00

Unavailable

26

BAND, HOSE 55

90601-155U4-00

Unavailable

27

LABEL, CAUTION

FJ0-64183-A1-00

Unavailable
