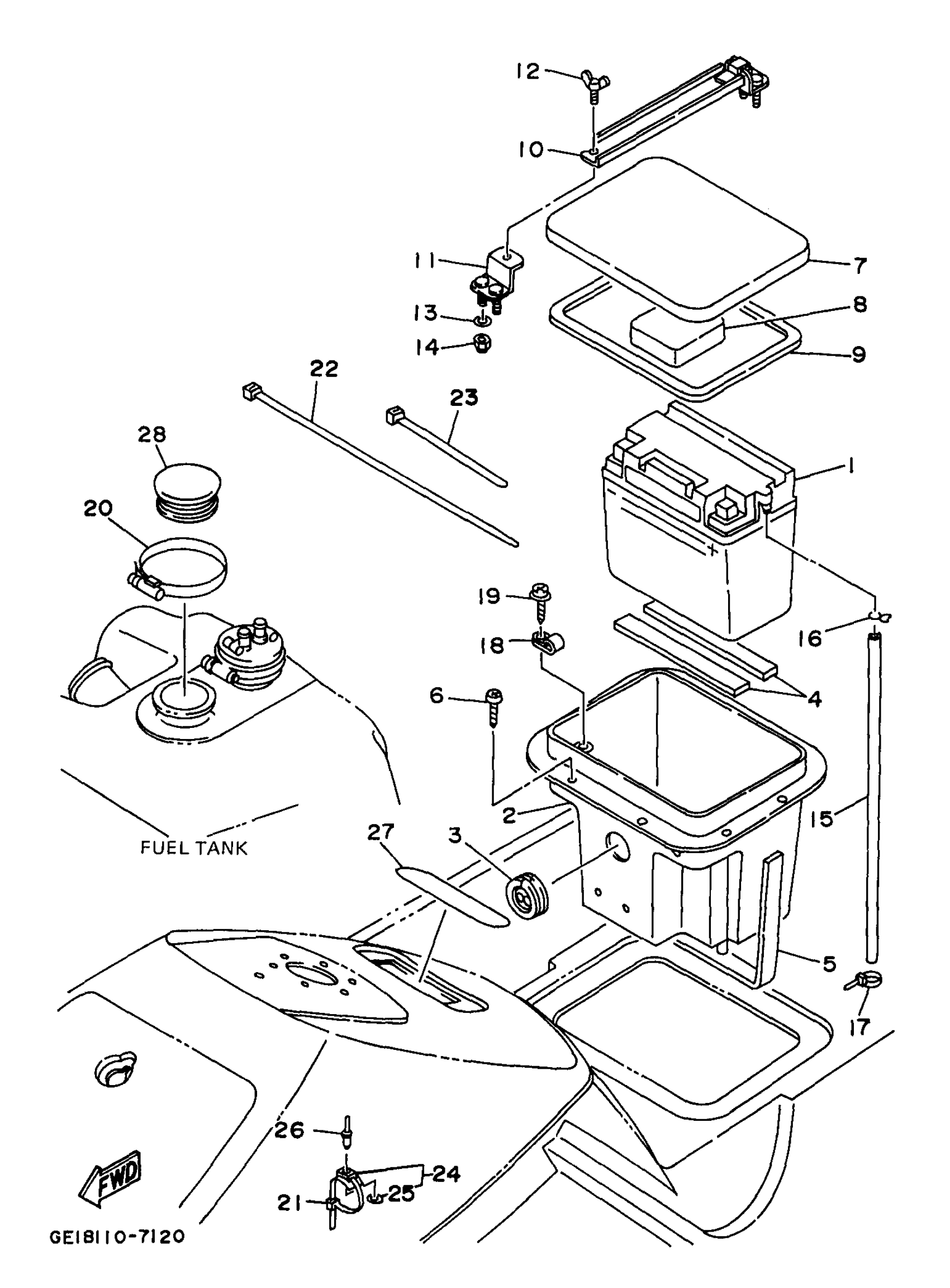

Yamaha WRA700V (WAVE RUNNER III) 6E18 1997 ELECTRICAL 2 Diagram

#

Description

Price

1

BATTERY

EU0-82110-77-00

Unavailable

2

CASE,BATTERY

GA9-U8211-01-00

Unavailable

3

GROMMET

FJ0-68222-01-00

Unavailable

4

PAD, BATTERY 1

FJ0-68221-00-00

Unavailable

5

PAD, BATTERY 2

FJ0-68221-30-00

Unavailable

6

SCREW

90149-05984-00

Unavailable

7

RID, BATTERY CASE

GA9-U8212-00-00

Unavailable

8

PAD, BATTERY 3

FJ0-68221-40-00

Unavailable

9

PAD, BATTERY 4

FJ0-68221-50-00

Unavailable

10

BAND, BATTERY CASE

FJ0-68228-00-00

Unavailable

11

END PLATE

FJ0-68229-00-00

Unavailable

12

BOLT, WING

90122-05909-00

Unavailable

13

. WASHER, PLAIN

92990-05200-00

Unavailable

14

NUT, FLANGE

95720-05300-00

Unavailable

15

HOSE, AIR VENT 5

FJ0-67856-40-00

Unavailable

16

CLIP

90467-08M10-00

Unavailable

17

CLAMP

90465-10098-00

Unavailable

18

CLAMP

90600-913U2-00

Unavailable

19

SCREW, TAPPING

97780-40116-00

Unavailable

20

BAND, HOSE 62

90601-162U5-00

Unavailable

21

BAND (EU0)

90601-20009-00

Unavailable

22

BAND

90601-20008-00

Unavailable

23

BAND (EU0)

90601-20009-00

Unavailable

24

CLAMP COMP (EU0)

90600-91736-00

Unavailable

25

. WASHER, PLAIN

90201-05925-00

Unavailable

26

RIVET, BLIND

90267-48802-00

Unavailable

27

EMBLEM A

GA9-U4121-00-00

Unavailable

28

COVER

FN8-6771K-00-00

Unavailable
