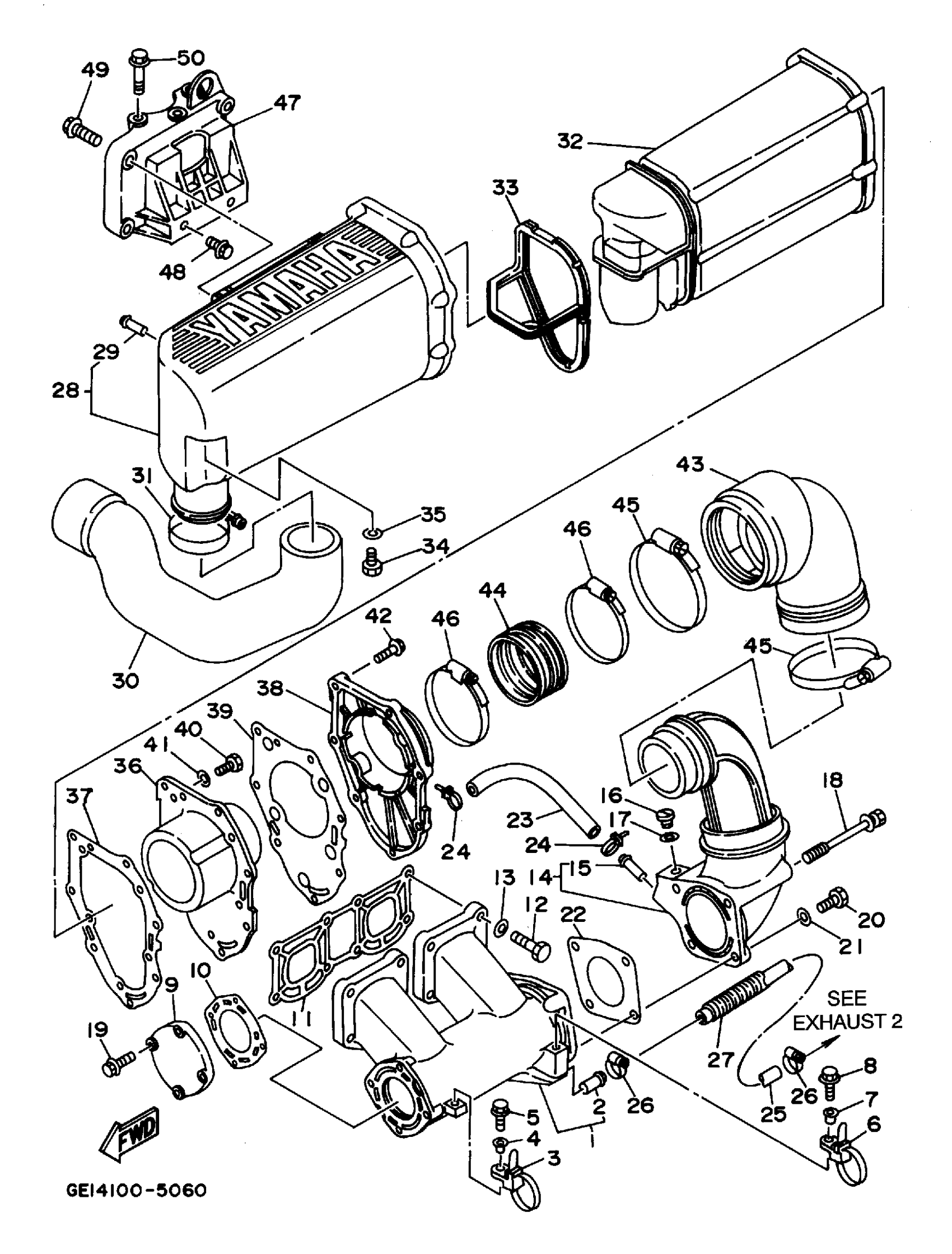

Yamaha WRA700T (WAVE RUNNER III GP) 1995 EXHAUST 1 Diagram
#
1
MUFFLER 1
62G-14711-00-9M
Unavailable
2
. NIPPLE
6K8-51129-00-00
Unavailable
3
CLAMP
90465-12M53-00
Unavailable
4
COLLAR
90387-06M05-00
Unavailable
5
BOLT, HEXAGON W/W DEEP RECESS
97E95-06520-00
Unavailable
6
CLAMP
90465-12M53-00
Unavailable
7
COLLAR
90387-06M05-00
Unavailable
8
BOLT, HEXAGON W/W DEEP RECESS
97E95-06520-00
Unavailable
9
PROTECTOR, MUFFLER 1
6M6-14718-01-8S
Unavailable
10
GASKET, MUFFLER DAMPER 1
6M6-14739-A2-00
Unavailable
11
GASKET, EXHAUST PIPE
61X-14613-A1-00
Unavailable
12
BOLT
97013-08035-00
$5.60
13
.. WASHER, PLATE
92990-08600-00
Unavailable
14
RING, JOINT
61L-14712-00-00
Unavailable
15
. NIPPLE
6K8-51129-00-00
Unavailable
16
PLUG, STRAIGHT SCREW
90340-08002-00
Unavailable
17
GASKET
90430-08003-00
Unavailable
18
BOLT, WITH WASHER
97513-08590-00
Unavailable
19
BOLT, HEXAGON W/W DEEP RECESS
97E95-06525-00
Unavailable
20
BOLT (682)
97013-08025-00
Unavailable
21
.. WASHER, PLATE
92990-08600-00
Unavailable
22
GASKET, MUFFLER DAMPER 2
6R7-14749-A1-00
Unavailable
23
HOSE (L380)
90445-14M25-00
Unavailable
24
CLAMP
90465-10098-00
Unavailable
25
HOSE (L380)
90445-14M25-00
Unavailable
26
HOSE CLAMP ASSY(62T)
90450-14M05-00
Unavailable
27
HOSE (L230)
90446-20M24-00
Unavailable
28
MUFFLER 2
6R7-14721-00-8S
Unavailable
29
. PIPE, JOINT
6R7-14485-00-00
Unavailable
30
PIPE, OUTLET
6R8-14752-00-00
Unavailable
31
HOSE CLAMP ASSY
90450-94001-00
Unavailable
32
SILENCER, EXHAUST
6R7-14753-00-8S
Unavailable
33
SEAL, RUBBER 1
6R7-15761-00-00
Unavailable
34
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
35
WASHER, PLAIN (646)
92990-06600-00
Unavailable
36
DIFFUSER
6R7-14785-00-8S
Unavailable
37
. GASKET, SILENCER
6R7-14755-A0-00
Unavailable
38
OUTER COVER, EXHAUST
6R7-41113-00-8S
Unavailable
39
. GASKET, EXHAUST OUTER COVER
6R7-41114-A0-00
Unavailable
40
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
41
WASHER, PLAIN (646)
92990-06600-00
Unavailable
42
BOLT, WITH WASHER(63M)
97513-06530-00
Unavailable
43
JOINT, EXHAUST 1
61L-14615-00-00
Unavailable
44
JOINT, EXHAUST 2
61L-14625-00-00
Unavailable
45
CLAMP, HOSE
90460-90M11-00
Unavailable
46
CLAMP, HOSE(6R7)
90460-70M16-00
Unavailable
47
STAY, MUFFLER 1
6M6-14771-00-00
Unavailable
48
BOLT WASHER BASED HEAD (6M6)
90105-10M49-00
Unavailable
49
BOLT, WASHER BASED
90105-10M45-00
Unavailable
50
BOLT, WITH WASHER
90119-10M72-00
Unavailable
