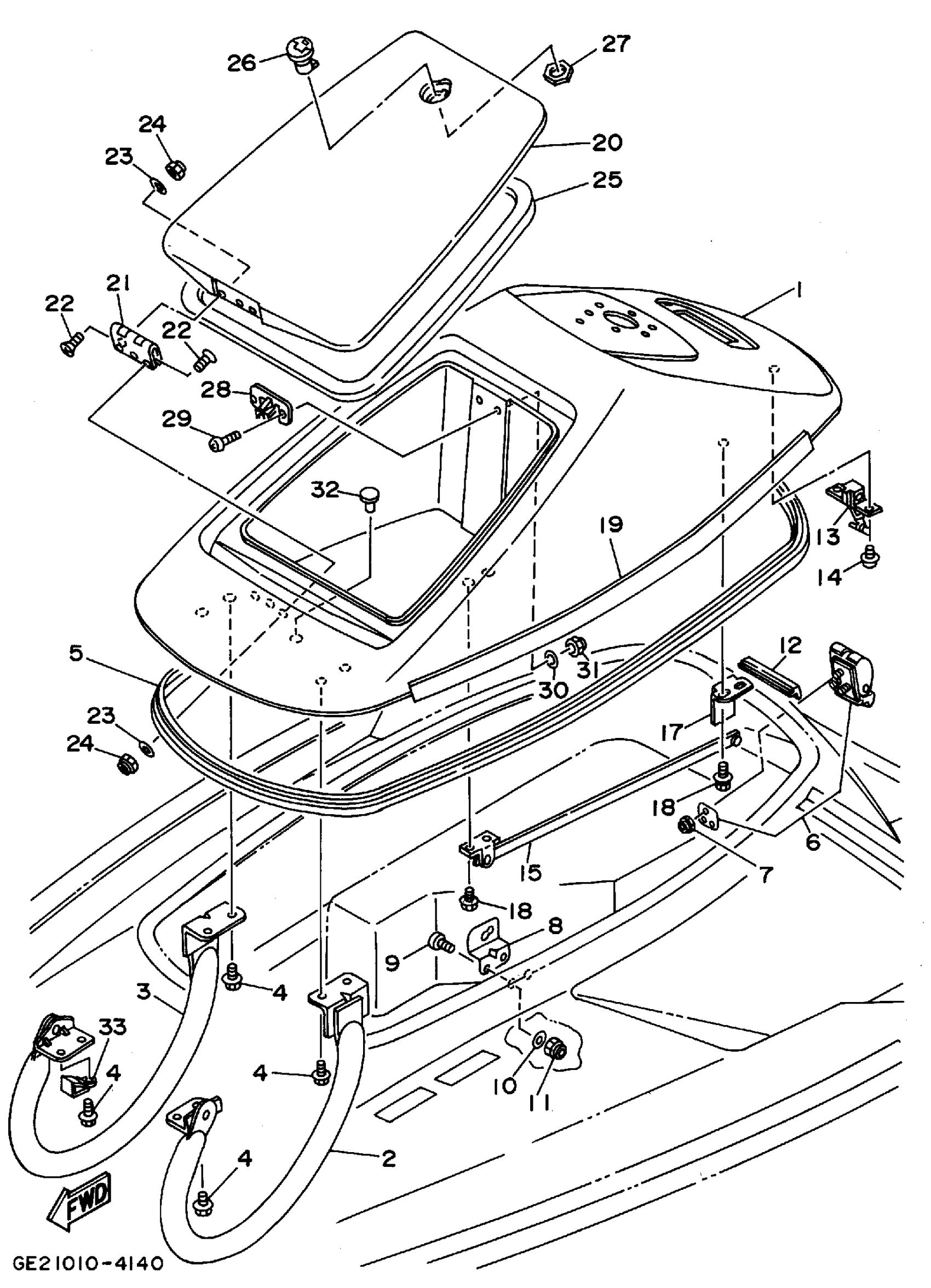

Yamaha WRA700T (WAVE RUNNER III GP) 1995 ENGINE HATCH Diagram

#

Description
Price

1

ENGINE HATCH COMP.

GA9-U516A-02-P3

Unavailable

2

HINGE, HATCH (LH)

FJ0-65163-11-00

Unavailable

3

HINGE, HATCH (RH)

FJ0-65163-21-00

Unavailable

4

BOLT, WITH WASHER

90119-06913-00

$1.29

5

PACKING

FJ0-62663-00-00

Unavailable

6

HATCH LOCK ASSY

FJ0-62840-02-00

Unavailable

7

NUT, FLANGE

95720-05300-00

$1.29

8

BRACKET, HATCH SUPPORT

FJ0-62884-00-00

Unavailable

9

SCREW PAN HEAD

98580-06020-00

$4.89

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

11

NUT, SELF-LOCKING

95720-06300-00

$1.72

12

TRIM

GA9-U5162-00-00

Unavailable

13

HOOK, HATCH LOCK

FJ0-62843-00-00

Unavailable

14

SCREW, WITH WASHER

90159-06901-00

$8.94

15

SUPPORT, HATCH

FJ0-62891-01-00

$119.39

16

SCREW, WITH WASHER

90159-06901-00

$8.94

17

FIX, PLATE

FJ0-62892-30-00

Unavailable

18

BOLT,WITH WASHER

90119-06940-00

Unavailable

19

TRIM 1

GA9-U516C-30-00

Unavailable

20

LID, ENGINE HATCH

GA9-U517B-00-P3

Unavailable

21

HINGE

FJ0-65173-00-00

$44.76

22

. SCREW, FLAT HEAD

98780-05016-00

$2.64

23

. WASHER, PLAIN

92990-05200-00

$4.71

24

NUT, FLANGE

95720-05300-00

$1.29

25

PACKING 3

FJ0-62665-00-00

Unavailable

26

LOCK, LID

FJ0-65172-00-00

$34.57

27

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

28

HOOK, LID LOCK

FJ0-65174-00-00

Unavailable

29

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.31

30

. WASHER, PLAIN

92990-05200-00

$4.71

31

NUT, FLANGE

95720-05300-00

$1.29

32

PLUG(EU0)

90605-50201-00

Unavailable

33

CLAMP

90465-08M33-00

$9.69
