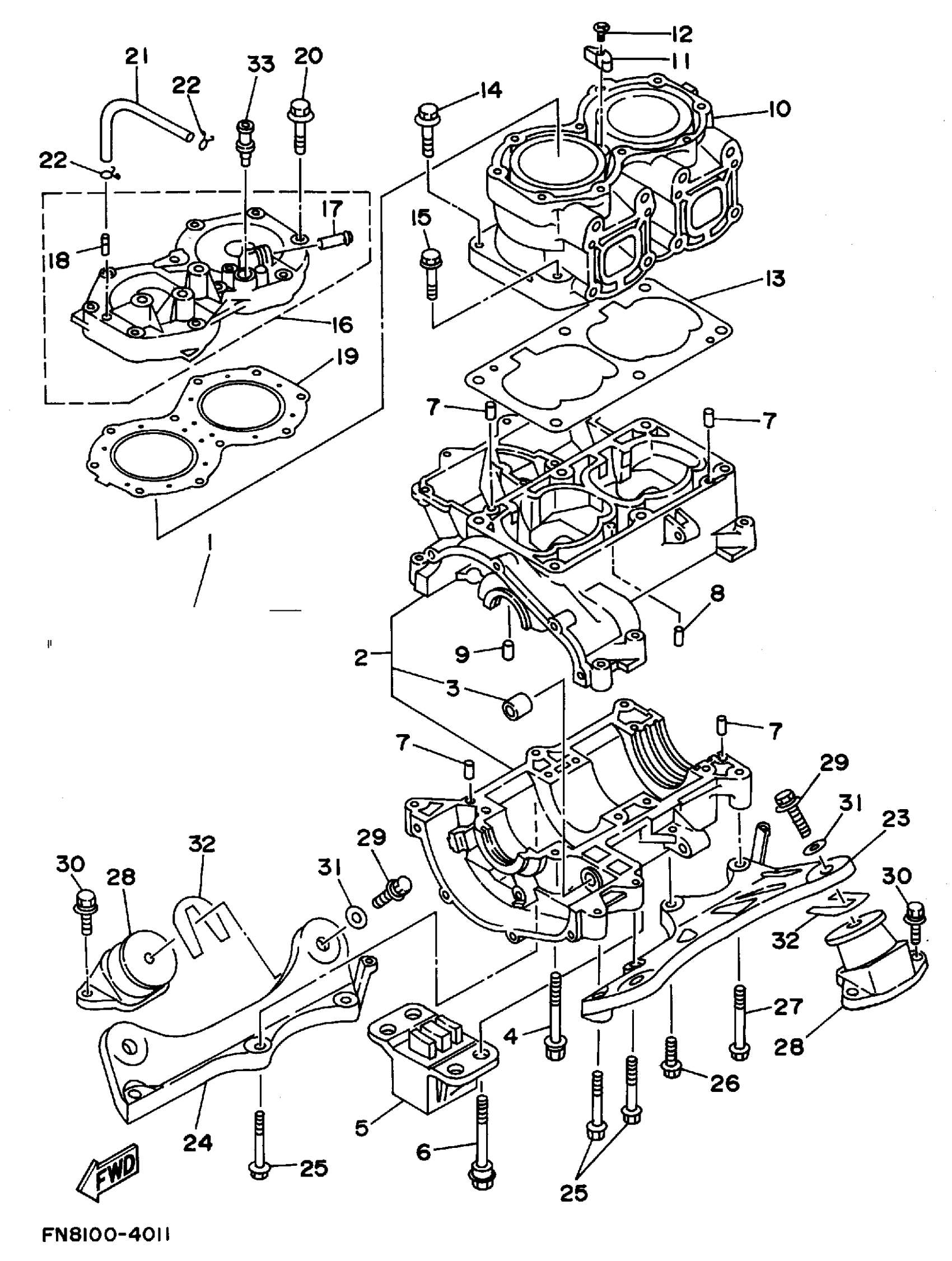

Yamaha WRA700T (WAVE RUNNER III GP) 1995 CYLINDER CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

62G-W0090-03-8P

$3,955.21

2

CRANKCASE ASSY

61X-15100-00-8S

Unavailable

3

. BUSH, SOLID

90380-12M29-00

Unavailable

4

BOLT, WITH WASHER

90119-08M55-00

$3.03

5

STOPPER, UPPER MOUNT

6R8-44532-00-00

Unavailable

6

BOLT

90109-08M56-00

$3.88

7

PIN, DOWEL (614)

93606-12019-00

$3.50

8

PIN (2H7)

93603-10049-00

Unavailable

9

PIN, DOWEL (8H1)

93604-07141-00

$1.29

10

CYLINDER 1

61X-11311-01-8S

$767.15

11

ANODE

6E5-11325-00-00

$4.52

12

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

13

GASKET, CYLINDER

6M6-11351-A2-00

$17.94

14

BOLT, WITH WASHER

90119-10M56-00

$10.04

15

BOLT (6F5)

90119-10M07-00

$4.21

16

HEAD, CYLINDER 1

61X-11111-09-8S

Unavailable

17

. NIPPLE

6K8-51129-00-00

$9.87

18

. PIPE, JOINT

6R7-14485-00-00

$11.93

19

GASKET, CYLINDER HEAD 1

61X-11181-A1-00

Unavailable

20

BOLT, WITH WASHER

90119-08019-00

$5.00

21

HOSE (L200)

90445-07M19-00

Unavailable

22

CLIP

90467-06016-00

$3.08

23

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$129.84

24

BRACKET, REAR UPPER 1

6R7-21425-01-00

$137.30

25

BOLT, WITH WASHER

90119-10M23-00

$10.04

26

BOLT, WITH WASHER

90119-10M00-00

$8.56

27

BOLT, WITH WASHER

90119-10M03-00

$8.94

28

MOUNT RUBBER

6M6-44517-A2-94

$86.17

29

BOLT, WITH WASHER

90119-08904-00

$3.02

30

BOLT, WITH WASHER

90119-08038-00

$4.72

31

PLATE

EU0-67324-00-00

$10.99

32

SHIM (T=0.1)

EU0-67354-A0-00

$4.31

32

SHIM (T=0.3)

EU0-67354-B0-00

$5.17

32

SHIM (T=0.5)

EU0-67354-C0-00

$4.31

32

SHIM (T=1.0)

EU0-67354-D0-00

$3.88

32

SHIM (T=2.0)

EU0-67354-E0-00

$3.88

33

JET DRIVE FLUSH

ABB-FLUSH-JD-00

$14.81
