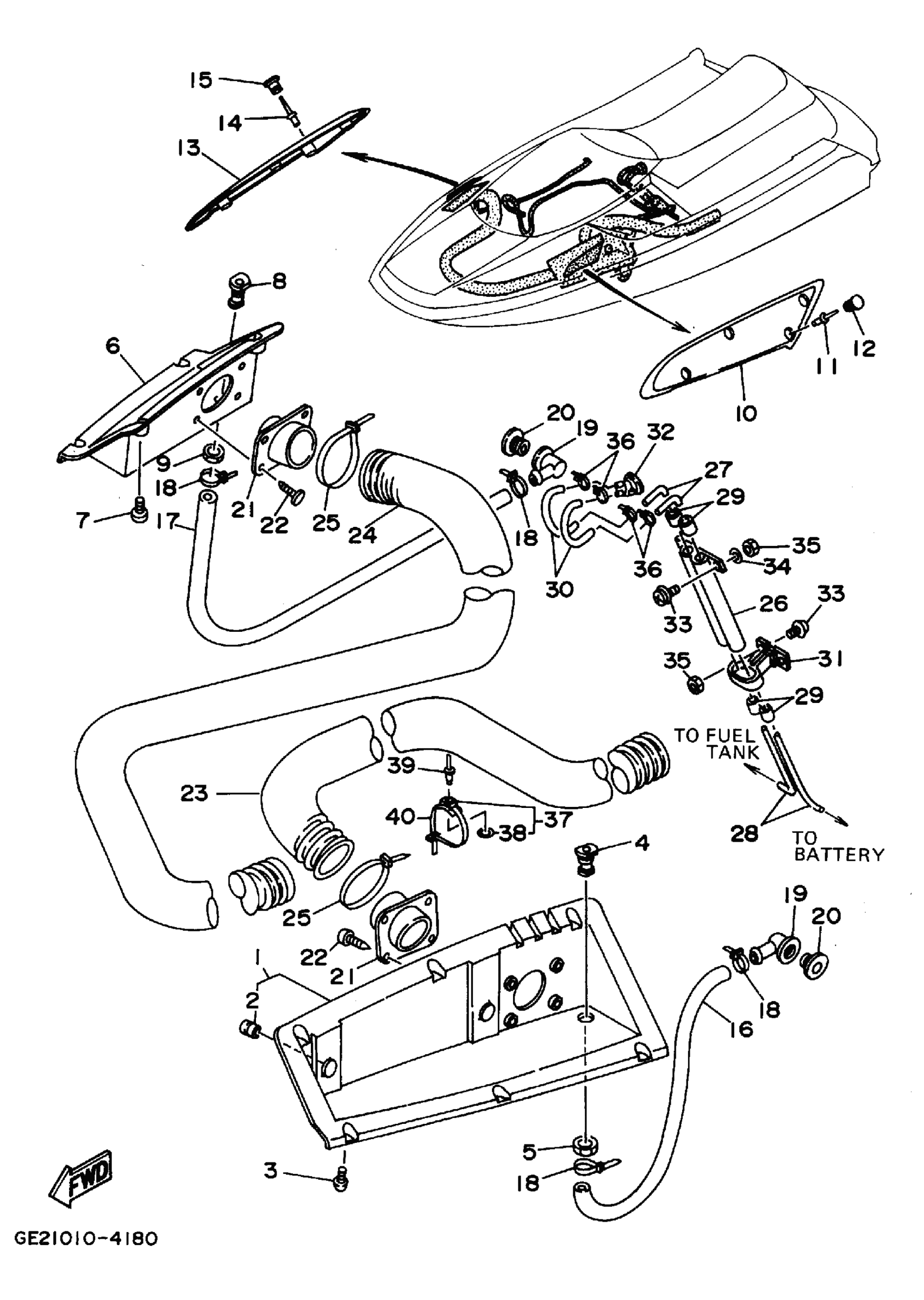

Yamaha WRA700S (WAVE RUNNER III GP) 1994 VENTILATION Diagram
#
1
COVER, VENTILATOR (LH)
GA9-U213B-00-00
Unavailable
2
. NUT
90179-08927-00
Unavailable
3
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
Unavailable
4
BODY, DRAIN 1
EU0-62241-00-00
Unavailable
5
. NUT, DRAIN 1
EU0-62241-30-00
Unavailable
6
COVER, VENTILATOR (RH)
GA9-U213C-00-00
Unavailable
7
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
Unavailable
8
BODY, DRAIN 1
EU0-62241-00-00
Unavailable
9
. NUT, DRAIN 1
EU0-62241-30-00
Unavailable
10
COVER, AIR INTAKE
GE2-6212B-10-00
Unavailable
11
RIVET, BLIND
90267-48946-00
Unavailable
12
CAP, RIVE
GE2-6212D-00-00
Unavailable
13
COVER, AIR INTAKE
GE2-6212B-20-00
Unavailable
14
RIVET, BLIND
90267-48946-00
Unavailable
15
CAP, RIVE
GE2-6212D-00-00
Unavailable
16
HOSE 1
90669-03030-00
Unavailable
17
HOSE
90669-03008-00
Unavailable
18
BAND
90601-200U1-00
Unavailable
19
BODY, DRAIN 3
FN8-6224E-00-00
Unavailable
20
BODY, DRAIN 4
FN8-6224F-01-00
Unavailable
21
BASE, AIR INTAKE
FJ0-62127-00-00
Unavailable
22
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
Unavailable
23
VENTILATION HOSE (LH)
FJ0-62136-10-00
Unavailable
24
VENTILATION HOSE (RH)
FJ0-62136-20-00
Unavailable
25
BAND
90601-20008-00
Unavailable
26
PIPE, VENTILATION
FJ0-62149-00-00
Unavailable
27
ELBOW, VENTILATOR 11
FJ0-62156-00-00
Unavailable
28
ELBOW VENT 12
EU0-62156-32-00
Unavailable
29
CAP
EU0-62155-00-00
Unavailable
30
HOSE (L180)
90445-094K7-00
Unavailable
31
SUPPORT
FJ0-62151-00-00
Unavailable
32
NIPPLE
FJ0-6215F-00-00
Unavailable
33
SCREW, WITH WASHER
90159-05900-00
Unavailable
34
. WASHER, PLAIN
92990-05200-00
Unavailable
35
NUT, FLANGE
95720-05300-00
Unavailable
36
CLAMP
90465-10098-00
Unavailable
37
CLAMP COMP (EU0)
90600-91736-00
Unavailable
38
. WASHER, PLAIN
90201-05925-00
Unavailable
39
RIVET, BLIND
90267-48802-00
Unavailable
40
BAND
90601-20008-00
Unavailable
