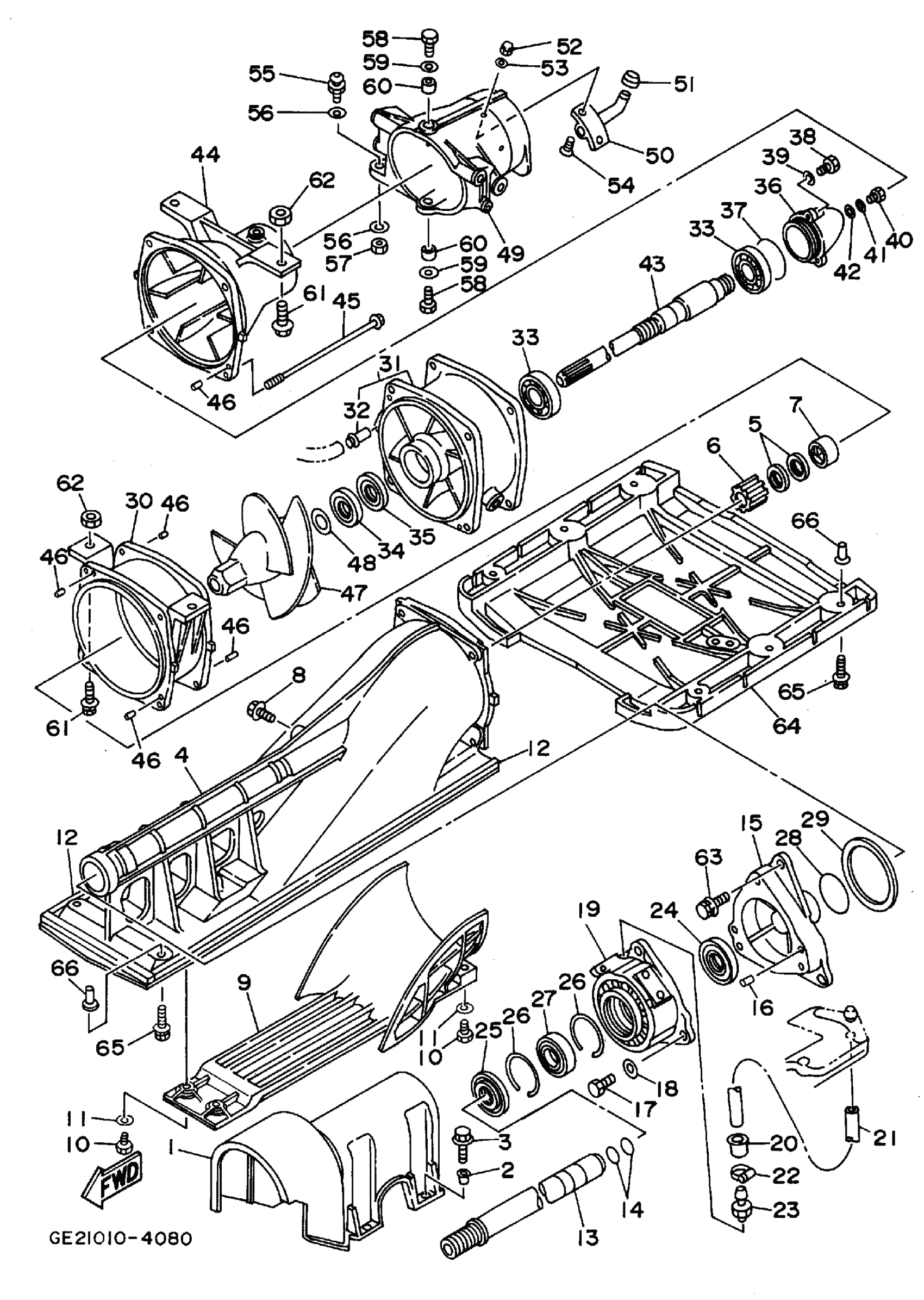

Yamaha WRA700S (WAVE RUNNER III GP) 1994 JET UNIT 1 Diagram
#
1
COVER
6R8-51381-01-00
Unavailable
2
COLLAR
90387-06M70-00
Unavailable
3
BOLT, HEXAGON W/W DEEP RECESS
97E95-06520-00
Unavailable
4
DUCT, INTAKE
6R8-51311-02-94
Unavailable
5
OIL SEAL(6R8)
93102-18M35-00
Unavailable
6
BUSHING, DRIVE SHAFT
6R8-45318-00-00
Unavailable
7
SPACER
6R8-51348-02-94
Unavailable
8
BOLT, HEXAGON W/W DEEP RECESS
97E95-06525-00
Unavailable
9
SCREEN, INTAKE
62G-51333-01-CA
Unavailable
10
BOLT (FJ0)
97080-06018-00
Unavailable
11
WASHER, PLAIN (646)
92990-06600-00
$2.80
12
. FELT, PACKING
6R8-51367-01-00
Unavailable
13
SHAFT, COUPLER
6R8-51323-02-00
Unavailable
14
O-RING(6R7)
93210-17MA4-00
$7.49
15
HOUSING, BEARING
62G-45331-01-94
Unavailable
16
PIN, DOWEL(6R7)
93606-07M17-00
Unavailable
17
BOLT (62G)
97095-08025-00
Unavailable
18
.. WASHER, PLATE
92990-08600-00
Unavailable
19
HOUSING SET, BEARING (61X-00)
99999-02643-00
Unavailable
20
BUSH
90386-08006-00
Unavailable
21
HOSE (L445)
90445-09M21-00
Unavailable
22
CLAMP, HOSE(61L)
90460-11M17-00
Unavailable
23
NIPPLE, HOSE
61L-45378-00-00
Unavailable
24
OIL SEAL(62T)
93101-25M55-00
Unavailable
25
OIL SEAL
93101-24001-00
Unavailable
26
CIRCLIP
93430-47M04-00
Unavailable
27
BEARING(62G)
93306-205U6-00
Unavailable
28
O-RING
93210-35M72-00
Unavailable
29
SEAL
6K8-45127-00-00
Unavailable
30
HOUSING, IMPELLER
6R8-51312-03-94
Unavailable
31
DUCT, IMPELLER
6R7-51315-01-94
Unavailable
32
. NIPPLE
6K8-51129-00-00
Unavailable
33
BEARING (6K8)
93306-205U1-00
Unavailable
34
OIL SEAL(6R7)
93102-25M34-00
Unavailable
35
OIL SEAL(6R7)
93101-25M50-00
Unavailable
36
CAP
62T-51326-00-00
Unavailable
37
. O-RING
93210-46M16-00
Unavailable
38
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
39
WASHER, PLAIN (646)
92990-06600-00
$2.80
40
BOLT(GH1)
97080-06012-00
Unavailable
41
WASHER, PLAIN (646)
92990-06600-00
$2.80
42
. GASKET
90430-06M03-00
Unavailable
43
SHAFT, DRIVE
6R8-45511-00-00
Unavailable
44
NOZZULE
6R8-51318-01-94
Unavailable
45
BOLT(6R8)
90101-06M04-00
Unavailable
46
PIN, DOWEL (614)
93606-12019-00
Unavailable
47
IMPELLER
62E-51321-A0-00
Unavailable
48
SPACER
62T-51348-00-00
Unavailable
49
NOZZLE,DEFLECTOR
6R8-51313-03-94
Unavailable
50
SPOUT
62G-62693-00-00
Unavailable
51
CAP, SPOUT
6R8-62695-00-00
Unavailable
52
.. NUT
95380-05800-00
Unavailable
53
. WASHER, PLAIN
92990-05200-00
Unavailable
54
SCREW(617)
98780-05012-00
Unavailable
55
. BOLT, JOINT
6R7-42316-00-00
Unavailable
56
WASHER, PLATE
90201-06M31-00
Unavailable
57
NUT(650)
95380-06700-00
Unavailable
58
BOLT, HEXAGON
97095-08018-00
Unavailable
59
.. WASHER, PLATE
92990-08600-00
Unavailable
60
COLLAR
90387-08M08-00
Unavailable
61
BOLT
90119-10906-00
Unavailable
62
NUT
90179-10925-00
Unavailable
63
BOLT, WITH WASHER
90119-08907-00
Unavailable
64
PLATE 2
FJ0-62731-01-00
Unavailable
65
BOLT, WITH WASHER
90119-06896-00
Unavailable
66
NUT(FJ0)
90179-06947-00
Unavailable
