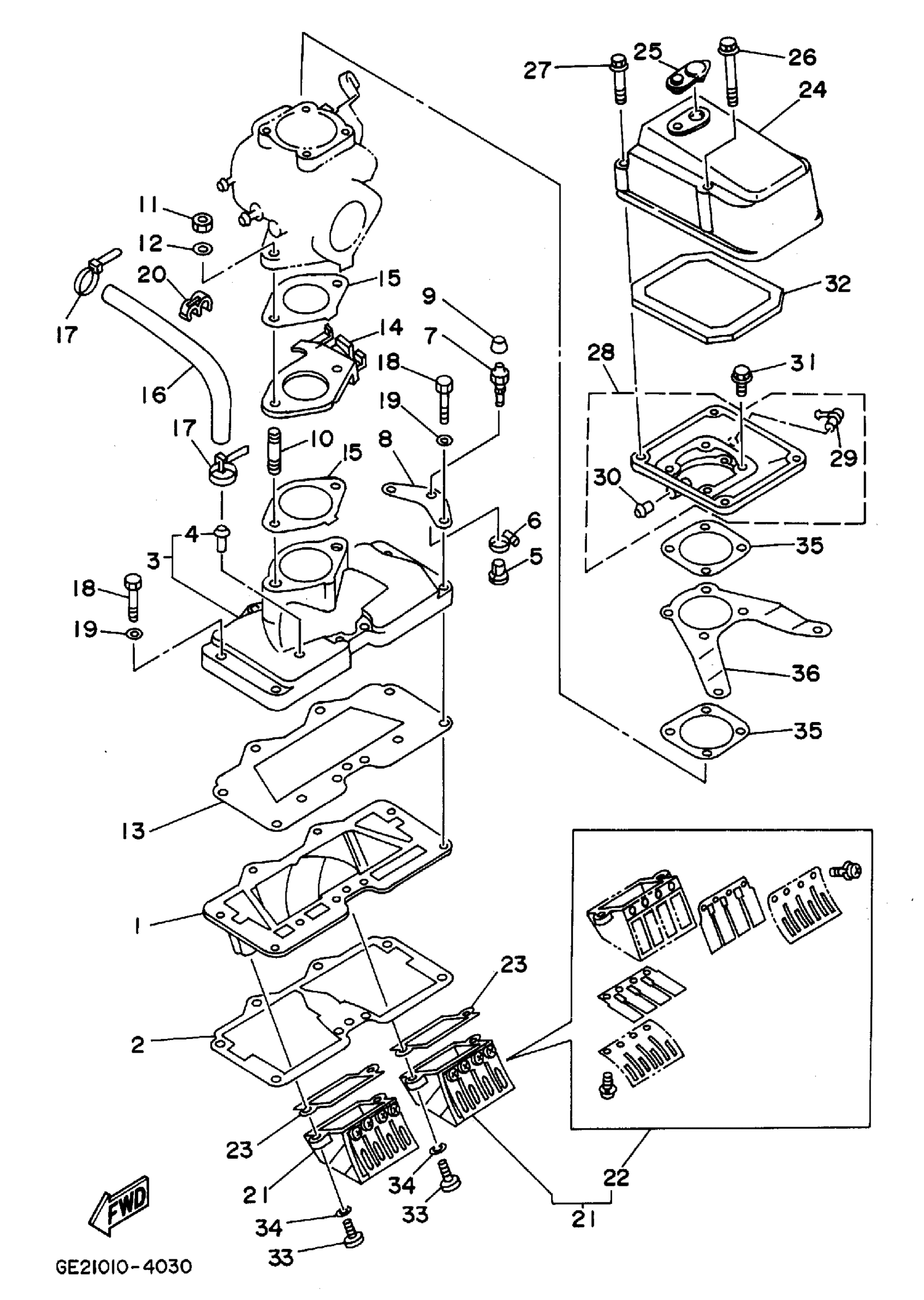

Yamaha WRA700S (WAVE RUNNER III GP) 1994 INTAKE Diagram

#

Description
Price

1

MANIFOLD 1

61X-13641-01-94

Unavailable

2

GASKET

61X-13566-A1-00

$12.62

3

MANIFOLD, INTAKE

61X-13555-01-8P

Unavailable

4

. PIPE, JOINT 4

652-24461-00-00

$5.31

5

BUSH

90386-08006-00

$2.80

6

CLAMP, HOSE(61L)

90460-11M17-00

$16.66

7

NIPPLE, GREASE

61L-5169A-00-00

$7.40

8

PLATE

61L-14243-00-00

Unavailable

9

CAP, GREASE NIPPLE

663-45119-01-00

$1.83

10

BOLT, STUD

90116-08M14-00

$5.07

11

NUT (661)

95380-08600-00

$6.14

12

.. WASHER, PLATE

92990-08600-00

$2.17

13

GASKET

61X-13563-A1-00

Unavailable

14

PLATE

6M6-14527-02-94

Unavailable

15

GASKET, MANIFOLD

6M6-13556-A1-00

$5.91

16

HOSE (L400)

90445-10M43-00

$5.96

17

CLAMP

90465-10098-00

$1.68

18

BOLT(3RV)

97014-06035-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

CLAMP(6R8)

90464-10M38-00

Unavailable

21

REED VALVE ASSY

61X-13610-01-00

Unavailable

22

. REED SET

61X-W0004-00-00

Unavailable

23

. GASKET, VALVE SEAT

61X-13621-A0-00

Unavailable

24

COVER, CARBURETOR 1

61X-14283-01-00

$42.41

25

GROMMET

6K8-14435-00-00

$11.35

26

BOLT, WITH WASHER

90119-05M02-00

$3.46

27

BOLT, WITH WASHER

90119-05M01-00

Unavailable

28

COVER, CARBURETOR 2

6R8-14284-00-98

Unavailable

29

NIPPLE, HOSE

6E5-11372-01-00

$9.99

30

. PIPE, JOINT

6H1-14485-00-00

$6.64

31

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.29

32

ELEMENT, AIR CLEANER

6M6-14451-00-00

Unavailable

33

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

34

WASHER, PLAIN (646)

92990-05600-00

Unavailable

35

GASKET, AIR COOLER COVER 1

6M6-13674-A1-00

$4.99

36

PLATE

6R7-14255-00-00

Unavailable
