1994 Yamaha Wave Runner Iii GP (WRA700S) Fuel Diagram

← All diagrams

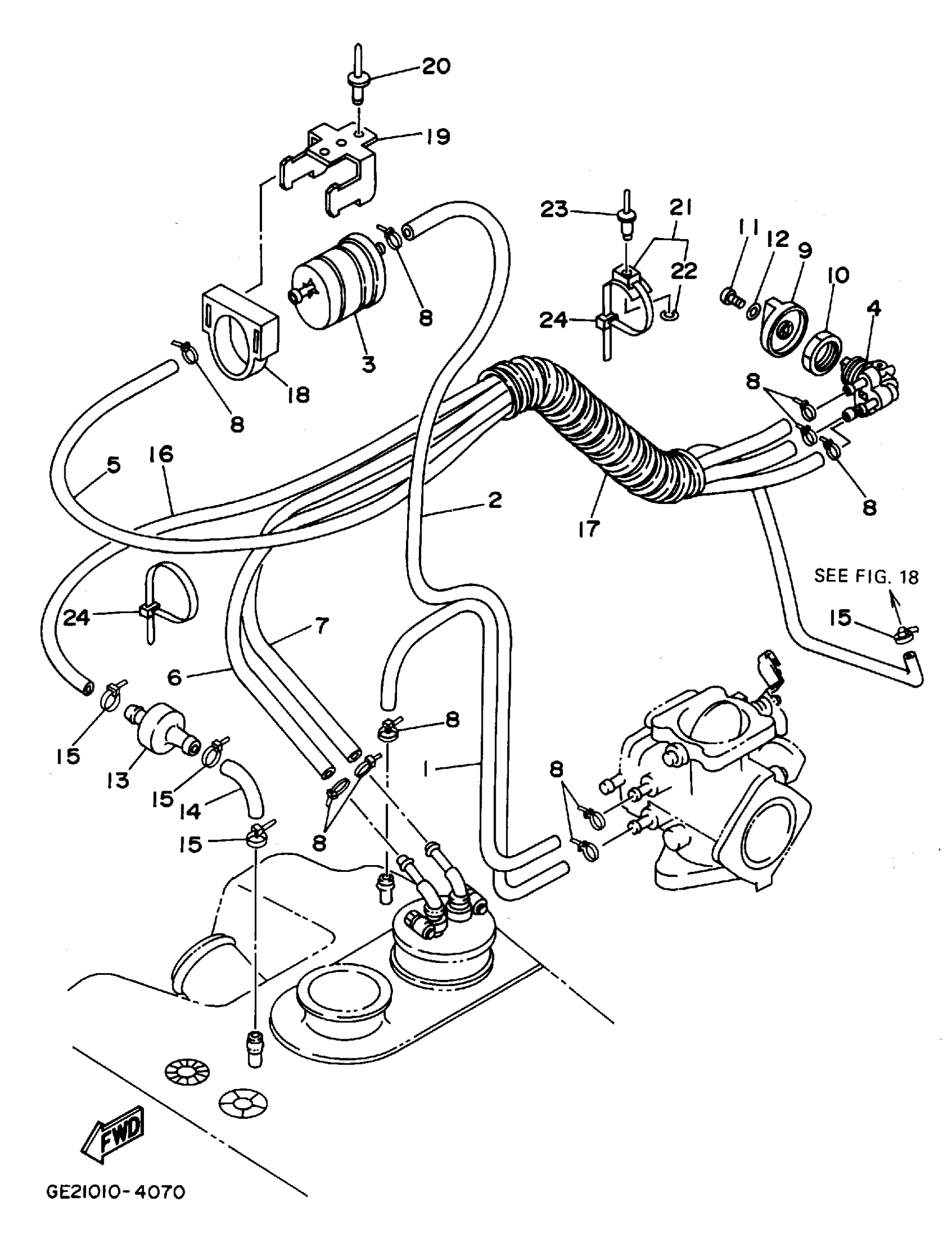

Find the part on the Fuel diagram for your 1994 Yamaha Wave Runner Iii GP (WRA700S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Wave Runner Iii GP (WRA700S) Fuel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE (L1040)

90445-10MA9-00

1
Out of stock

2

HOSE (L400)

90445-10M43-00

1
Out of stock

3

FILTER ASSY

6K8-24560-21-00

1
Out of stock

4

FUEL COCK ASSY 1

6K8-24500-03-00

1
Out of stock

5

HOSE (L1700)

90445-10M87-00

1
Out of stock

6

HOSE (L1700)

90445-10M87-00

1
Out of stock

7

HOSE (L1700)

90445-10M87-00

1
Out of stock

8

CLAMP

90465-10098-00

1
Out of stock

9

LEVER, COCK

6K8-24524-10-00

1
Out of stock

10

NUT

90170-22M11-00

1
Out of stock

11

SCREW, PAN HEAD (E56)

98580-04010-00

1
Out of stock

12

WASHER, PLAIN (646)

92990-04600-00

1
Out of stock

13

CHECK VALVE

EU0-67767-31-00

1
Out of stock

14

HOSE, AIR VENT 1

EU0-67856-00-00

1
Out of stock

15

CLAMP

90465-10098-00

1
Out of stock

16

HOSE, AIR VENT 4

FJ0-67856-30-00

1
Out of stock

17

TUBE

FJ0-6773D-00-00

1
Out of stock

18

HOLDER

EU0-67817-00-00

1
Out of stock

19

BRACKET, FUEL FILTER

FN8-67816-00-00

1
Out of stock

20

RIVET (EU0)

90267-48938-00

1
Out of stock

21

CLAMP COMP (EU0)

90600-91736-00

—
Out of stock

22

. WASHER, PLAIN

90201-05925-00

1
Out of stock

23

RIVET, BLIND

90267-48802-00

1
Out of stock

24

BAND (EU0)

90601-20009-00

1
Out of stock
