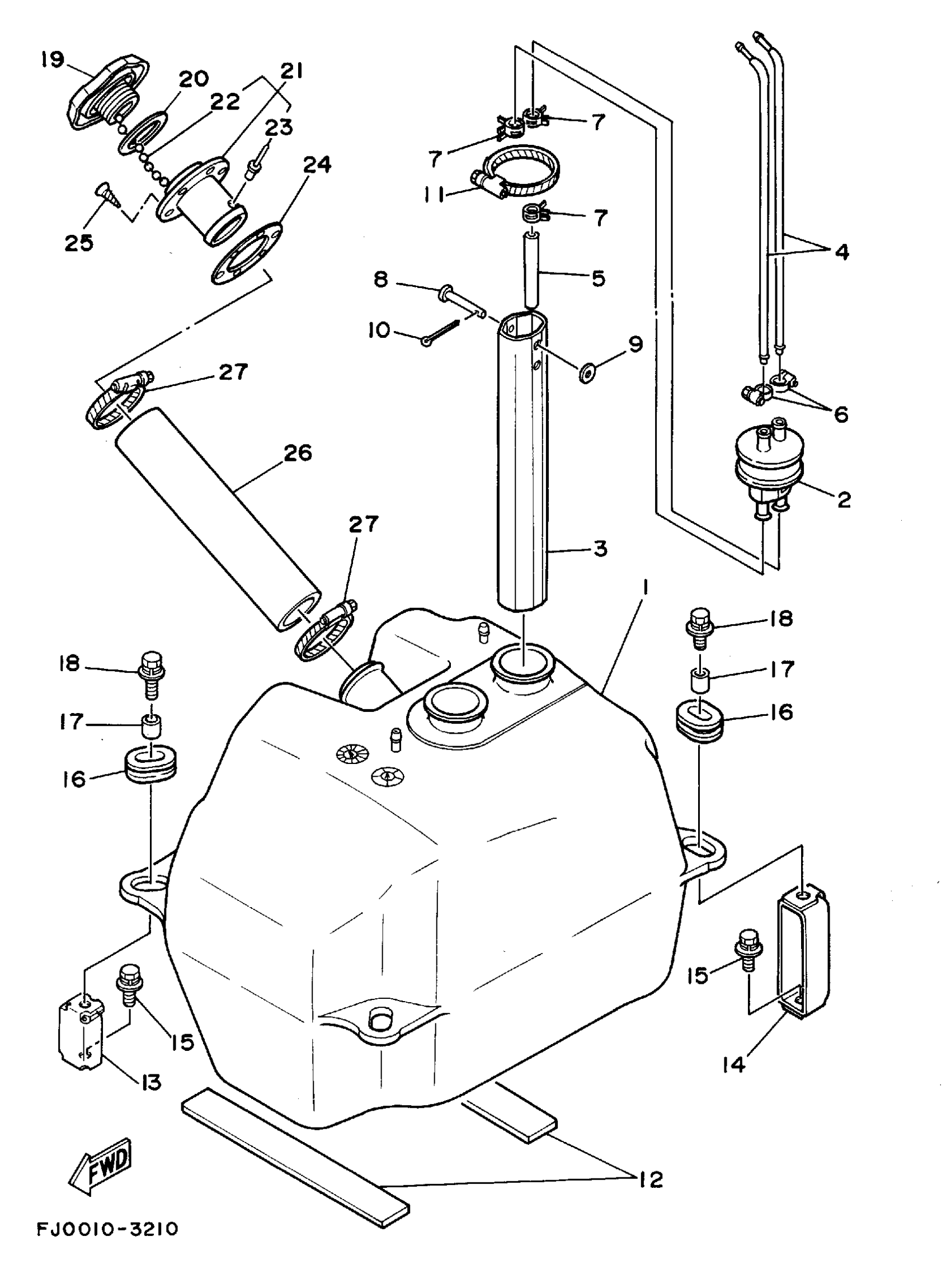

Yamaha WRA700S (WAVE RUNNER III GP) 1994 FUEL TANK Diagram
#
Description
Price
1
TANK,FUEL
FJ0-67711-01-00
Unavailable
2
PIPE, JOINT
FJ0-67713-01-00
Unavailable
3
SLEEVE 1
FJ0-67716-01-00
Unavailable
4
PIPE, SUCTION 3
FJ0-67714-02-00
Unavailable
5
HOSE (L198)
90445-11293-00
$9.49
6
BAND, HOSE 11
90601-11062-00
Unavailable
7
CLIP (7K7)
90467-11044-00
$8.49
8
PIN (FJ0)
91790-05040-00
$7.49
9
WASHER, PLAIN (646)
92990-05600-00
$0.80
10
PIN. COTTER
91490-16010-00
Unavailable
11
BAND, HOSE 62
90601-162U5-00
Unavailable
12
MAT 2
EU0-U7593-30-00
Unavailable
13
FIX FUEL TANK
EU0-67777-03-00
Unavailable
14
FIX, FUEL TANK
FJ0-67777-00-00
Unavailable
15
BOLT, WITH WASHER
90119-08903-00
Unavailable
16
GROMMET
90480-21904-00
Unavailable
17
COLLAR
90387-08906-00
Unavailable
18
BOLT, WITH WASHER
90119-08916-00
Unavailable
19
CAP, FUEL FILLER
EU0-67831-32-00
Unavailable
20
PACKING 1
EU0-67832-00-00
Unavailable
21
SOCKET
EU0-W6783-30-00
Unavailable
22
. CHAIN BALL
EU0-67835-00-00
Unavailable
23
. RIVET, BLIND
90267-40935-00
Unavailable
24
PACKING, FUEL FILLER
EU0-67834-00-00
Unavailable
25
SCREW, FLAT HEAD TAPPING
EU0-U7869-00-00
Unavailable
26
HOSE
GA9-U7844-00-00
Unavailable
27
BAND, HOSE 55
90601-155U4-00
Unavailable
