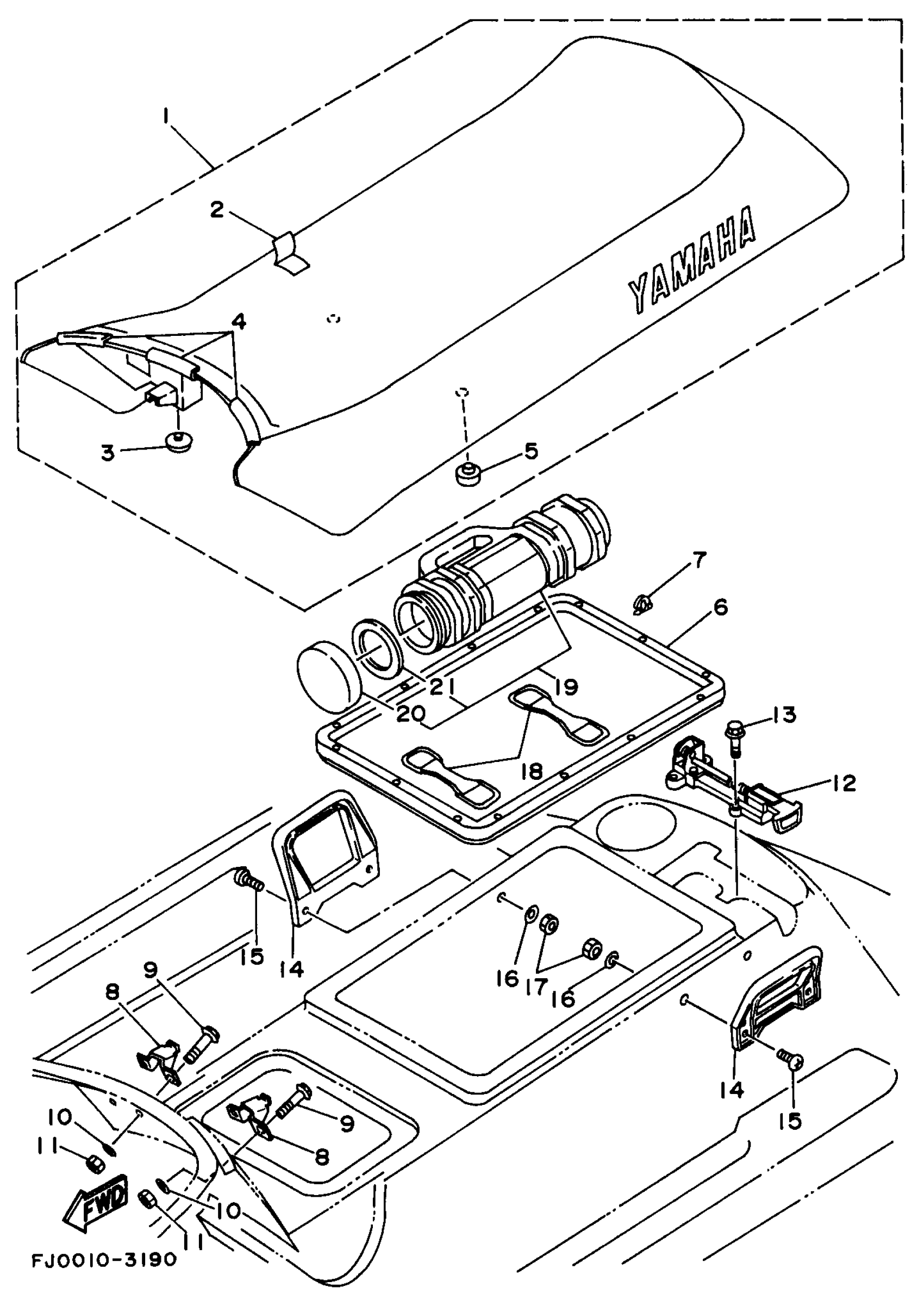

Yamaha WRA650U (WAVE RUNNER III) 1996 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

GA9-U371A-40-00

Unavailable

2

. COVER, SEAT

GA9-U370B-40-00

Unavailable

3

STOPPER MAIN STAND

278-27114-00-00

$8.99

4

. SEAL

GA9-U371K-00-00

Unavailable

5

PAD, SEAT

1L9-24741-00-00

$9.99

6

PACKING 2

FJ0-62664-00-00

Unavailable

7

RIVET

90269-06916-00

Unavailable

8

STAY, SEAT 1

FJ0-63784-00-00

Unavailable

9

BOLT, WITH WASHER

90119-06900-00

Unavailable

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

NUT, FLANGE

95780-06300-00

Unavailable

12

SEAT, LOCK ASSY

FJ0-63850-31-00

Unavailable

13

BOLT,WITH WASHER

90119-06940-00

Unavailable

14

GRIP, ASSIST

FJ0-63771-30-00

Unavailable

15

SCREW

90149-08950-00

Unavailable

16

WASHER, PLAIN

92990-08200-00

Unavailable

17

. NUT, SELF-LOCKING

95720-08300-00

Unavailable

18

BAND,WATER LOCK

EU0-U756E-00-00

Unavailable

18

BAND,WATER LOCK

EU0-U756E-00-00

Unavailable

19

CASE 2 ASSEMBLY

EW2-65920-00-00

Unavailable

20

. CAP, CASE

EW2-65912-30-00

Unavailable

21

. PACKING, CASE

EW2-65913-00-00

Unavailable
