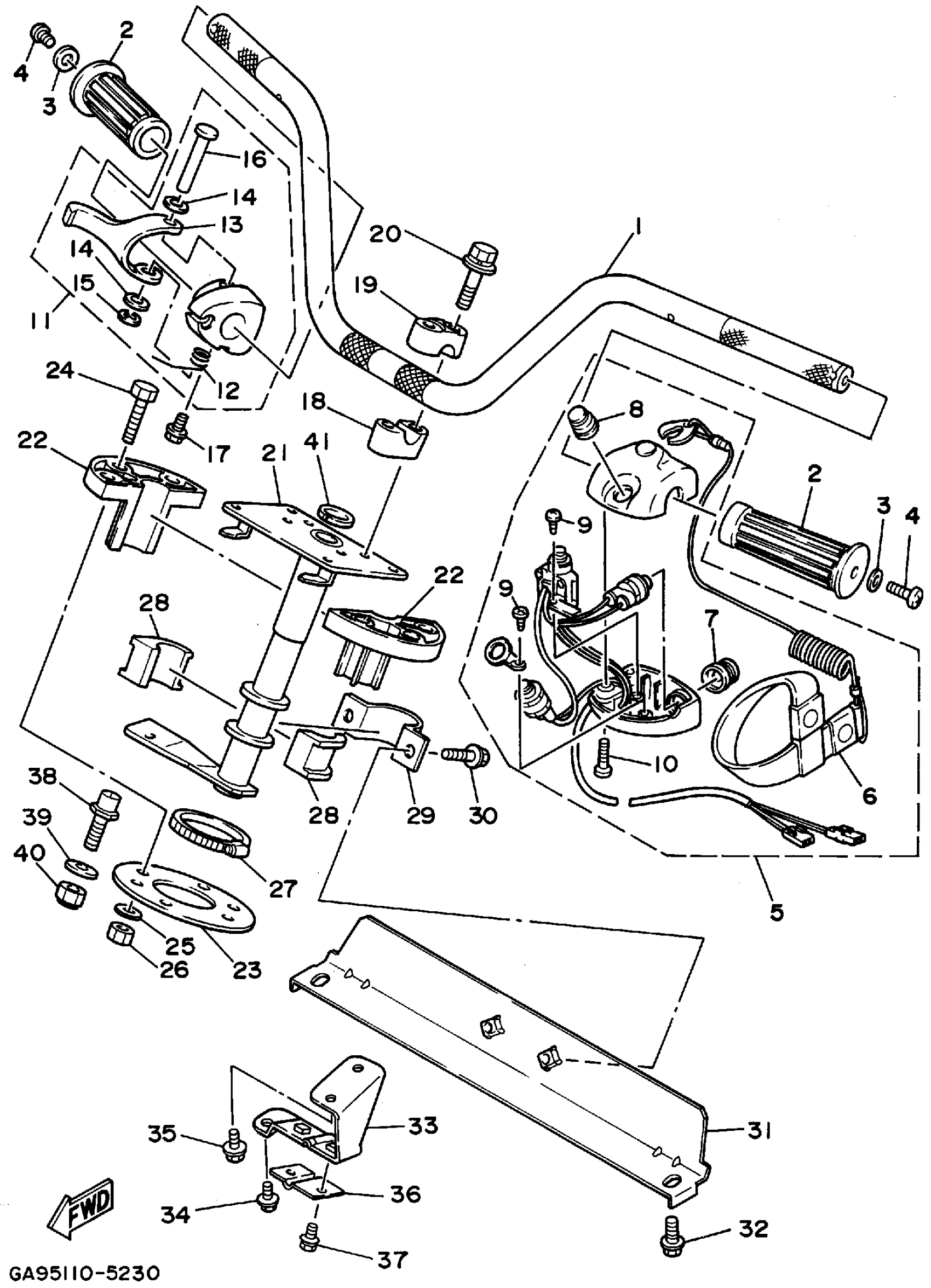

Yamaha WRA650T (WAVE RUNNER III) 1995 STEERING 1 Diagram
#
1
HANDLE
GA9-U1552-01-00
Unavailable
2
GRIP, HANDLE
EU0-26241-01-00
Unavailable
3
WASHER, PLATE
90201-05800-00
Unavailable
4
SCREW,TRASS HEAD (FJ0)
90149-05959-00
$7.49
5
SWITCH BOX ASSY
GA7-68310-01-00
Unavailable
6
. LANYARD, STOP SWITCH
EW2-68348-00-00
Unavailable
7
. STOP BUTTON COMP
FK7-68312-02-00
Unavailable
8
. START BUTTON COMP
FK7-68313-02-00
Unavailable
9
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
10
SCREW, PANHEAD (A93)
98580-05525-00
$2.00
11
THROTTLE LEVER ASSY
EW2-67250-02-00
Unavailable
12
. SPRING
EW2-67256-00-00
Unavailable
13
. LEVER, THROTTLE
EW2-67255-00-00
Unavailable
14
WASHER, PLAIN (646)
92990-05600-00
$0.80
15
CIRCLIP (EU0)
99080-04600-00
Unavailable
16
. SHAFT
EW2-67257-01-00
Unavailable
17
SCREW, WITH WASHER
90159-05900-00
Unavailable
18
HOLDER, HANDLE UPPER
EU0-23814-02-00
Unavailable
19
HOLDER, HANDLE UPPER
EU0-23814-32-00
Unavailable
20
BOLT, WITH WASHER
90119-08925-00
Unavailable
21
COLUMN, STEERING
FJ0-61541-01-00
Unavailable
22
BEARING, COLUMN
EU0-61417-00-00
Unavailable
23
SEAL, RUBBER
EU0-61439-30-00
Unavailable
24
BOLT(JF7)
97080-06030-00
Unavailable
25
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
26
NUT, SELF-LOCKING
95720-06300-00
Unavailable
27
BAND, HOSE 42
90601-142U6-00
Unavailable
28
BEARING, STEERING
8F3-23812-00-00
Unavailable
29
JOINT, BEARING
EU0-61588-00-00
Unavailable
30
BOLT, WITH WASHER
90119-08903-00
Unavailable
31
BRACKET, BEARING
FJ0-61433-00-00
Unavailable
32
BOLT, WITH WASHER
90119-08903-00
Unavailable
33
BRACKET, STOPPER CABLE
GE1-61467-00-00
Unavailable
34
BOLT, WITH WASHER
90119-06926-00
Unavailable
35
BOLT, WITH WASHER
90119-08903-00
Unavailable
36
STOPPER, CABLE
GE1-61468-01-00
Unavailable
37
BOLT, WITH WASHER
90119-06926-00
Unavailable
38
PIN, STOPPER
EU0-61314-30-00
Unavailable
39
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
40
NUT, NYLON (FN8)
95720-10300-00
Unavailable
41
PACKING, STEERING COLUMN
EU0-61469-00-00
Unavailable
