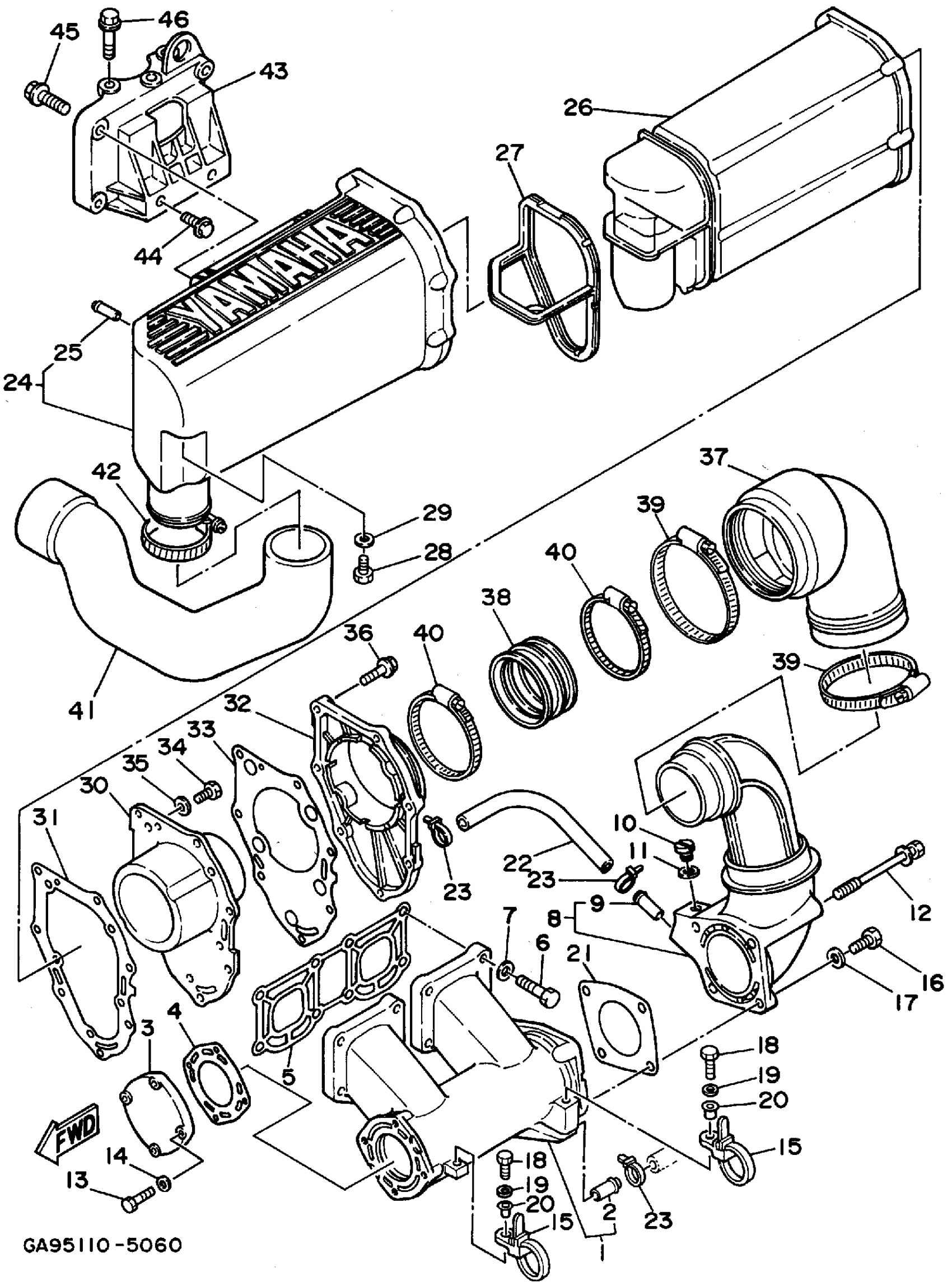

Yamaha WRA650T (WAVE RUNNER III) 1995 EXHAUST 1 Diagram
#
1
MUFFLER 1
6R8-14711-00-9M
Unavailable
2
. NIPPLE
6K8-51129-00-00
Unavailable
3
PROTECTOR, MUFFLER 1
6M6-14718-01-8S
Unavailable
4
GASKET, MUFFLER DAMPER 1
6M6-14739-A2-00
Unavailable
5
GASKET, EXHAUST PIPE
6M6-14613-A0-00
Unavailable
6
BOLT
97013-08035-00
$5.60
7
.. WASHER, PLATE
92990-08600-00
Unavailable
8
RING, JOINT
61L-14712-00-00
Unavailable
9
. NIPPLE
6K8-51129-00-00
Unavailable
10
PLUG, STRAIGHT SCREW
90340-08002-00
Unavailable
11
GASKET
90430-08003-00
Unavailable
12
BOLT, WITH WASHER
97513-08590-00
Unavailable
13
BOLT
90101-06M27-00
Unavailable
14
WASHER, PLAIN (646)
92990-06600-00
$2.80
15
CLAMP
90465-12M53-00
Unavailable
16
BOLT (682)
97013-08025-00
Unavailable
17
.. WASHER, PLATE
92990-08600-00
Unavailable
18
BOLT(7U8)
97080-06020-00
Unavailable
19
WASHER, PLAIN (646)
92990-06600-00
$2.80
20
COLLAR
90387-06M05-00
Unavailable
21
GASKET, MUFFLER DAMPER 2
6R7-14749-A1-00
Unavailable
22
HOSE (L380)
90445-14M25-00
Unavailable
23
CLAMP
90465-10098-00
Unavailable
24
MUFFLER 2
6R7-14721-00-8S
Unavailable
25
. PIPE, JOINT
6R7-14485-00-00
Unavailable
26
SILENCER, EXHAUST
6R7-14753-00-8S
Unavailable
27
SEAL, RUBBER 1
6R7-15761-00-00
Unavailable
28
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
29
WASHER, PLAIN (646)
92990-06600-00
$2.80
30
DIFFUSER
6R7-14785-00-8S
Unavailable
31
. GASKET, SILENCER
6R7-14755-A0-00
Unavailable
32
OUTER COVER, EXHAUST
6R7-41113-00-8S
Unavailable
33
. GASKET, EXHAUST OUTER COVER
6R7-41114-A0-00
Unavailable
34
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
35
WASHER, PLAIN (646)
92990-06600-00
$2.80
36
BOLT, WITH WASHER(63M)
97513-06530-00
Unavailable
37
JOINT, EXHAUST 1
61L-14615-00-00
Unavailable
38
JOINT, EXHAUST 2
61L-14625-00-00
Unavailable
39
CLAMP, HOSE
90460-90M11-00
Unavailable
40
CLAMP, HOSE(6R7)
90460-70M16-00
Unavailable
41
PIPE, OUTLET
6R8-14752-00-00
Unavailable
42
HOSE CLAMP ASSY
90450-94001-00
Unavailable
43
STAY, MUFFLER 1
6M6-14771-00-00
Unavailable
44
BOLT WASHER BASED HEAD (6M6)
90105-10M49-00
Unavailable
45
BOLT, WASHER BASED
90105-10M45-00
Unavailable
46
BOLT, WITH WASHER
90119-10M72-00
Unavailable
