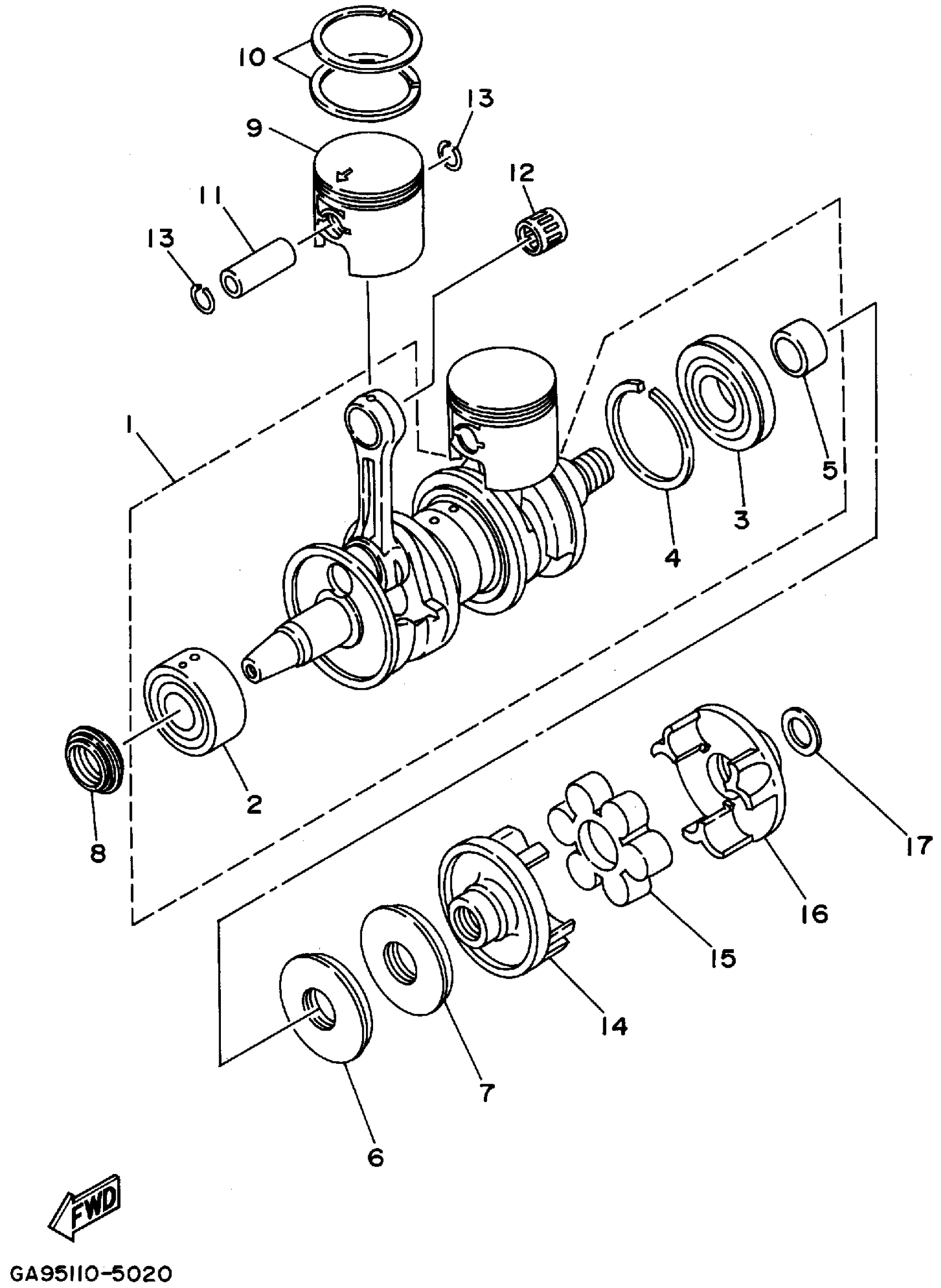

Yamaha WRA650T (WAVE RUNNER III) 1995 CRANKSHAFT - PISTON Diagram

#

Description

Price

1

CRANKSHAFT ASSY

62T-11400-02-00

Unavailable

2

BEARING(8AB)

93305-30601-00

$193.99

3

BEARING(6M6)

93306-307U3-00

Unavailable

4

CIRCLIP (834)

93440-80023-00

$15.99

5

COLLAR, DRIVE SHAFT

6M6-45526-00-00

Unavailable

6

. OIL SEAL

93102-36M33-00

Unavailable

7

. OIL SEAL

93101-36M46-00

Unavailable

8

. OIL SEAL

93103-32M01-00

Unavailable

9

PISTON (STD)

6M6-11631-01-93

Unavailable

9

PISTON (0.50MM O/S)

6M6-11636-01-00

Unavailable

10

PISTON RING SET (STD)

6M6-11601-00-00

Unavailable

10

PISTON RING SET (0.50MM O/S)

6M6-11601-20-00

Unavailable

11

PIN, PISTON

8H8-11633-00-00

$36.99

12

BEARING, CYLINDRICAL

93310-320U3-00

Unavailable

13

CIRCLIP (8H0)

93450-21053-00

$3.85

14

FLANGE, COUPLING

6M6-45813-32-8P

Unavailable

15

RUBBER SHAFT COUPLING

61X-4581J-00-00

Unavailable

16

FLANGE, COUPLING

6M6-45813-22-8P

Unavailable

17

WASHER, PLATE(61X)

90201-24M02-00

Unavailable
