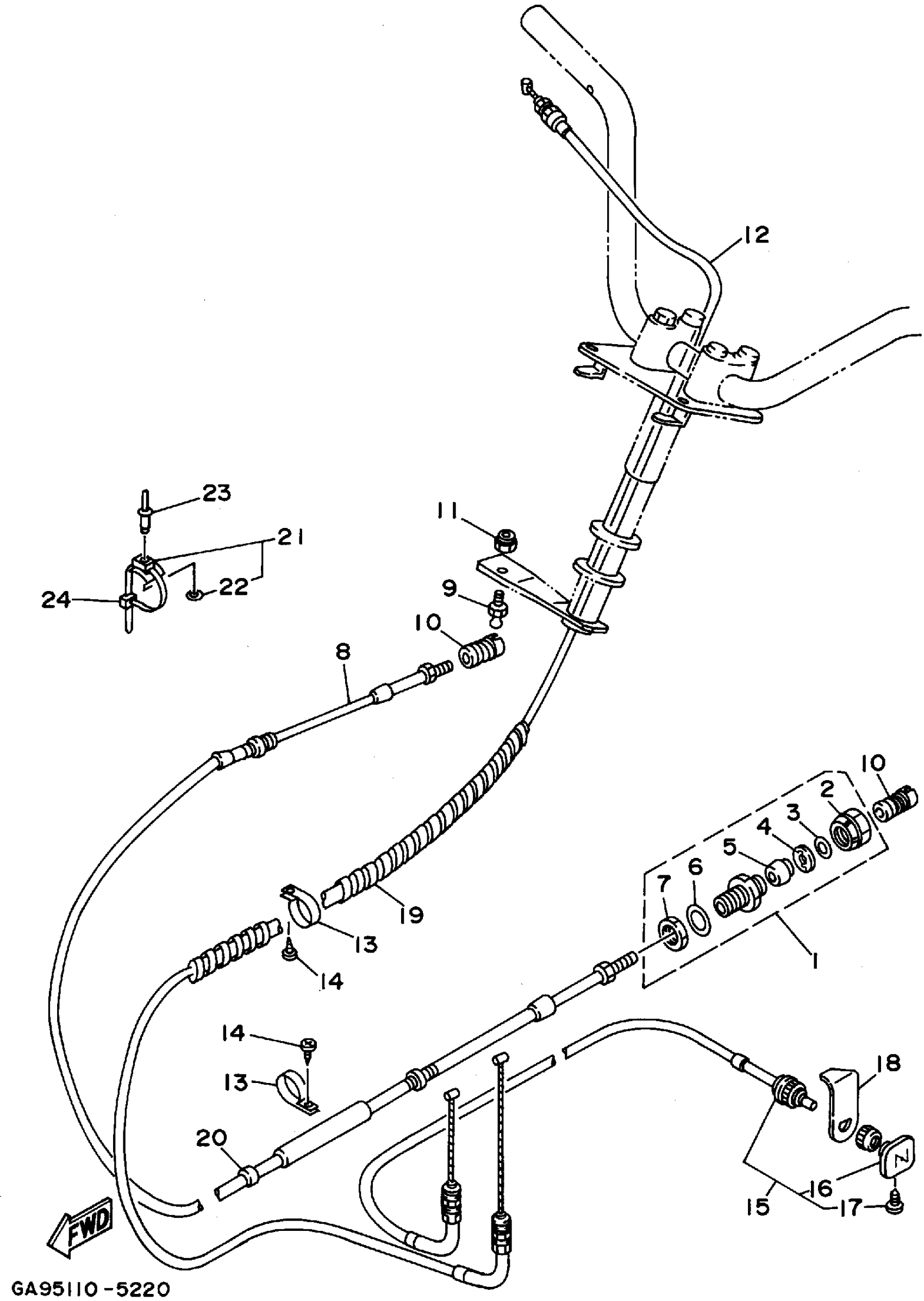

Yamaha WRA650T (WAVE RUNNER III) 1995 CONTROL CABLE Diagram

#

Description
Price

1

CONNECTOR, CABLE

EU0-67267-00-00

Unavailable

2

. CAP

EU0-62694-00-00

Unavailable

3

. WASHER 30

EU0-61446-00-00

Unavailable

4

. STOPPER

EU0-61486-00-00

Unavailable

5

. SEAL, PIPE 30

EU0-61435-00-00

Unavailable

6

. PACKING (C)

EU0-61438-00-00

Unavailable

7

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

8

CABLE, STEERING

FJ0-61481-00-00

Unavailable

9

SHAFT, JOINT BALL

EU0-U1461-10-00

Unavailable

10

SHAFT,JOINT BALL

EU0-61461-30-00

Unavailable

11

NUT, FLANGE

95780-06300-00

Unavailable

12

CABLE, THROTTLE 1

EU0-U7252-01-00

Unavailable

13

CLIP, NYLON 17

90600-91728-00

Unavailable

14

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

15

CABLE ASSY, CHOKE

GA9-U7242-32-00

Unavailable

16

KNOB, CHOKE

GP7-U724C-00-00

Unavailable

17

SCREW, KNOB

GP7-U724D-00-00

Unavailable

18

PLATE, CHOKE

FJ0-67243-00-00

Unavailable

19

SPIRAP 11

90699-36U01-00

Unavailable

20

PACKING, HOSE 2

FJ0-67578-00-00

Unavailable

21

CLAMP COMP (EU0)

90600-91736-00

Unavailable

22

. WASHER, PLAIN

90201-05925-00

Unavailable

23

RIVET, BLIND

90267-48802-00

Unavailable

24

BAND (EU0)

90601-20009-00

Unavailable
