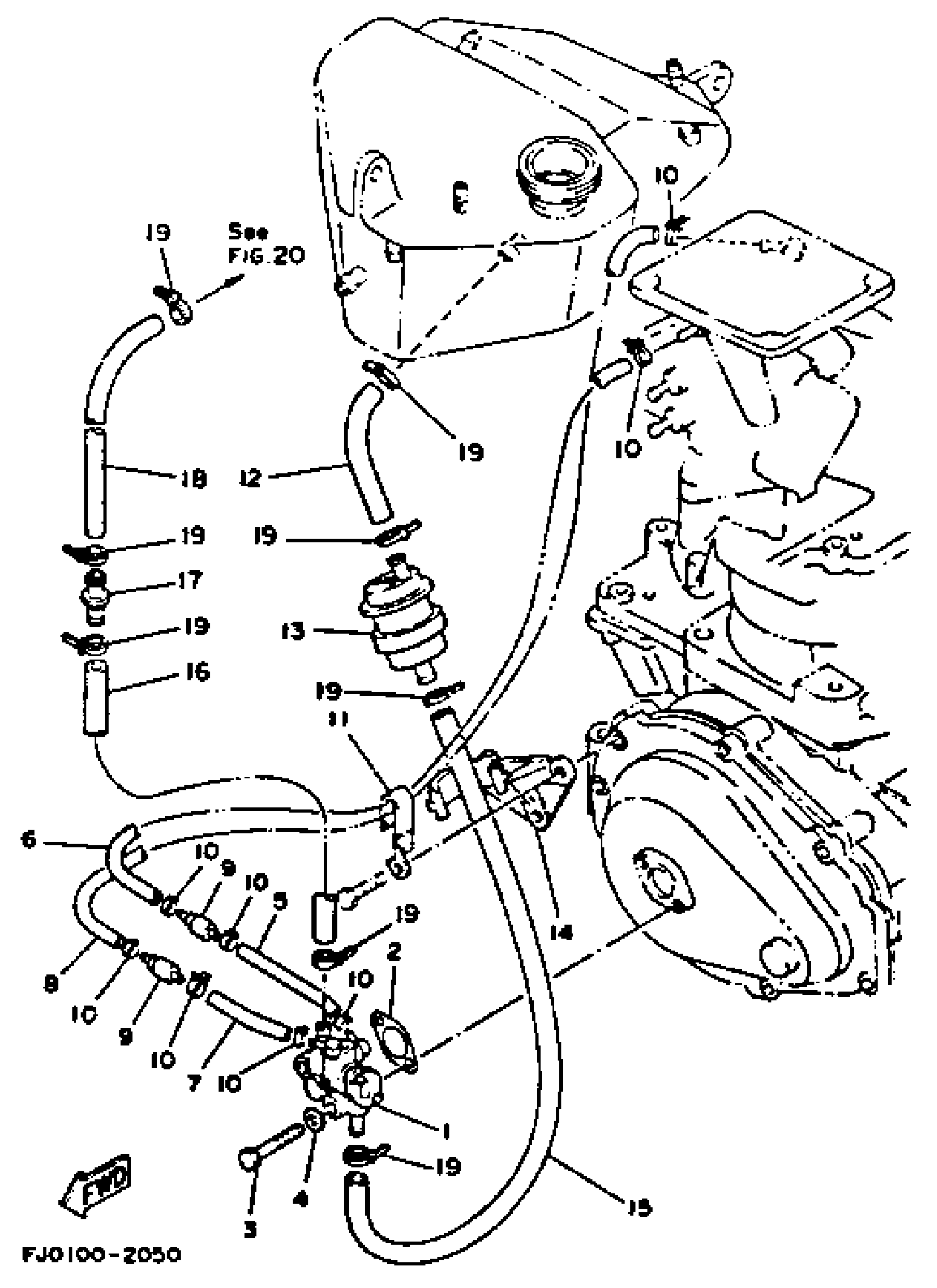

Yamaha WRA650RA (WAVE RUNNER III) 1993 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSEMBLY

6R8-13200-00-00

Unavailable

2

. GASKET, PUMP CASE

6R8-13116-A0-00

Unavailable

3

BOLT(J52)

97080-06035-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

HOSE(62T)

90446-07M48-00

Unavailable

6

HOSE(62T)

90446-07M48-00

Unavailable

7

HOSE(62T)

90446-07M48-00

Unavailable

8

HOSE(62T)

90446-07M48-00

Unavailable

9

VALVE, CHECK

6R3-13183-10-00

Unavailable

10

CLAMP

90465-10098-00

Unavailable

11

CLAMP

90465-08M37-00

Unavailable

12

HOSE (6R8)

90445-11M25-00

Unavailable

13

SUB TANK, OIL

6R8-21733-00-00

Unavailable

14

HOLDER, OIL SUB TANK

6R8-21734-00-00

Unavailable

15

HOSE (6R8)

90445-11M25-00

Unavailable

16

HOSE (6R8)

90446-12M27-00

Unavailable

17

PIPE, JOINT 2

6R8-24377-00-00

Unavailable

18

HOSE (L360)

90445-11M15-00

Unavailable

19

CLAMP

90465-10098-00

Unavailable
