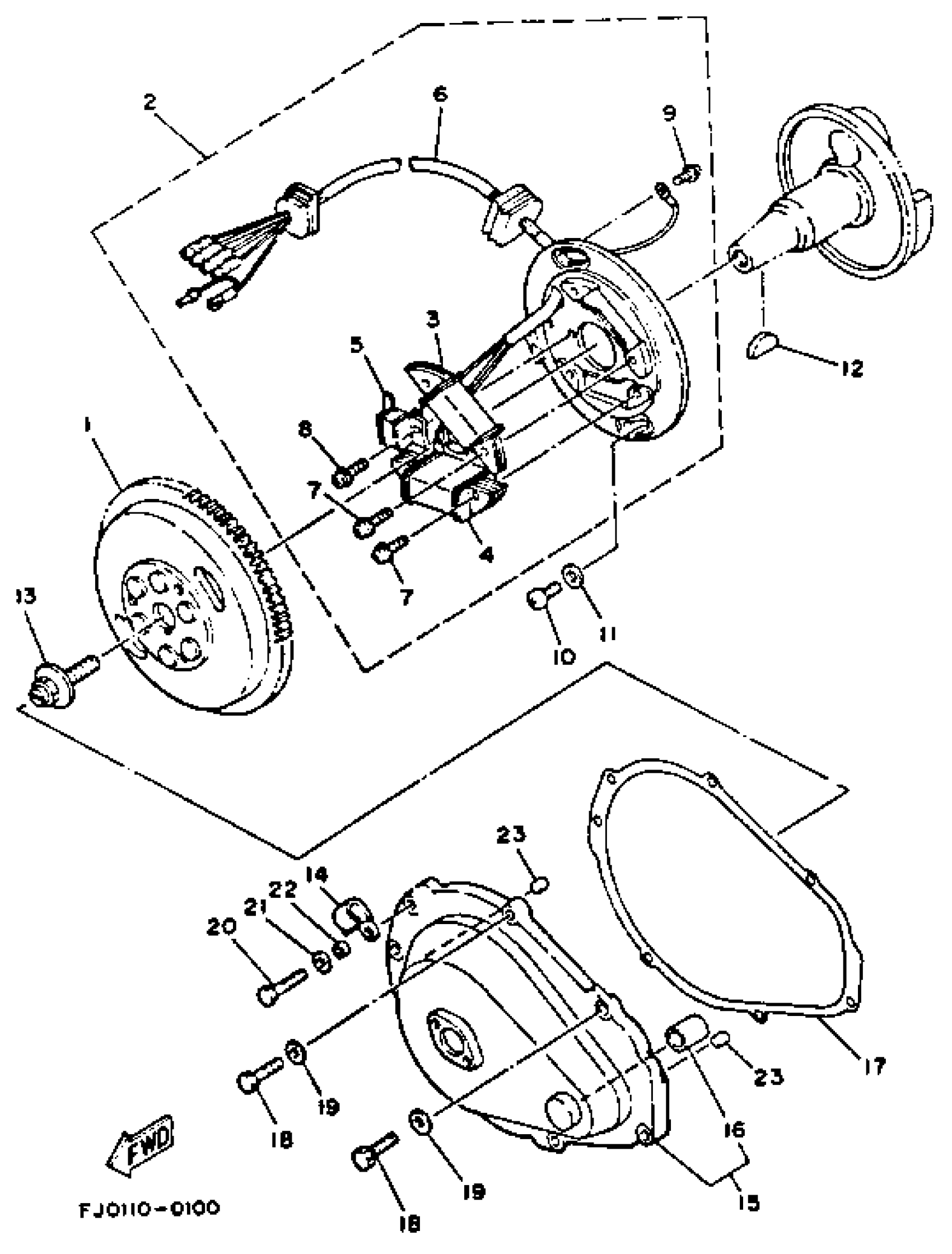

Yamaha WRA650RA (WAVE RUNNER III) 1993 GENERATOR Diagram
#
Description
Price
1
ROTOR ASSEMBLY
6R7-85550-00-00
Unavailable
2
BASE ASSEMBLY
6R8-85560-00-00
Unavailable
3
. COIL, CHARGE
6M6-85520-00-00
Unavailable
4
. COIL, LIGHTING
6M6-85533-00-00
Unavailable
5
. COIL, PULSER
6M6-85580-00-00
Unavailable
6
. LEAD WIRE ASSEMBLY
6R8-85515-00-00
Unavailable
7
. SCREW, WITH WASHER
97902-05125-00
Unavailable
8
. SCREW, WITH WASHER
97902-04122-00
Unavailable
10
SCREW, PAN HEAD
98580-06016-00
Unavailable
13
BOLT
90109-10M47-00
Unavailable
14
CLAMP
90465-08028-00
Unavailable
15
COVER, FLYWHEEL
6R8-81337-00-8S
Unavailable
16
. BUSH, SOLID
90380-12M29-00
Unavailable
17
. GASKET, HOLE COVER
6M6-81365-A0-00
Unavailable
18
BOLT
90101-06M27-00
Unavailable
20
BOLT(JF7)
97080-06030-00
Unavailable
22
COLLAR
90387-06704-00
Unavailable
23
PIN, DOWEL (614)
93606-12019-00
Unavailable
