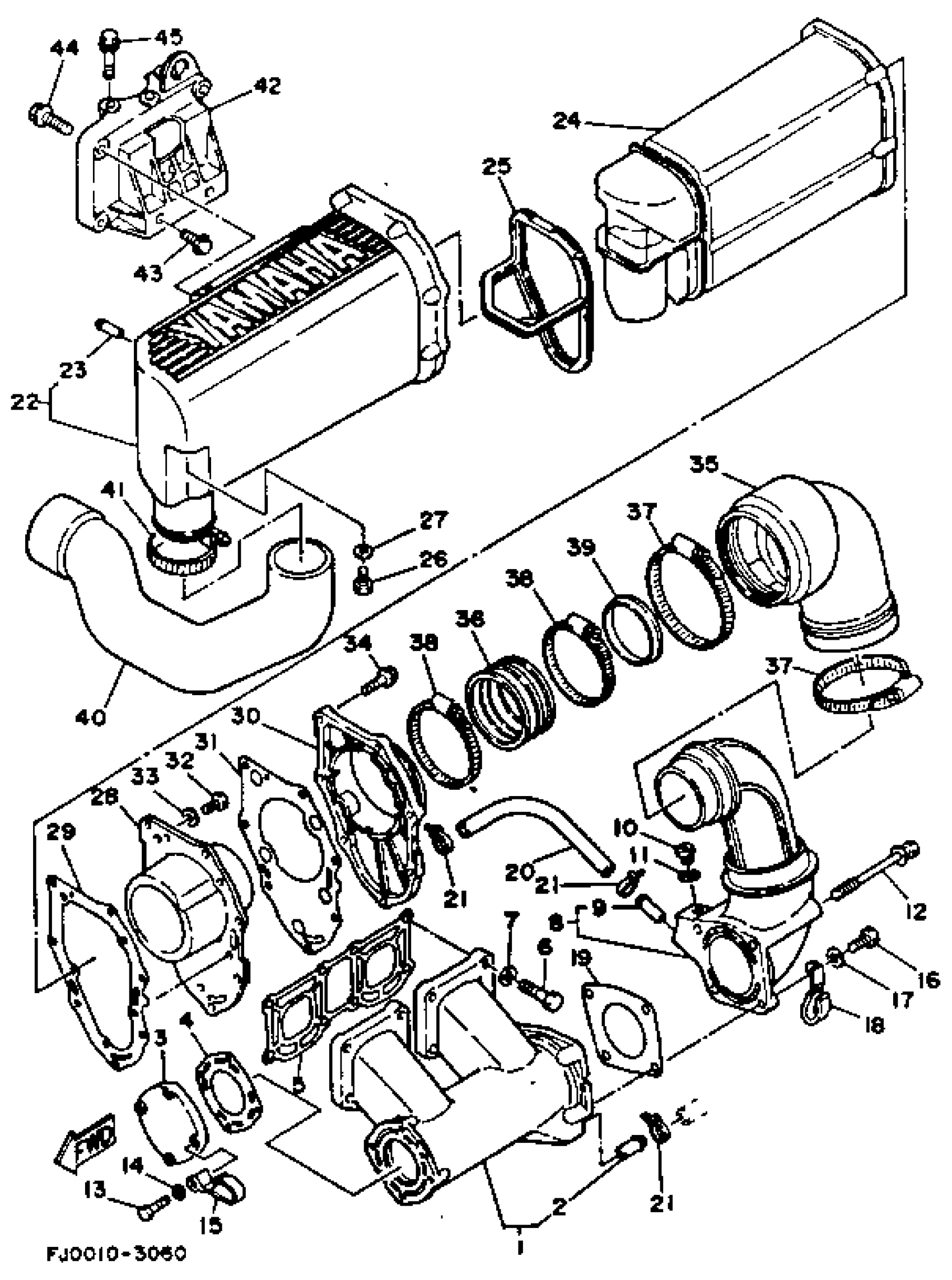

Yamaha WRA650R (WAVE RUNNER III) 1993 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

6R7-14711-01-9M

$507.56

2

. NIPPLE

6K8-51129-00-00

$9.62

3

PROTECTOR, MUFFLER 1

6M6-14718-01-8S

$56.99

4

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

$12.06

5

GASKET, EXHAUST PIPE

6M6-14613-A0-00

$9.62

6

BOLT

97013-08035-00

$4.48

7

.. WASHER, PLATE

92990-08600-00

$2.17

8

RING,JOINT

99999-02326-00

Unavailable

9

. NIPPLE

6K8-51129-00-00

$9.62

10

PLUG, STRAIGHT SCREW

90340-08002-00

$10.69

11

GASKET

90430-08003-00

$1.08

12

BOLT, WITH WASHER

90119-08M38-00

Unavailable

13

BOLT

90101-06M27-00

$3.14

14

WASHER, PLAIN (646)

92990-06600-00

$1.84

15

CLAMP

90465-08M42-00

Unavailable

16

BOLT (682)

97013-08025-00

Unavailable

17

.. WASHER, PLATE

92990-08600-00

$2.17

18

CLAMP

90465-08M40-00

Unavailable

19

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

$13.58

20

HOSE (L380)

90445-14M25-00

Unavailable

21

CLAMP

90465-10098-00

$1.68

22

MUFFLER 2

6R7-14721-00-8S

$363.62

23

. PIPE, JOINT

6R7-14485-00-00

$11.99

24

SILENCER, EXHAUST

6R7-14753-00-8S

$203.02

25

SEAL, RUBBER 1

6R7-15761-00-00

$27.26

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

27

WASHER, PLAIN (646)

92990-06600-00

$1.84

28

DIFFUSER

6R7-14785-00-8S

$104.53

29

. GASKET, SILENCER

6R7-14755-A0-00

$17.35

30

OUTER COVER, EXHAUST

6R7-41113-00-8S

$109.08

31

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

$21.12

32

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

33

WASHER, PLAIN (646)

92990-06600-00

$1.84

34

BOLT, WITH WASHER(63M)

97513-06530-00

$3.98

35

JOINT, EXHAUST 1

61L-14615-00-00

$99.53

36

JOINT, EXHAUST 2

61L-14625-00-00

$75.81

37

CLAMP, HOSE

90460-90M11-00

$42.60

38

CLAMP, HOSE(6R7)

90460-70M16-00

Unavailable

39

JOINT, EXHAUST 3

6R7-14635-00-00

Unavailable

40

PIPE, OUTLET

6R8-14752-00-00

Unavailable

41

HOSE CLAMP ASSY

90450-94001-00

$14.38

42

STAY, MUFFLER 1

6M6-14771-00-00

$98.47

43

BOLT WASHER BASED HEAD (6M6)

90105-10M49-00

Unavailable

44

BOLT, WASHER BASED

90105-10M45-00

$5.45

45

BOLT, WITH WASHER

90119-10M72-00

$5.55
