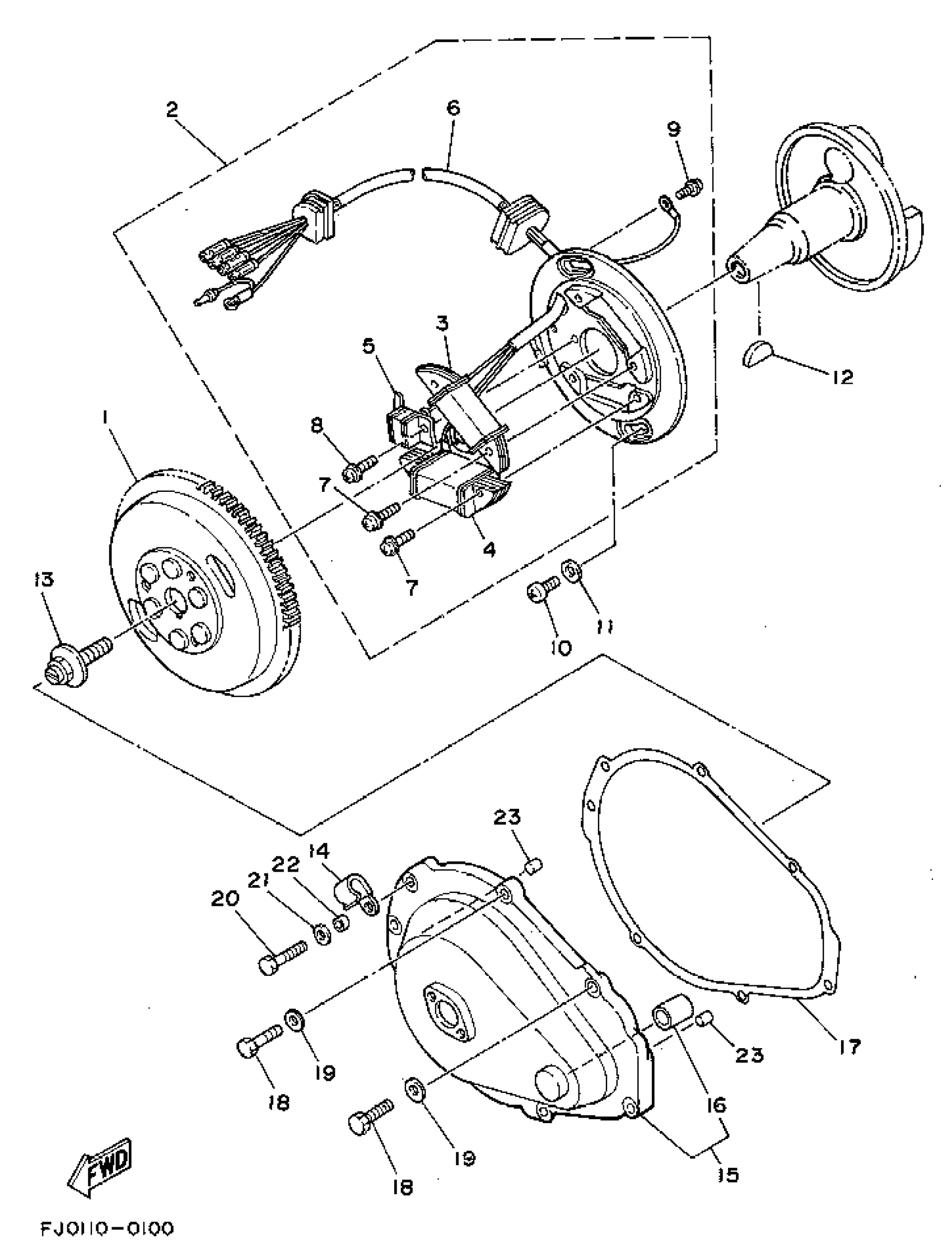

Yamaha WRA650Q (WAVE RUNNER III) 1992 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSEMBLY

6R7-85550-00-00

Unavailable

2

BASE ASSEMBLY

6R8-85560-00-00

Unavailable

3

. COIL, CHARGE

6M6-85520-00-00

Unavailable

4

. COIL, LIGHTING

6M6-85533-00-00

Unavailable

5

. COIL, PULSER

6M6-85580-00-00

$169.68

6

. LEAD WIRE ASSEMBLY

6R8-85515-00-00

Unavailable

7

. SCREW, WITH WASHER

97902-05125-00

$2.00

8

. SCREW, WITH WASHER

97902-04122-00

$6.36

9

SCREW, PAN HEAD (713)

98580-04008-00

$4.24

10

SCREW, PAN HEAD

98580-06016-00

$2.88

11

WASHER, PLAIN (646)

92990-06600-00

$1.84

12

KEY, WOODRUFF

90280-05001-00

$11.00

13

BOLT

90109-10M47-00

$29.99

14

CLAMP

90465-08028-00

$4.31

15

COVER, FLYWHEEL

6R8-81337-00-8S

$110.59

16

. BUSH, SOLID

90380-12M29-00

Unavailable

17

. GASKET, HOLE COVER

6M6-81365-A0-00

$37.49

18

BOLT

90101-06M27-00

$3.14

19

WASHER, PLAIN (646)

92990-06600-00

$1.84

20

BOLT(JF7)

97080-06030-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

$1.84

22

COLLAR

90387-06704-00

Unavailable

23

PIN, DOWEL (614)

93606-12019-00

Unavailable
