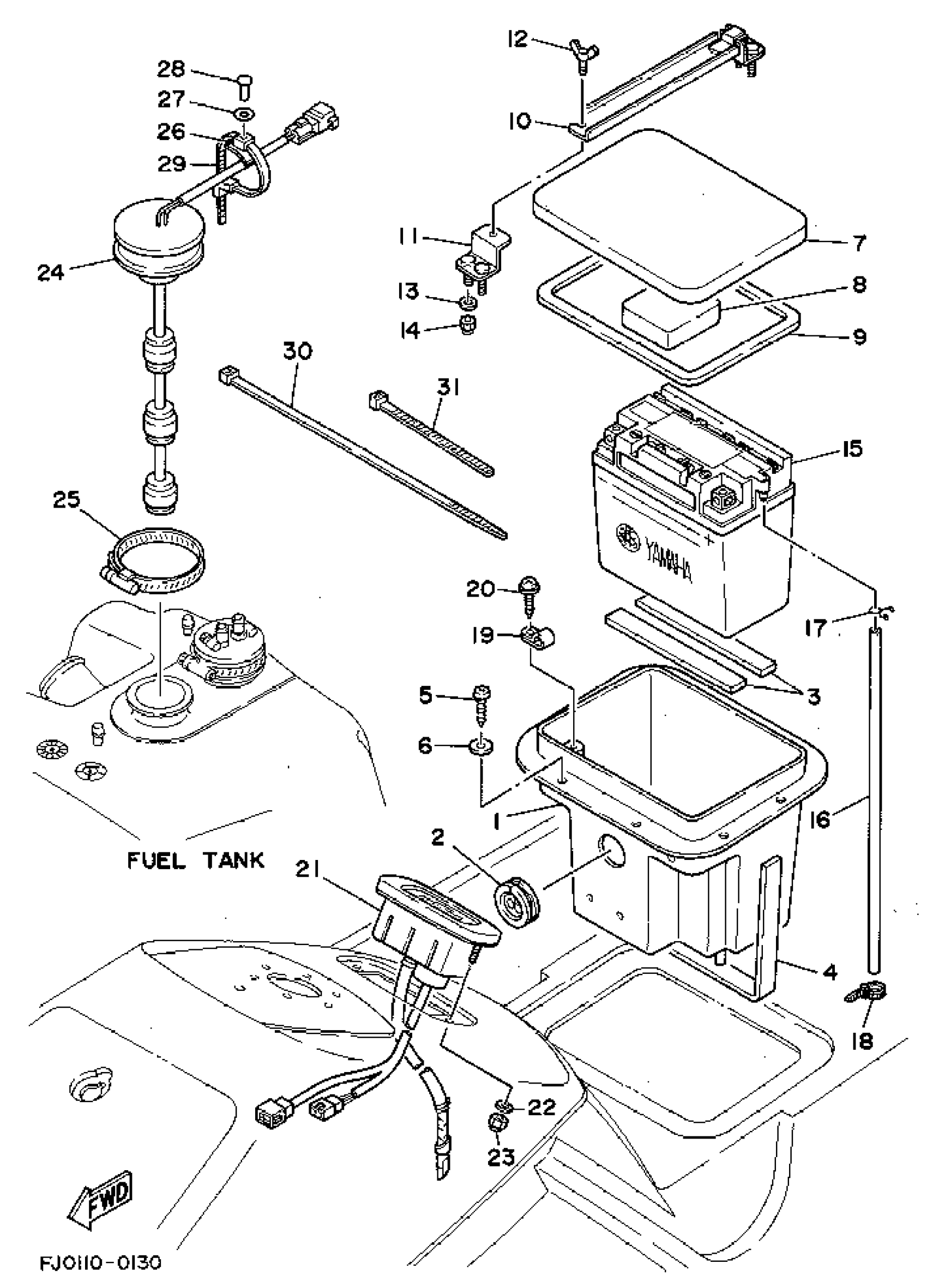

Yamaha WRA650Q (WAVE RUNNER III) 1992 ELECTRICAL 2 Diagram

#

Description
Price

1

CASE,BATTERY

GA9-U8211-01-00

Unavailable

2

GROMMET

FJ0-68222-01-00

Unavailable

3

PAD, BATTERY 1

FJ0-68221-00-00

Unavailable

4

PAD, BATTERY 2

FJ0-68221-30-00

Unavailable

5

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

$1.36

6

. WASHER, PLAIN

92990-05200-00

$4.29

7

RID, BATTERY CASE

GA9-U8212-00-00

Unavailable

8

PAD, BATTERY 3

FJ0-68221-40-00

Unavailable

9

PAD, BATTERY 4

FJ0-68221-50-00

Unavailable

10

BAND, BATTERY CASE

FJ0-68228-00-00

Unavailable

11

END PLATE

FJ0-68229-00-00

Unavailable

12

BOLT, WING

90122-05909-00

Unavailable

13

. WASHER, PLAIN

92990-05200-00

$4.29

14

NUT, FLANGE

95720-05300-00

$1.28

15

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

$101.75

16

HOSE, AIR VENT 5

FJ0-67856-40-00

$16.99

17

CLIP

90467-08M10-00

Unavailable

18

CLAMP

90465-10098-00

$1.68

19

CLIP, NYLON 14

90601-31402-00

$6.71

20

SCREW, TAPPING

97780-40116-00

$3.57

21

METER ASSY

FJ0-68204-02-00

Unavailable

22

. WASHER, PLAIN

92990-05200-00

$4.29

23

NUT, FLANGE

95720-05300-00

$1.28

24

FUEL SENSER

FJ0-68242-00-00

Unavailable

25

BAND, HOSE 62

90601-162U5-00

$6.17

26

CLAMP COMP (EU0)

90600-91736-00

Unavailable

27

. WASHER, PLAIN

90201-05925-00

Unavailable

28

RIVET, BLIND

90267-48802-00

$1.98

29

BAND (EU0)

90601-20009-00

$6.36

30

BAND

90601-20008-00

$7.27

31

BAND (EU0)

90601-20009-00

$6.36
