1990 Yamaha Wave Runner III (WRA650D) OIL Pump Diagram

← All diagrams

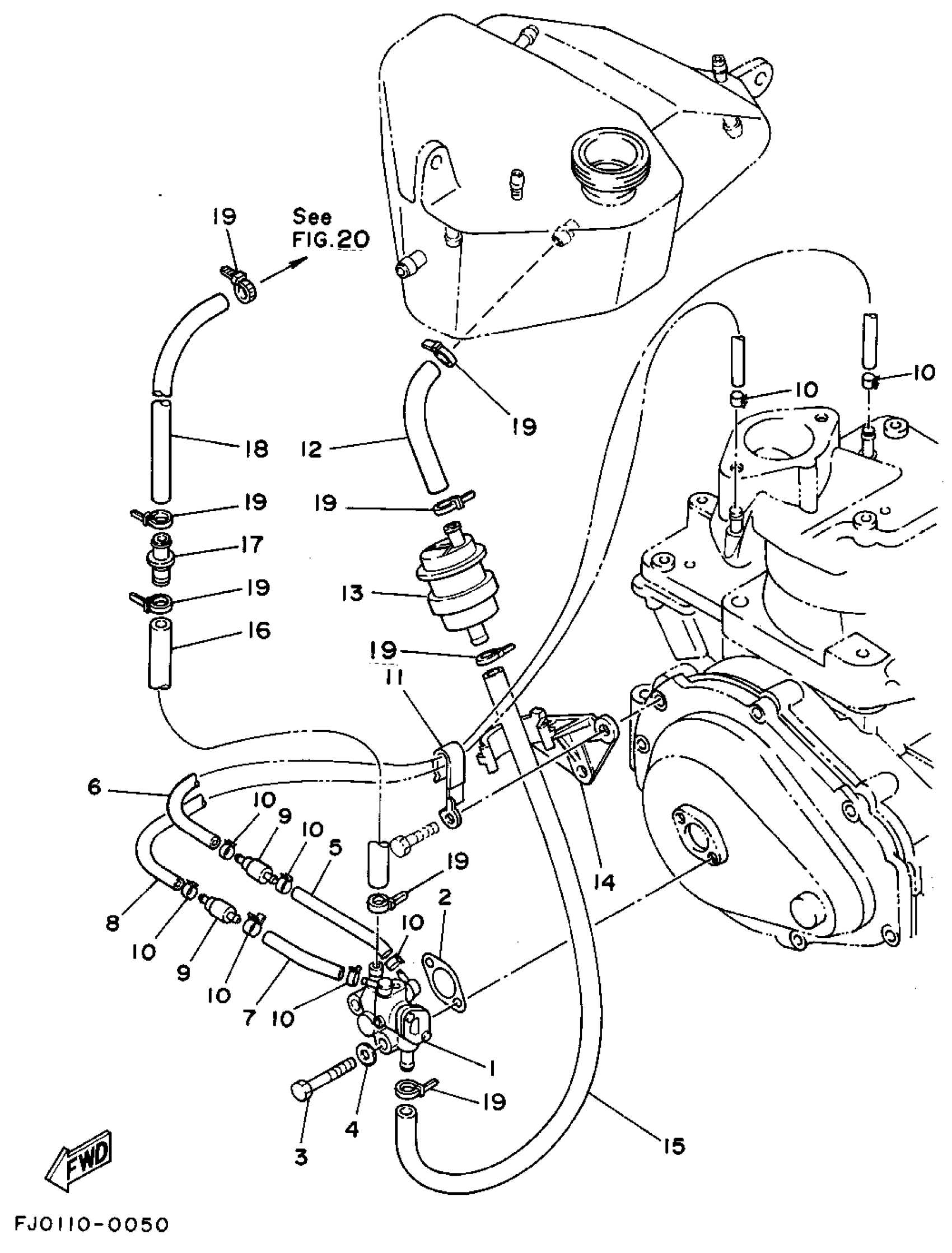

Find the part on the OIL Pump diagram for your 1990 Yamaha Wave Runner III (WRA650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Wave Runner III (WRA650D) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL INJECTION PUMP ASSEMBLY

6R8-13200-00-00

1
Out of stock

2

. GASKET, PUMP CASE

6R8-13116-A0-00

1

$3.69

In stock

3

BOLT (682)

97095-06040-00

1

$2.36

In stock

4

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

5

HOSE(62T)

90446-07M48-00

—

$7.02

In stock

6

HOSE(62T)

90446-07M48-00

—

$7.02

In stock

6

HOSE(62T)

90446-07M48-00

—

$7.02

In stock

7

HOSE(62T)

90446-07M48-00

—

$7.02

In stock

8

HOSE(62T)

90446-07M48-00

—

$7.02

In stock

8

HOSE(62T)

90446-07M48-00

—

$7.02

In stock

9

VALVE, CHECK

6E9-13183-70-00

1

$17.41

In stock

10

CLAMP

90465-10098-00

1

$2.24

In stock

11

CLAMP

90465-08M37-00

1
Out of stock

12

HOSE (6R8)

90445-11M25-00

1
Out of stock

13

SUB TANK, OIL

6R8-21733-00-00

1
Out of stock

14

HOLDER, OIL SUB TANK

6R8-21734-00-00

1
Out of stock

15

HOSE (6R8)

90445-11M25-00

1
Out of stock

16

HOSE (6R8)

90446-12M27-00

1
Out of stock

17

PIPE, JOINT 2

6R8-24377-00-00

1
Out of stock

18

HOSE (L360)

90445-11M15-00

1

$7.99

In stock

19

CLAMP

90465-10098-00

1

$2.24

In stock
