1990 Yamaha Wave Runner Iii (WRA650D) Exhaust 2 Diagram

← All diagrams

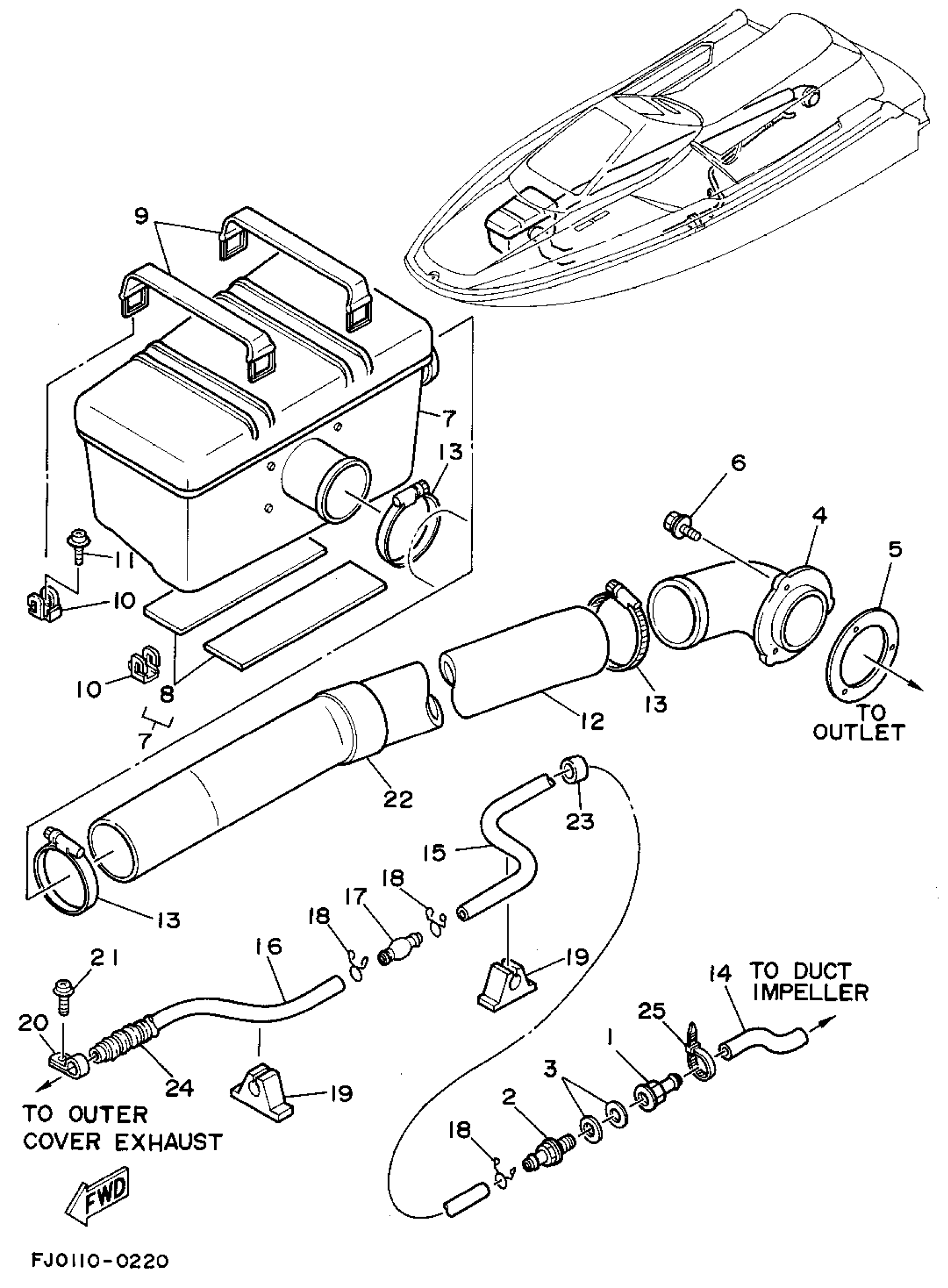

Find the part on the Exhaust 2 diagram for your 1990 Yamaha Wave Runner Iii (WRA650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Wave Runner Iii (WRA650D) Exhaust 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CONNECTION, THRU-HULL 1/4

90604-80757-00

1
Out of stock

2

CONNECTION, THRU-HULL 1/4

90604-80758-00

1
Out of stock

3

GASKET

90430-13909-00

1
Out of stock

4

THRU-HULL

FJ0-67565-01-00

1
Out of stock

5

PACKING

FJ0-67525-00-00

1
Out of stock

6

BOLT, WITH WASHER (EW3)

90119-05912-00

1
Out of stock

7

WATER LOCK COMP.

GA9-U7550-00-00

1
Out of stock

8

. MAT

EW2-67593-00-00

1
Out of stock

9

BAND

FJ0-67569-00-00

1
Out of stock

10

HOOK A

EU0-65772-30-00

1
Out of stock

11

SCREW, WITH WASHER

90159-06901-00

1
Out of stock

12

HOSE

GA9-U7555-00-00

1
Out of stock

13

BAND, HOSE 68 (FJ0)(TAIWAN)

90601-16875-00

1
Out of stock

14

HOSE

90445-14M11-00

1
Out of stock

15

HOSE (L1300)

90445-14M22-00

1
Out of stock

16

HOSE (L380)

90445-14M25-00

—
Out of stock

17

CONNECTION

6M6-51142-00-00

1
Out of stock

18

. CLIP

90467-12M11-00

1
Out of stock

19

CLAMP

90600-91730-00

1
Out of stock

20

CLIP, NYLON 17

90600-91728-00

1
Out of stock

21

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

—
Out of stock

22

PACKING, HOSE 1

FJ0-67577-02-00

1
Out of stock

23

PACKING, HOSE 2

FJ0-67578-00-00

1
Out of stock

24

HOSE (L230)

90446-20M24-00

1
Out of stock

25

CLAMP

90465-10098-00

1
Out of stock
