1990 Yamaha Wave Runner III (WRA650D) JET Unit 2 Diagram

← All diagrams

Find the part on the JET Unit 2 diagram for your 1990 Yamaha Wave Runner III (WRA650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

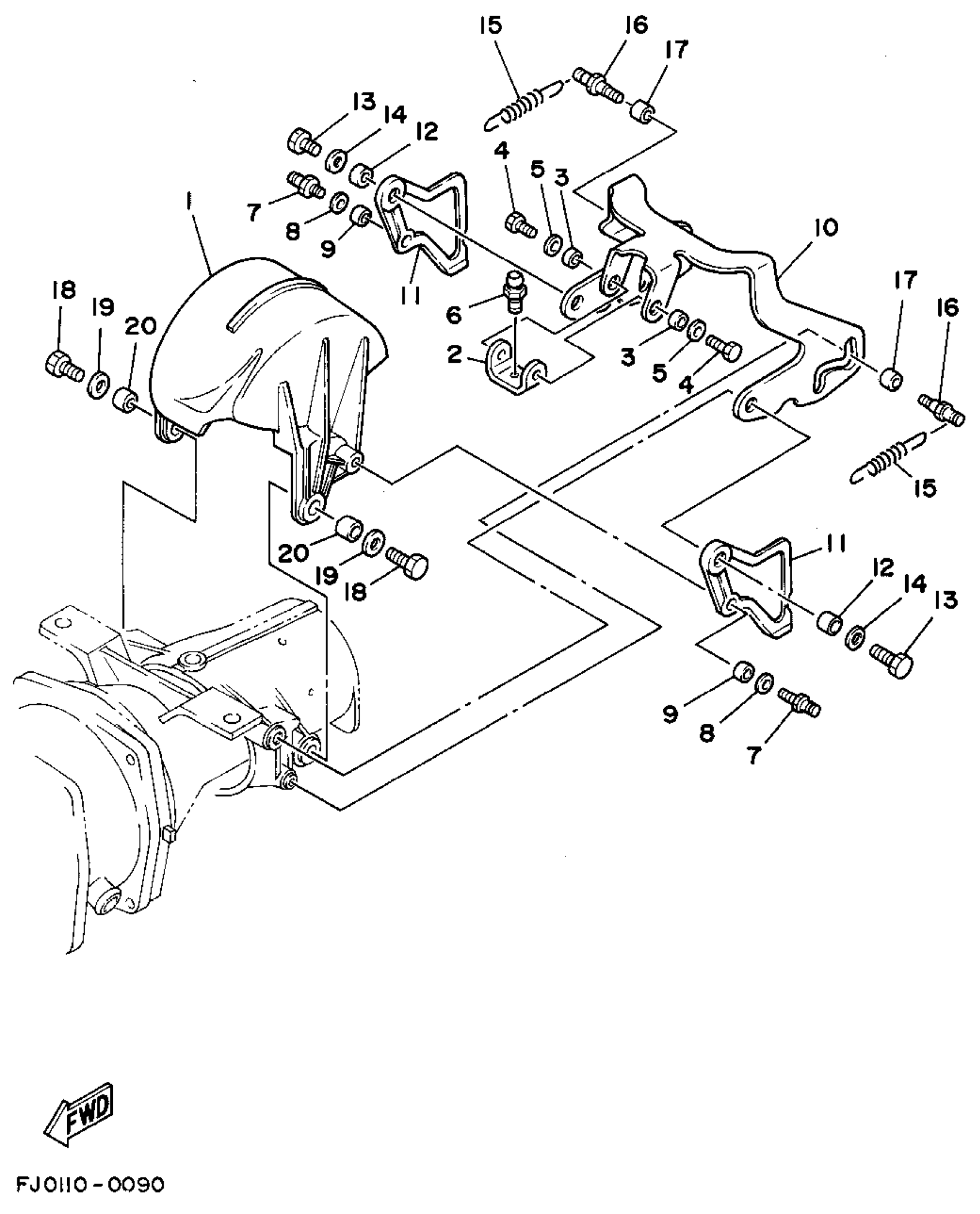

1990 Yamaha Wave Runner III (WRA650D) JET Unit 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, REVERSE

6R8-51314-02-94

1
Out of stock

2

LEVER, SHIFT ROD

6R8-44125-00-00

1

$18.49

In stock

3

COLLAR(6R8)

90387-06M24-00

—
Out of stock

4

BOLT(GH1)

97080-06012-00

1
Out of stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

BOLT, JOINT

6R8-42316-00-00

1

$21.37

In stock

7

PIN

6R8-44184-00-00

1

$22.99

In stock

8

WASHER, PLATE

90201-06M31-00

1

$2.92

In stock

9

COLLAR(6R8)

90387-06M30-00

—

$12.14

In stock

10

LEVER SHIFT ROD

6R8-44121-01-00

1
Out of stock

11

PLATE 1

6R8-51345-00-00

1
Out of stock

12

COLLAR

90387-08M07-00

1
Out of stock

13

BOLT (62G)

97095-08025-00

1

$6.57

In stock

14

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

15

SPRING, TENSION

90506-16M31-00

1
Out of stock

16

PIN

6R8-44137-A0-00

1

$30.49

In stock

17

COLLAR(64T)

90387-08M26-00

1

$16.99

In stock

18

BOLT, HEXAGON

97095-08018-00

1

$3.23

In stock

19

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

20

COLLAR

90387-08M08-00

1

$12.11

In stock
