1990 Yamaha Wave Runner III (WRA650D) JET Unit 1 Diagram

← All diagrams

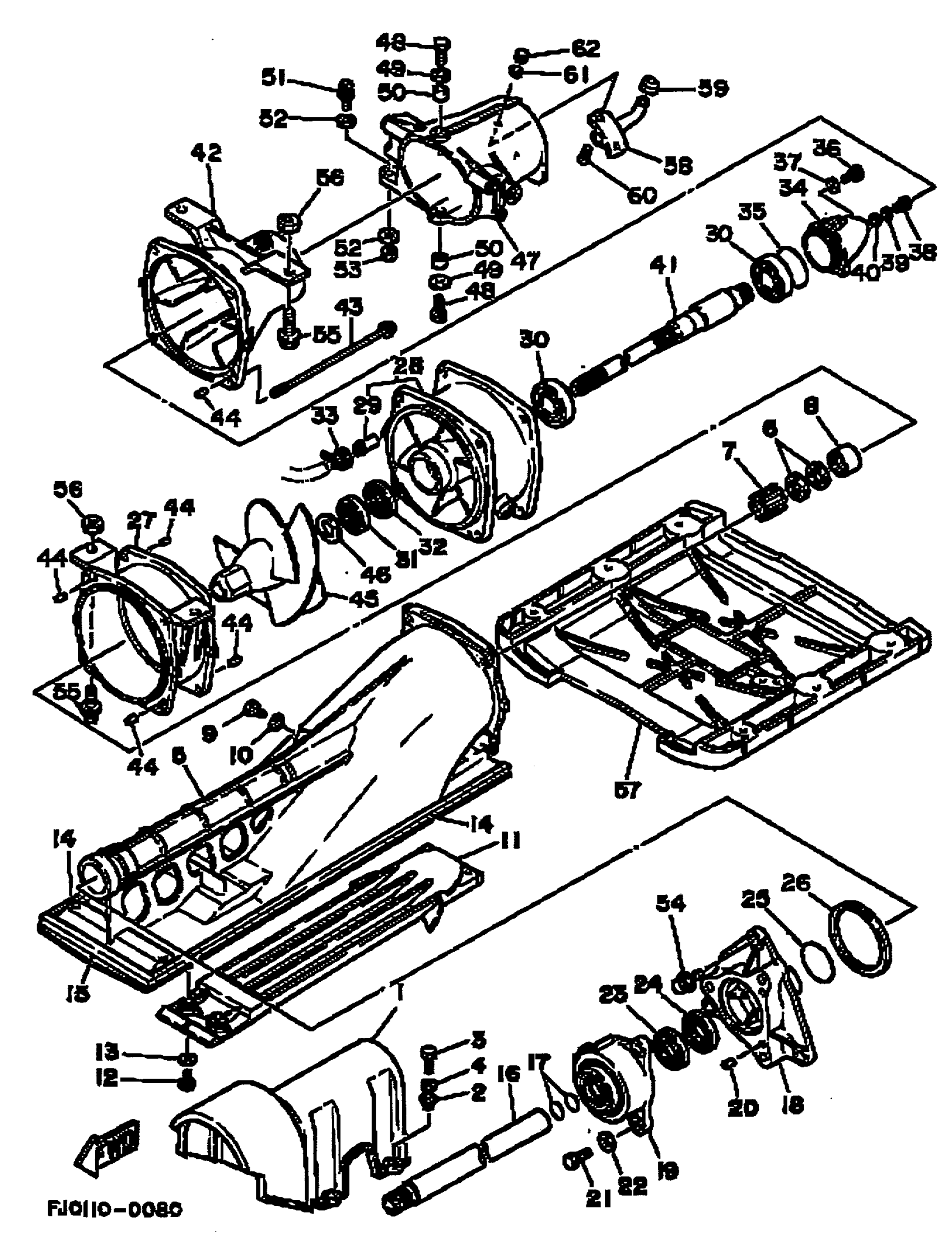

Find the part on the JET Unit 1 diagram for your 1990 Yamaha Wave Runner III (WRA650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Wave Runner III (WRA650D) JET Unit 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

6R8-51381-01-00

1
Out of stock

2

COLLAR

90387-06M70-00

1

$7.12

In stock

3

BOLT (97395-06020-00)

97595-06020-00

1
Out of stock

4

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

5

DUCT, INTAKE

6R8-51311-02-94

1
Out of stock

6

OIL SEAL(6R8)

93102-18M35-00

—

$9.69

In stock

7

BUSHING, DRIVE SHAFT

6R8-45318-00-00

1
Out of stock

8

SPACER

6R8-51348-02-94

1
Out of stock

9

BOLT

90101-06M27-00

1

$2.90

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

SCREEN, INTAKE

6R8-51333-01-CA

1

$148.49

In stock

12

BOLT (FJ0)

97080-06018-00

—
Out of stock

13

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

14

FELT, PACKING

6R8-51367-00-00

1
Out of stock

15

FELT, PACKING

6R8-51368-00-00

1
Out of stock

16

SHAFT, COUPLOR

6R8-51323-01-00

1

$286.49

In stock

17

O-RING(6R7)

93210-17MA4-00

—

$4.84

In stock

18

HOUSING, BEARING

6R8-45332-00-94

1
Out of stock

19

BEARING HOUSING ASSY

6R7-W4531-00-CA

1
Out of stock

20

PIN, DOWEL(6R7)

93606-07M17-00

—
Out of stock

21

BOLT (62G)

97095-08025-00

—

$6.57

In stock

22

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

23

OIL SEAL(62T)

93101-25M55-00

—

$26.00

In stock

24

OIL SEAL

93101-24001-00

—

$31.99

In stock

25

O-RING

93210-35M72-00

—

$11.57

In stock

26

SEAL

6K8-45127-00-00

1

$15.49

In stock

27

HOUSING, IMPELLER

6R8-51312-03-94

1

$397.49

In stock

28

DUCT, IMPELLER

6R7-51315-01-94

1
Out of stock

29

. NIPPLE

6K8-51129-00-00

1

$12.99

In stock

30

BEARING (6K8)

93306-205U1-00

—

$21.14

In stock

31

OIL SEAL(6R7)

93102-25M34-00

—

$14.64

In stock

32

OIL SEAL(6R7)

93101-25M50-00

—

$22.28

In stock

33

CLAMP

90465-10098-00

1

$2.24

In stock

34

CAP

62T-51326-00-00

1

$71.49

In stock

35

. O-RING

93210-46M16-00

1

$7.91

In stock

36

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

37

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

38

BOLT(GH1)

97080-06012-00

1
Out of stock

39

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

40

. GASKET

90430-06M03-00

1

$2.97

In stock

41

SHAFT, DRIVE

6R8-45511-00-00

1
Out of stock

42

NOZZULE

6R8-51318-01-94

1
Out of stock

43

BOLT(6R8)

90101-06M04-00

—

$18.88

In stock

44

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

45

IMPELLER

6R7-51321-00-8S

1

$333.49

In stock

46

SPACER

62T-51348-00-00

1

$48.10

In stock

47

NOZZLE,DEFLECTOR

6R8-51313-03-94

1
Out of stock

48

BOLT (62G)

97095-08025-00

—

$6.57

In stock

49

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

50

COLLAR

90387-08M08-00

1

$12.11

In stock

51

. BOLT, JOINT

6R7-42316-00-00

1

$34.49

In stock

52

WASHER, PLATE

90201-06M31-00

1

$2.92

In stock

53

NUT(650)

95380-06700-00

—

$6.17

In stock

54

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

55

BOLT

90119-10906-00

1
Out of stock

56

NUT

90179-10925-00

1

$5.08

In stock

57

PLATE 2

FJ0-62731-01-00

1
Out of stock

58

SPOUT

62G-62693-00-00

1

$50.99

In stock

59

CAP, SPOUT

6R8-62695-00-00

1

$4.62

In stock

60

SCREW(617)

98780-05012-00

—

$3.03

In stock

61

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

62

.. NUT

95380-05800-00

1

$2.77

In stock
