1990 Yamaha Wave Runner III (WRA650D) Generator Diagram

← All diagrams

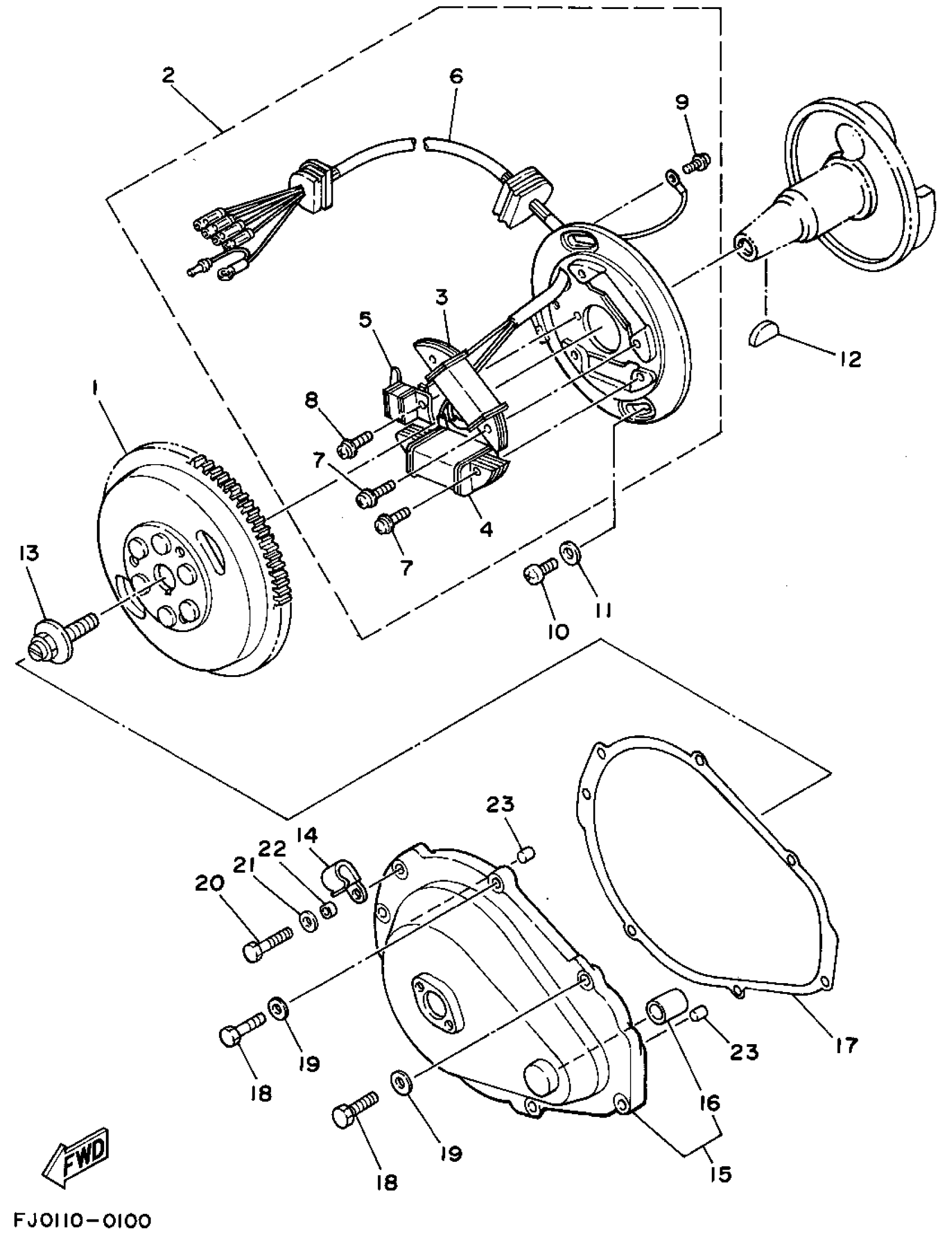

Find the part on the Generator diagram for your 1990 Yamaha Wave Runner III (WRA650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Wave Runner III (WRA650D) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSEMBLY

6R7-85550-00-00

1
Out of stock

2

BASE ASSEMBLY

6R8-85560-00-00

1
Out of stock

3

. COIL, CHARGE

6M6-85520-00-00

1
Out of stock

4

. COIL, LIGHTING

6M6-85533-00-00

1
Out of stock

5

. COIL, PULSER

6M6-85580-00-00

1

$171.99

In stock

6

. LEAD WIRE ASSEMBLY

6R8-85515-00-00

1
Out of stock

7

. SCREW, WITH WASHER

97902-05125-00

1

$3.84

In stock

8

. SCREW, WITH WASHER

97902-04122-00

1

$6.46

In stock

9

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

10

SCREW, PAN HEAD

98580-06016-00

1

$2.90

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

KEY, WOODRUFF

90280-05001-00

1

$10.68

In stock

13

BOLT

90109-10M47-00

1

$29.99

In stock

14

CLAMP

90465-08028-00

1

$4.62

In stock

15

COVER, FLYWHEEL

6R8-81337-00-8S

1

$111.49

In stock

16

. BUSH, SOLID

90380-12M29-00

1
Out of stock

17

. GASKET, HOLE COVER

6M6-81365-A0-00

1

$33.40

In stock

18

BOLT

90101-06M27-00

1

$2.90

In stock

19

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

20

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

21

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

22

COLLAR

90387-06704-00

1
Out of stock

23

PIN, DOWEL (614)

93606-12019-00

—
Out of stock
