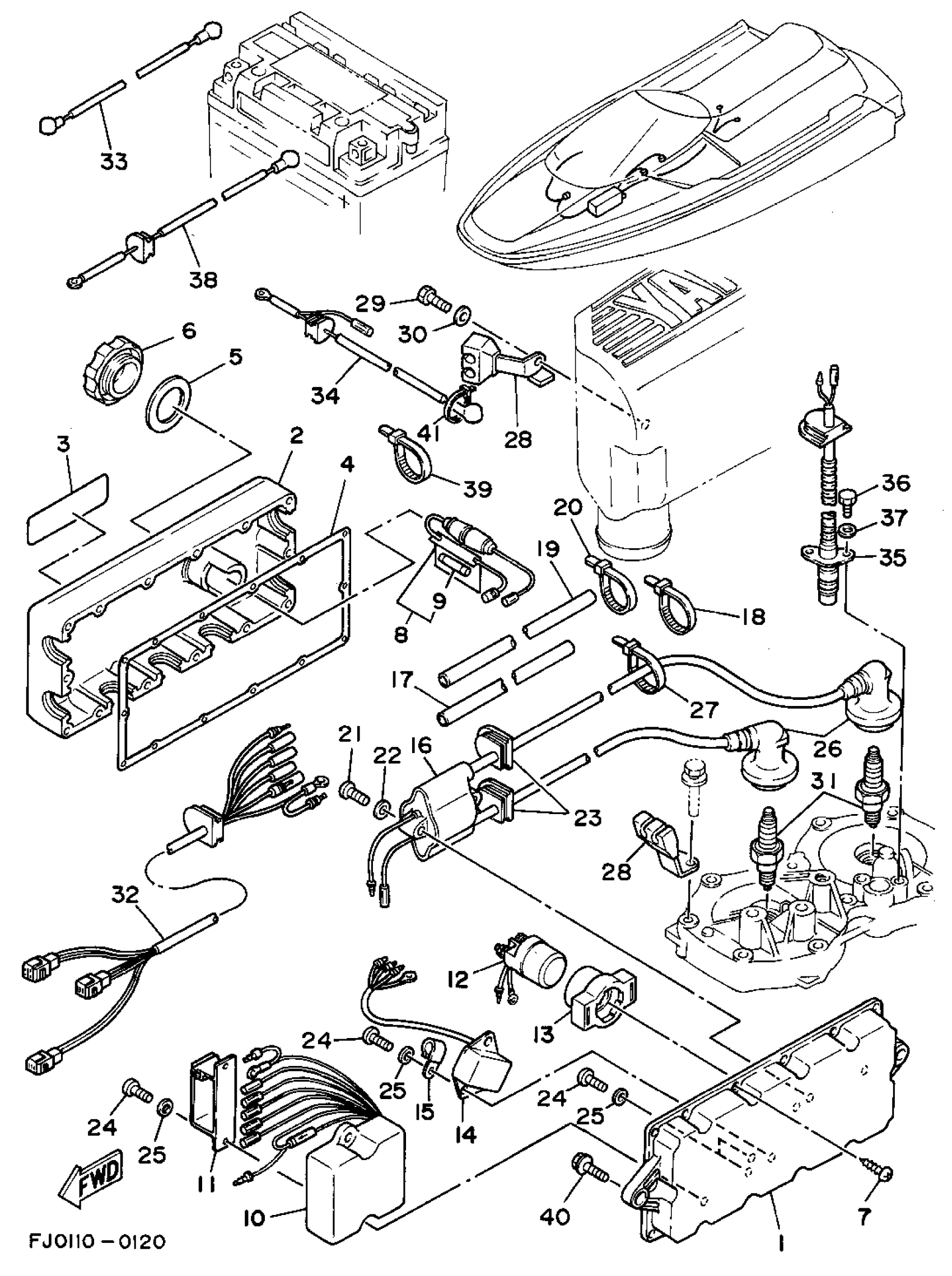

Yamaha WRA650D (WAVE RUNNER III) 1990 ELECTRICAL 1 Diagram

#

Description
Price

1

HOUSING

6M6-8552A-01-8P

Unavailable

2

COVER, CASE

6M6-8552E-01-00

Unavailable

3

MARK 3

6R7-83623-40-00

Unavailable

4

GASKET, TERMINAL

6M6-81921-00-00

Unavailable

5

GASKET

6M6-81844-00-00

Unavailable

6

CAP

6M6-8132W-00-00

Unavailable

7

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

8

FUSE HOLDER ASSY

6K8-82150-02-00

$38.99

9

FUSE (10A)

1E6-82151-00-00

$7.99

10

C.D.I. UNIT ASSY

6M6-85540-02-00

Unavailable

11

CLAMP

90464-06M29-00

Unavailable

12

STARTER RELAY ASSY

6G1-81941-10-00

Unavailable

13

HOLDER, RELAY

6M6-81952-01-00

Unavailable

14

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

15

CLAMP

90465-08028-00

Unavailable

16

IGNITION COIL ASSEMBLY

6R8-85570-00-00

Unavailable

17

TUBE, CORD 2

6R8-82352-00-00

Unavailable

18

CLAMP

90465-10098-00

Unavailable

19

TUBE, CORD 2

6R8-82352-00-00

Unavailable

20

CLAMP

90465-10098-00

Unavailable

21

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

GROMMET

90480-06M43-00

Unavailable

24

SCREW, PAN

98507-06014-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

PLUG CAP ASSY

63M-82370-00-00

Unavailable

27

CLAMP

90465-10098-00

Unavailable

28

CLAMP, CORD

6R8-82361-00-00

Unavailable

29

BOLT(62E)

97013-08012-00

Unavailable

30

.. WASHER, PLATE

92990-08600-00

Unavailable

31

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

32

EXTENSION, WIRE LEAD

6R8-82553-01-00

Unavailable

33

WIRE,LEAD

62T-82117-01-00

Unavailable

34

WIRE, LEAD

6R8-82117-11-00

Unavailable

35

THERMO SWITCH ASSEMBLY

6R8-82560-00-00

Unavailable

36

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

37

WASHER, SPRING

92995-06100-00

Unavailable

38

WIRE, LEAD

62E-82117-20-00

Unavailable

39

CLAMP

90465-10098-00

Unavailable

40

BOLT, WITH WASHER

90119-08907-00

Unavailable

41

CLAMP

90465-10098-00

Unavailable
