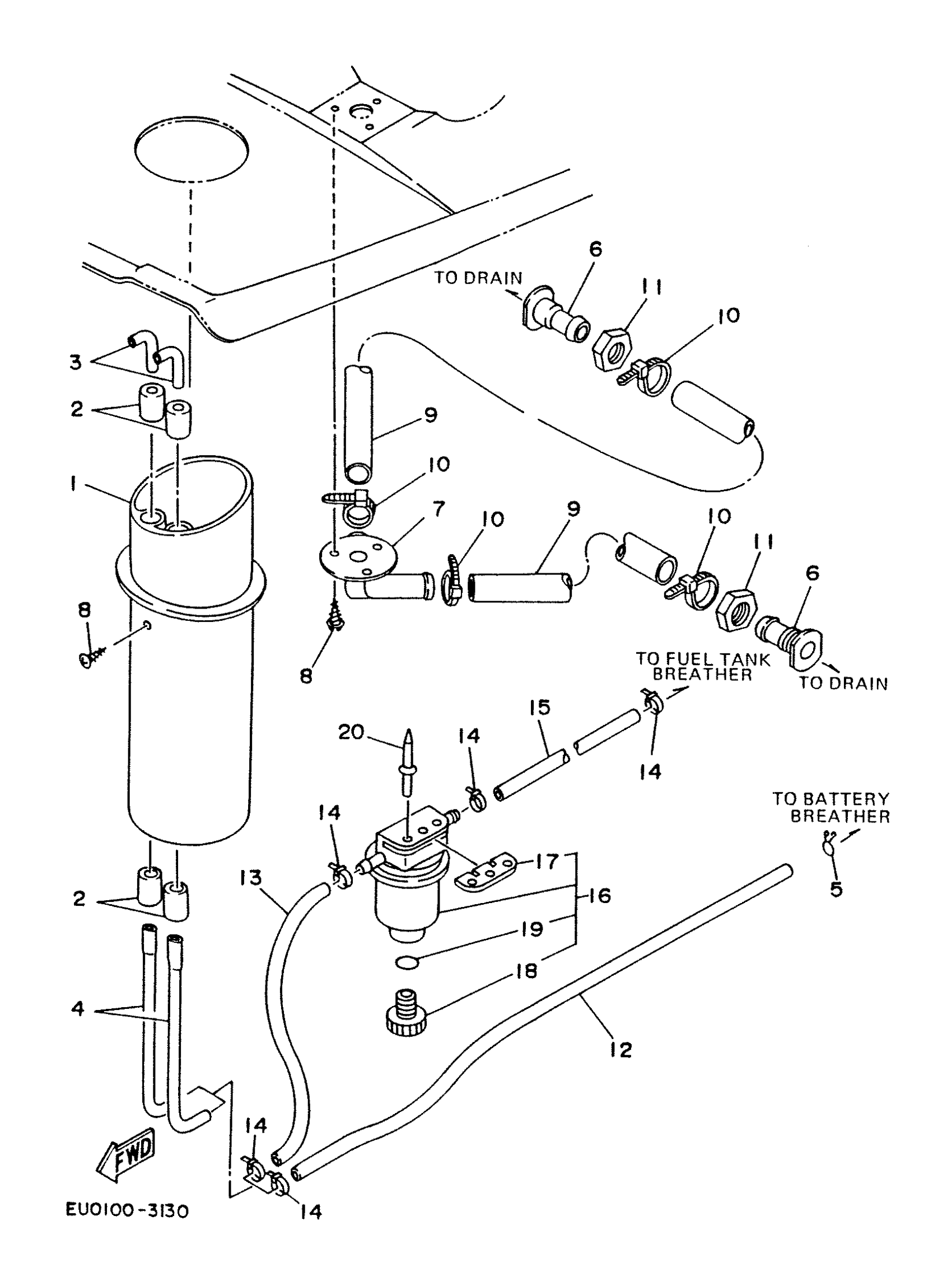

Yamaha WR650R (WAVERUNNER LX) FK7 1993 VENTILATION Diagram

#

Description
Price

1

PIPE, VENTILATION

EU0-U2149-40-00

Unavailable

2

CAP

EU0-62155-00-00

Unavailable

3

ELBOW VENT 11

EU0-62156-01-00

Unavailable

4

ELBOW VENT 12

EU0-62156-32-00

Unavailable

5

CLIP

90467-08M10-00

Unavailable

6

BODY, DRAIN 1

EU0-62241-00-00

Unavailable

7

DRAIN 2

EU0-62242-00-00

$58.99

8

SCREW, OVAL HEAD TAPPING

97780-40112-00

$3.61

9

HOSE 1

90669-03030-00

$98.47

10

BAND HOSE

90601-12538-00

$17.99

11

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

12

HOSE

90699-50085-00

$24.98

13

HOSE, AIR VENT 2

EU0-67856-60-00

Unavailable

14

CLAMP

90465-10098-00

$1.68

15

HOSE, AIR VENT

EU0-67856-50-00

Unavailable

16

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

17

. PLATE, FILTER

EW2-62142-00-00

$44.99

18

. PLUG, DRAIN

70R-24543-00-00

$9.08

19

. O-RING

70R-24489-00-00

$5.00

20

RIVET (EU0)

90267-48938-00

$5.00
