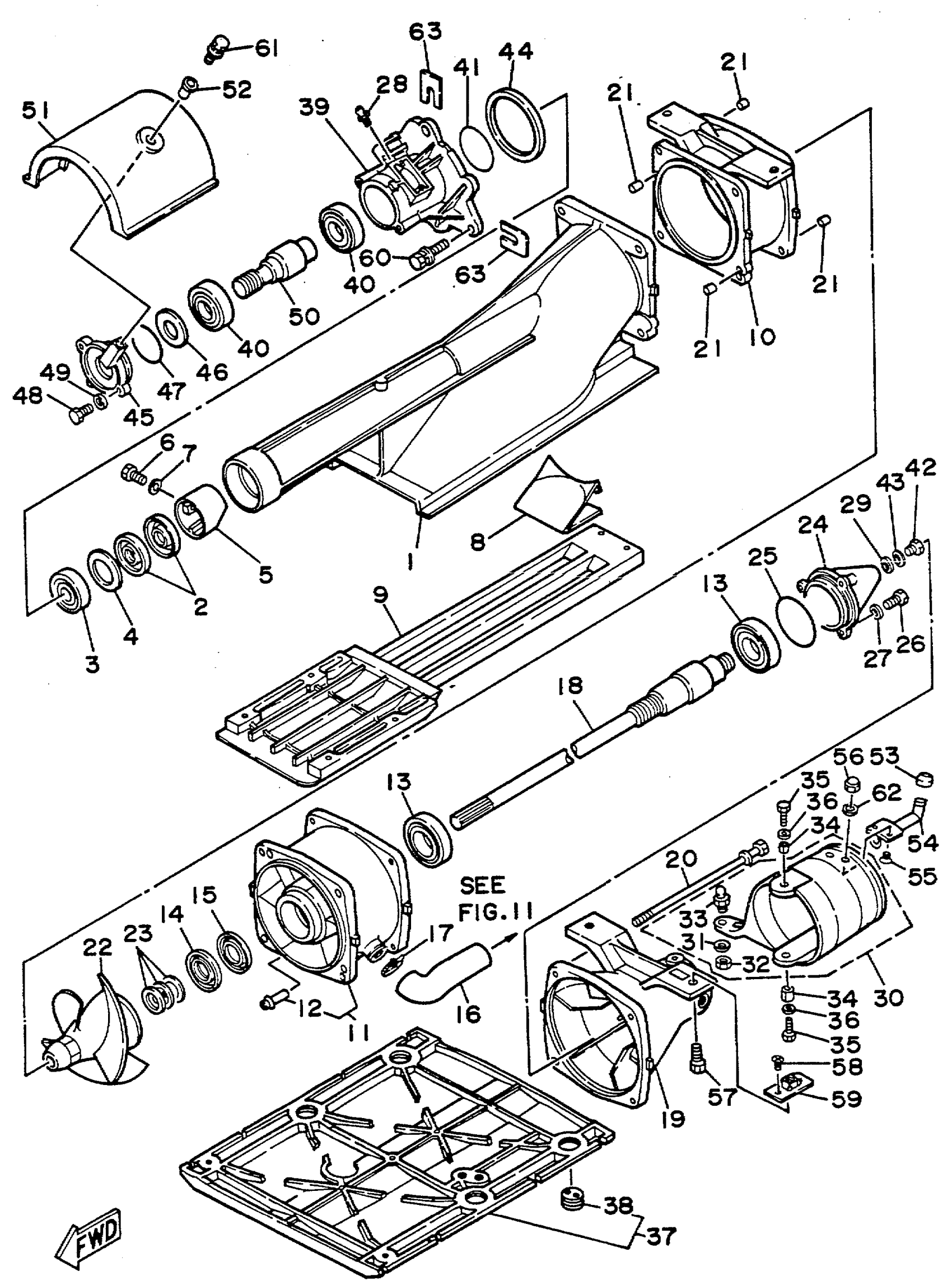

Yamaha WR650R (WAVERUNNER LX) FK7 1993 JET UNIT Diagram

#

Description
Price

1

DUCT, INTAKE

6K8-51311-00-94

Unavailable

2

. OIL SEAL, S-TYPE

93101-17M31-00

Unavailable

3

BRG,R-B 6303 47MM 115G NK

93306-30302-00

$38.27

4

SHIM (T:0.90MM)

676-45567-20-00

$6.14

5

SPACER

6K8-51348-00-8S

Unavailable

6

BOLT(7U8)

97080-06020-00

$3.63

7

WASHER, PLAIN (646)

92990-06600-00

$1.84

8

PLATE 3

6K8-51347-00-8S

Unavailable

9

SCREEN, INTAKE

6K8-51333-00-8S

Unavailable

10

HOUSING, IMPELLER

6K8-51312-00-8S

Unavailable

11

DUCT, IMPELLER

99999-03840-00

Unavailable

12

. PIPE

6K8-51385-00-00

Unavailable

13

BEARING

93306-206U6-00

Unavailable

14

. OIL SEAL, SW-TYPE

93103-30M00-00

Unavailable

15

. OIL SEAL, S-TYPE

93101-30M32-00

Unavailable

16

HOSE, SPLASHER

6K8-51161-10-00

Unavailable

17

HOSE CLAMP ASSY

90450-32097-00

$13.99

18

SHAFT, DRIVE

6K8-45511-01-00

$606.05

19

NOZZLE (6M6-51318-00-9M)

6M6-51318-00-5B

$221.20

20

BOLT, WITH WASHER

90119-06M33-00

Unavailable

21

PIN, DOWEL (614)

93606-12019-00

Unavailable

22

IMPELLER

6M6-51321-00-94

Unavailable

23

SHIM (T=0.1)

6K8-45567-00-01

Unavailable

23

SHIM (T=0.3)

6K8-45567-00-03

Unavailable

23

SHIM (T=0.5)

6K8-45567-00-05

Unavailable

24

CAP

6K8-51326-00-94

Unavailable

25

. O-RING

93210-57M09-00

$5.23

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

27

WASHER, PLAIN (646)

92990-06600-00

$1.84

28

NIPPLE, GREASE

93700-06M03-00

$7.40

29

. GASKET

90430-06M03-00

$2.80

30

NOZZLE, JET OUTPUT

6K8-51313-00-00

Unavailable

31

WASHER, PLATE

90201-06M02-00

$2.20

32

NUT(650)

95380-06700-00

Unavailable

33

. BOLT, JOINT

6R7-42316-00-00

$34.49

34

COLLAR(47X)

90387-060G7-00

Unavailable

35

BOLT(7U8)

97080-06020-00

$3.63

36

WASHER, PLAIN (646)

92990-06600-00

$1.84

37

PLATE 2

FK7-62730-00-00

Unavailable

38

BOLT, JACK

FK7-62732-01-00

Unavailable

39

HOUSING, BEARING

6K8-45331-02-00

Unavailable

40

BEARING (6K8)

93306-205U1-00

Unavailable

41

. O-RING

93210-52454-00

Unavailable

42

BOLT(GH1)

97080-06012-00

$2.56

43

WASHER, PLAIN (646)

92990-06600-00

$1.84

44

SEAL

6K8-45127-00-00

$15.49

45

PLATE

6K8-51332-00-00

Unavailable

46

OIL SEAL(6R7)

93101-25M50-00

Unavailable

47

. O-RING

93210-46M16-00

$7.15

48

BOLT(7U8)

97080-06020-00

$3.63

49

WASHER, PLAIN (646)

92990-06600-00

$1.84

50

SHAFT, COUPLER

6K8-51323-02-00

Unavailable

51

COVER

6M6-51381-01-00

Unavailable

52

COLLAR

90387-06M60-00

$6.37

53

CAP, SPOUT

6R8-62695-00-00

$4.55

54

SPOUT

EU0-62693-02-00

$41.99

55

. SCREW, FLAT HEAD

98780-05016-00

$2.64

56

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

Unavailable

57

BOLT

90119-10906-00

Unavailable

58

SCREW, TAPPING (97780-40108-00)

97780-40508-00

Unavailable

59

NUT

90179-10919-00

Unavailable

60

BOLT, WITH WASHER

90119-08907-00

$5.45

61

BOLT, WITH WASHER

90119-06900-00

$4.09

62

. WASHER, PLAIN

92990-05200-00

$4.29

63

SHIM (T=0.3)

EU0-67354-30-03

Unavailable

63

SHIM (T=0.5) (EU0-67354-30-05)

EU0-U7354-30-05

Unavailable

63

SHIM (T=1.0) (EU0-67354-30-10)

EU0-U7354-30-10

Unavailable
