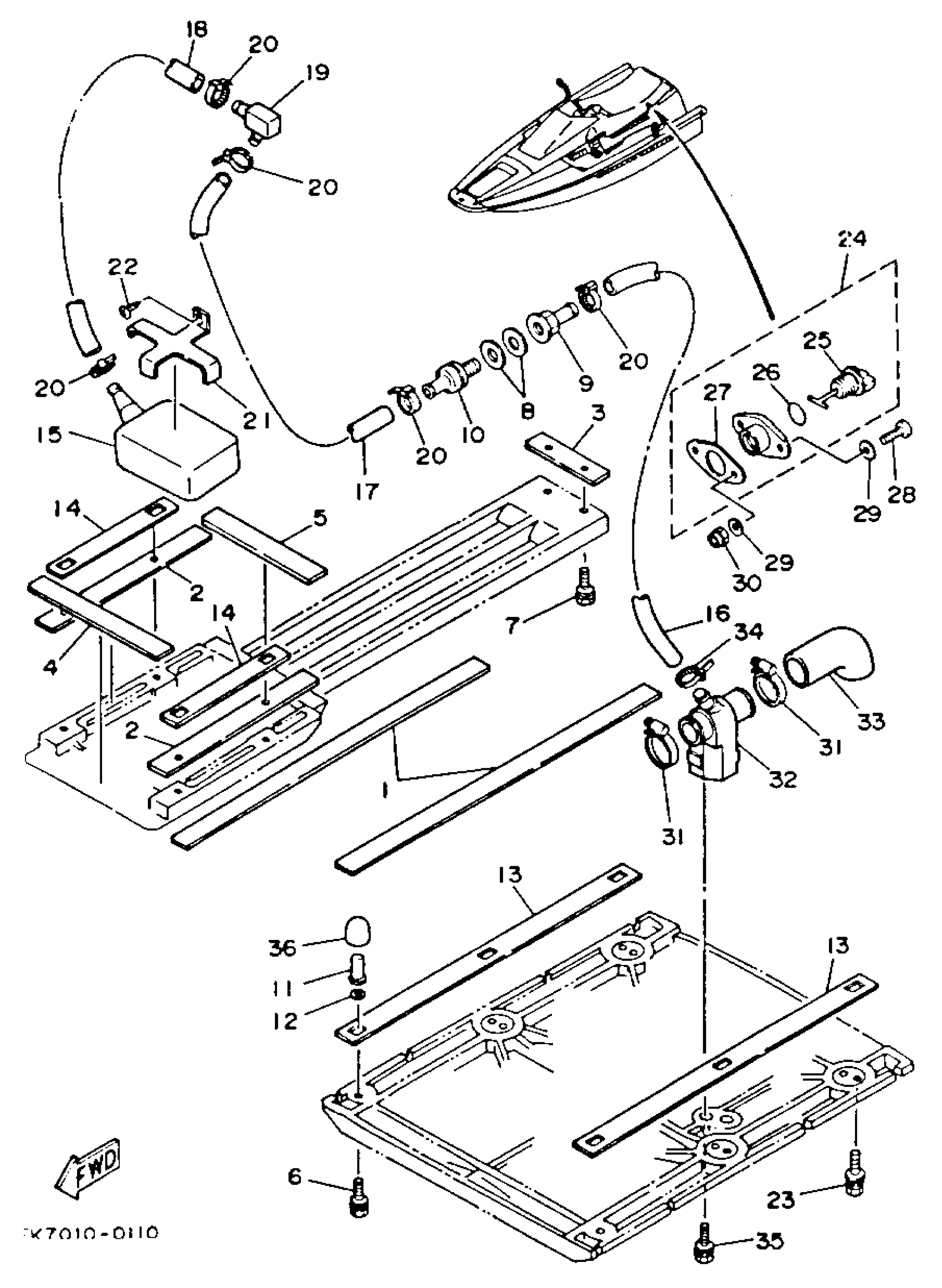

Yamaha WR650R (WAVERUNNER LX) FK7 1993 HULL DECK 2 Diagram

#

Description
Price

1

PACKING, 3

EU0-U2284-01-00

Unavailable

2

PACKING 4

EU0-U2284-31-00

Unavailable

3

PACKING 5

EU0-U2284-41-00

Unavailable

4

PACKING 6

EU0-U2284-51-00

Unavailable

5

PACKING 7

EU0-U2284-61-00

Unavailable

6

BOLT, WITH WASHER

90119-06896-00

Unavailable

7

BOLT, WITH WASHER

90119-06900-00

Unavailable

8

GASKET

90430-13909-00

Unavailable

9

CONNECTION, THRU-HULL 1/4

90604-80759-00

Unavailable

10

CONNECTION, THRU-HULL 1/4

90604-80760-00

Unavailable

11

NUT, POP

90179-06935-00

Unavailable

12

WASHER

90201-09924-00

Unavailable

13

PLATE, STOPPER A (A)

EU0-67367-00-00

Unavailable

14

PLATE, STOPPER B (B)

EU0-67367-30-00

Unavailable

15

STRAINER, BILGE

F4R-6761D-00-00

$28.99

16

HOSE (L240)

90445-14M05-00

Unavailable

17

HOSE

90445-14M03-00

Unavailable

18

HOSE (L450)

90445-14M04-00

Unavailable

19

JOINT, HOSE

6K8-51162-00-00

Unavailable

20

CLAMP

90465-10098-00

Unavailable

21

BASE

EU0-67618-00-00

Unavailable

22

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

23

BOLT, WITH WASHER

90119-06914-00

Unavailable

24

DRAIN PLUG ASSY

EU0-62280-00-00

Unavailable

25

. PLUG, DRAIN

EU0-62282-00-00

Unavailable

26

. O-RING

EU0-62283-00-00

Unavailable

27

. PACKING DRAIN (EU0)

EU0-62285-01-00

Unavailable

28

SCREW, PAN HEAD

98580-05020-00

Unavailable

29

. WASHER, PLAIN

92990-05200-00

Unavailable

30

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

Unavailable

31

HOSE CLAMP ASSY

90450-32097-00

Unavailable

32

BODY, VALVE

6K8-7610K-01-00

Unavailable

33

HOSE SUCTION

6K8-51141-00-00

Unavailable

34

CLAMP

90465-10098-00

Unavailable

35

BOLT, WITH WASHER

90119-06901-00

Unavailable

36

CLING

90190-06013-00

Unavailable
