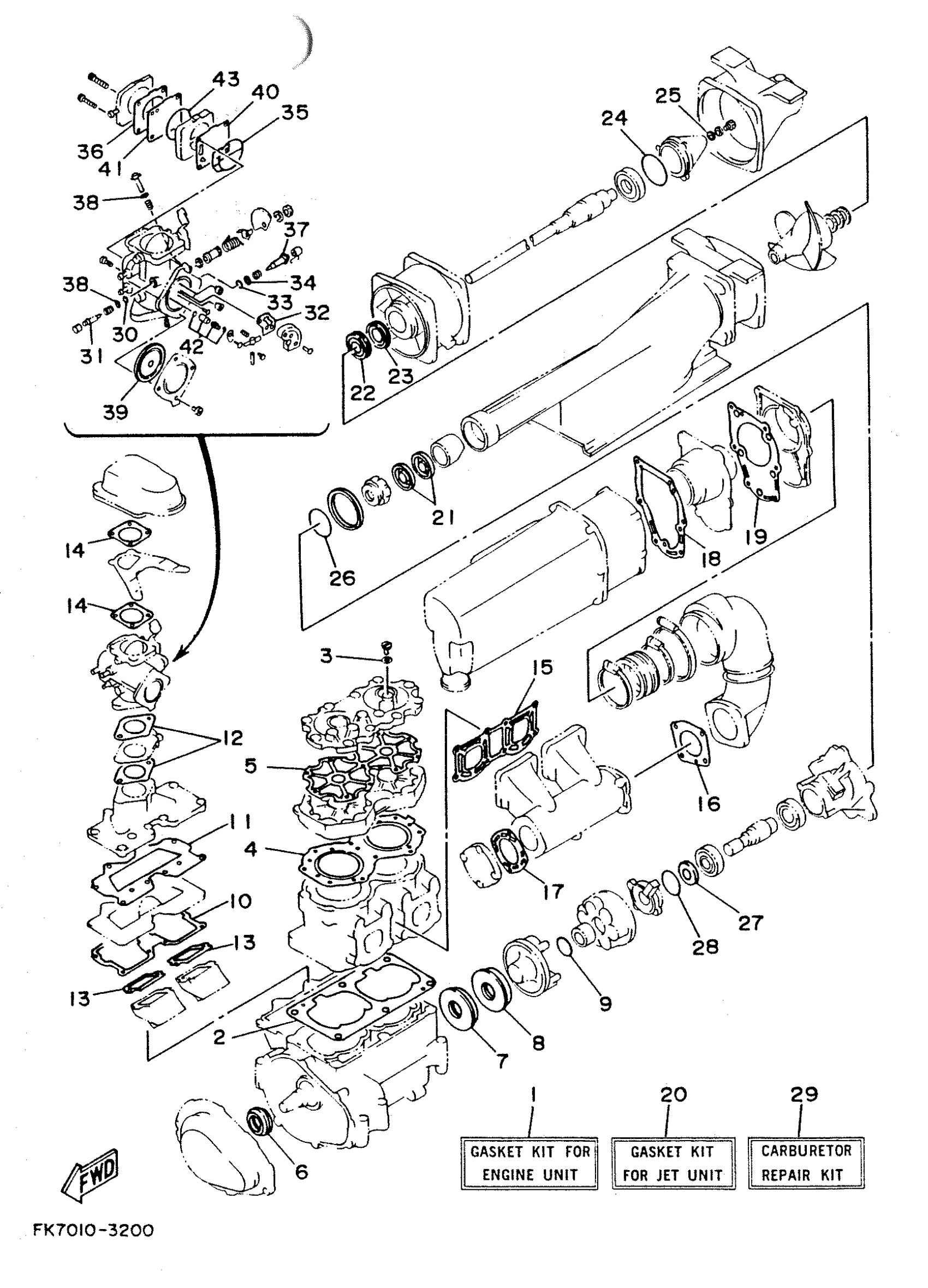

Yamaha WR650R (WAVERUNNER LX) FK7 1993 GASKET KIT Diagram

#

Description
Price

1

GASKET KIT

6M6-W0001-A2-00

Unavailable

2

GASKET, CYLINDER

6M6-11351-A2-00

$17.94

3

GASKET

90430-08003-00

$1.60

4

GASKET, CYLINDER HEAD 1

6M6-11181-A1-00

Unavailable

5

GASKET, HEAD COVER 1

6M6-11193-A1-00

Unavailable

6

. OIL SEAL

93103-32M01-00

$15.19

7

. OIL SEAL

93102-36M33-00

$15.95

8

. OIL SEAL

93101-36M46-00

$13.29

9

O-RING

93210-30M31-00

$8.73

10

GASKET

6M6-13566-A2-00

Unavailable

11

GASKET

6M6-13563-A1-00

Unavailable

12

GASKET, MANIFOLD

6M6-13556-A1-00

$5.59

13

GASKET, VALVE SEAT

6M6-13621-A1-00

Unavailable

14

GASKET, AIR COOLER COVER 1

6M6-13674-A1-00

$4.72

15

GASKET, EXHAUST PIPE

6M6-14613-A0-00

$9.87

16

GASKET, MUFFLER DAMPER 2

6M6-14749-A1-00

Unavailable

17

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

$12.20

18

GASKET, SILENCER

6M6-14755-A0-00

$18.64

19

GASKET, EXHAUST OUTER COVER

6M6-41114-A0-00

$22.37

20

GASKET KIT, JET

6M6-W0001-21-00

Unavailable

21

. OIL SEAL, S-TYPE

93101-17M31-00

Unavailable

22

. OIL SEAL, SW-TYPE

93103-30M00-00

Unavailable

23

. OIL SEAL, S-TYPE

93101-30M32-00

Unavailable

24

. O-RING

93210-57M09-00

$5.69

25

. GASKET

90430-06M03-00

$2.85

26

. O-RING

93210-52454-00

Unavailable

27

OIL SEAL(6R7)

93101-25M50-00

Unavailable

28

. O-RING

93210-46M16-00

$7.59

29

CARB REPAIR KIT

6M6-W0093-10-00

Unavailable

30

. O-RING

6K8-14562-00-00

$1.78

31

. PLATE, NEEDLE FITTING

6K8-14946-10-00

$29.09

32

. GASKET

6K8-14536-11-00

$8.35

33

. O-RING

6K8-14561-00-00

Unavailable

34

. WASHER

6K8-14537-00-00

$3.13

35

. O-RING

6K8-14564-00-00

$8.73

36

. GASKET, FUEL PUMP 1

6K8-24431-20-00

$13.99

37

. SCREW, PILOT

6M6-14923-10-00

Unavailable

38

WASHER,NEEDLE

812-14235-00-00

$2.44

39

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

40

. DIAPHRAGM

6K8-24411-10-00

Unavailable

41

. VALVE, CHECK

6K8-24421-10-00

$25.07

42

NEEDLE

61X-14916-16-00

$22.25

43

. O-RING

6K8-14563-00-00

Unavailable
