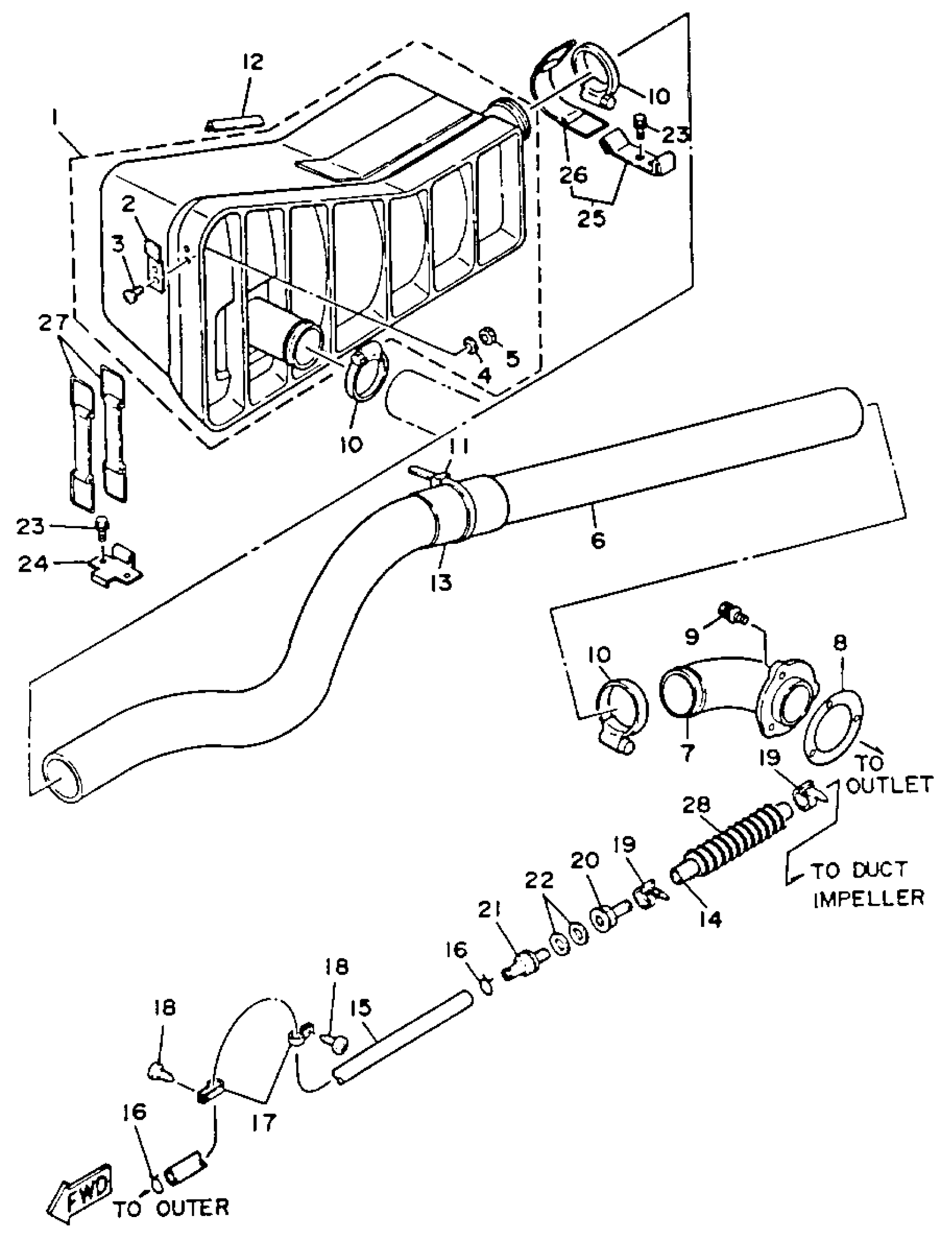

Yamaha WR650R (WAVERUNNER LX) FK7 1993 EXHAUST 2 Diagram
#
1
WATER LOCK COMP.
EU0-67550-03-00
Unavailable
2
HOOK B
EU0-67567-00-00
Unavailable
3
SCREW, PANHEAD (A93)
98580-05525-00
$2.00
4
. WASHER, PLAIN
92990-05200-00
Unavailable
5
NUT, FLANGE
95720-05300-00
Unavailable
6
HOSE, EXHAUST
EU0-U7555-00-00
Unavailable
7
THRU-HULL
EU0-67565-00-00
Unavailable
8
PACKING
EU0-67525-01-00
Unavailable
9
BOLT, WITH WASHER (EW3)
90119-05912-00
Unavailable
10
BAND, HOSE 52
90601-152U3-00
Unavailable
11
BAND
90601-200U2-00
Unavailable
12
MAT 6
EU0-67593-70-00
Unavailable
13
HOSE, PROTECTOR
EU0-67576-00-00
Unavailable
14
HOSE
90445-13M18-00
Unavailable
15
HOSE
90445-13M05-00
Unavailable
16
. CLIP
90467-12M11-00
Unavailable
17
CLIP, NYLON 17
90600-91728-00
Unavailable
18
SCREW
90149-50116-00
Unavailable
19
CLAMP (6E5)
90465-13M11-00
Unavailable
20
CONNECTION, THRU-HULL 1/4
90604-80757-00
Unavailable
21
CONNECTION, THRU-HULL 1/4
90604-80758-00
Unavailable
22
GASKET
90430-13909-00
Unavailable
23
BOLT, WITH WASHER
90119-06913-00
Unavailable
24
HOOK D
EU0-67568-00-00
Unavailable
25
HOOK C
EU0-67570-00-00
Unavailable
26
BAND
EU0-67569-02-00
Unavailable
27
BAND
EU0-67569-02-00
Unavailable
28
HOSE
90446-20M39-00
Unavailable
