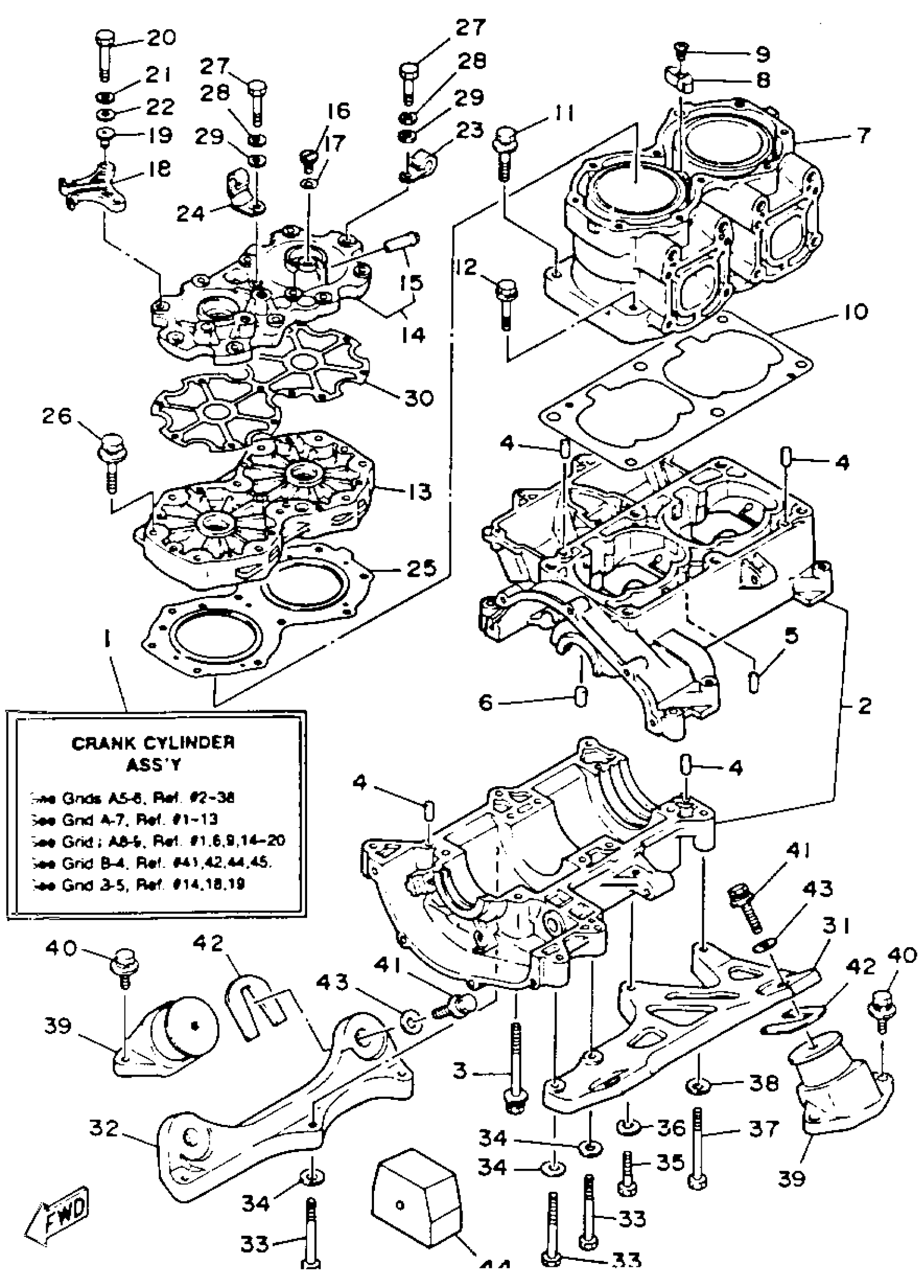

Yamaha WR650R (WAVERUNNER LX) FK7 1993 CRANKCASE CYLINDER Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

6M6-W0090-06-8P

Unavailable

2

CRANKCASE ASSY

6M6-15100-00-8S

Unavailable

3

BOLT, WITH WASHER

90119-08M55-00

Unavailable

4

PIN, DOWEL (614)

93606-12019-00

$4.24

5

PIN (2H7)

93603-10049-00

Unavailable

6

PIN, DOWEL (8H1)

93604-07141-00

$2.17

7

CYLINDER 1

6M6-11311-01-8S

Unavailable

8

ANODE

6E5-11325-00-00

Unavailable

9

SCREW, FLAT HEAD

98780-04016-00

Unavailable

10

GASKET, CYLINDER

6M6-11351-A2-00

Unavailable

11

BOLT, WITH WASHER

90119-10M56-00

Unavailable

12

BOLT (6F5)

90119-10M07-00

$4.82

13

HEAD, CYLINDER 1

6M6-11111-00-8S

Unavailable

14

COVER, CYLINDER HEAD 1

6M6-11191-00-8S

Unavailable

15

. NIPPLE

6K8-51129-00-00

Unavailable

16

PLUG, STRAIGHT SCREW

90340-08002-00

Unavailable

17

GASKET

90430-08003-00

Unavailable

18

CLAMP

90464-08M30-00

Unavailable

19

COLLAR

90387-06M05-00

Unavailable

20

BOLT (682)

97095-06040-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

CLAMP

90464-07M33-00

Unavailable

24

CLAMP

90465-06M35-00

Unavailable

25

GASKET, CYLINDER HEAD 1

6M6-11181-A1-00

Unavailable

26

BOLT, WITH WASHER

90119-08019-00

Unavailable

27

BOLT(JF7)

97080-06030-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

WASHER, PLAIN (646)

92990-06600-00

Unavailable

30

GASKET, HEAD COVER 1

6M6-11193-A1-00

Unavailable

31

BRACKET, FRONTT UPPER 1

6M6-21415-00-94

Unavailable

32

BRACKET, REAR UPPER 1

6M6-21425-01-94

Unavailable

33

BOLT, WITH WASHER

90119-10M23-00

Unavailable

34

WASHER, PLATE

92990-10600-00

Unavailable

35

BOLT, WITH WASHER

90119-10M00-00

Unavailable

36

WASHER, PLATE

92990-10600-00

Unavailable

37

BOLT, WITH WASHER

90119-10M03-00

Unavailable

38

WASHER, PLATE

92990-10600-00

Unavailable

39

MOUNT RUBBER

6M6-44517-A2-94

Unavailable

40

BOLT, WITH WASHER

90119-08038-00

Unavailable

41

BOLT, WITH WASHER

90119-08904-00

Unavailable

42

SHIM (T=0.1)

EU0-67354-A0-00

Unavailable

42

SHIM (T=0.3)

EU0-67354-B0-00

Unavailable

42

SHIM (T=0.5)

EU0-67354-C0-00

Unavailable

42

SHIM (T=1.0)

EU0-67354-D0-00

Unavailable

42

SHIM (T=2.0)

EU0-67354-E0-00

Unavailable

43

PLATE

EU0-67324-00-00

Unavailable

44

STOPPER, UPPER MOUNT RUBBER

6M6-44532-00-00

Unavailable

44

STOPPER, UPPER MOUNT RUBBER

6M6-44532-10-00

Unavailable
