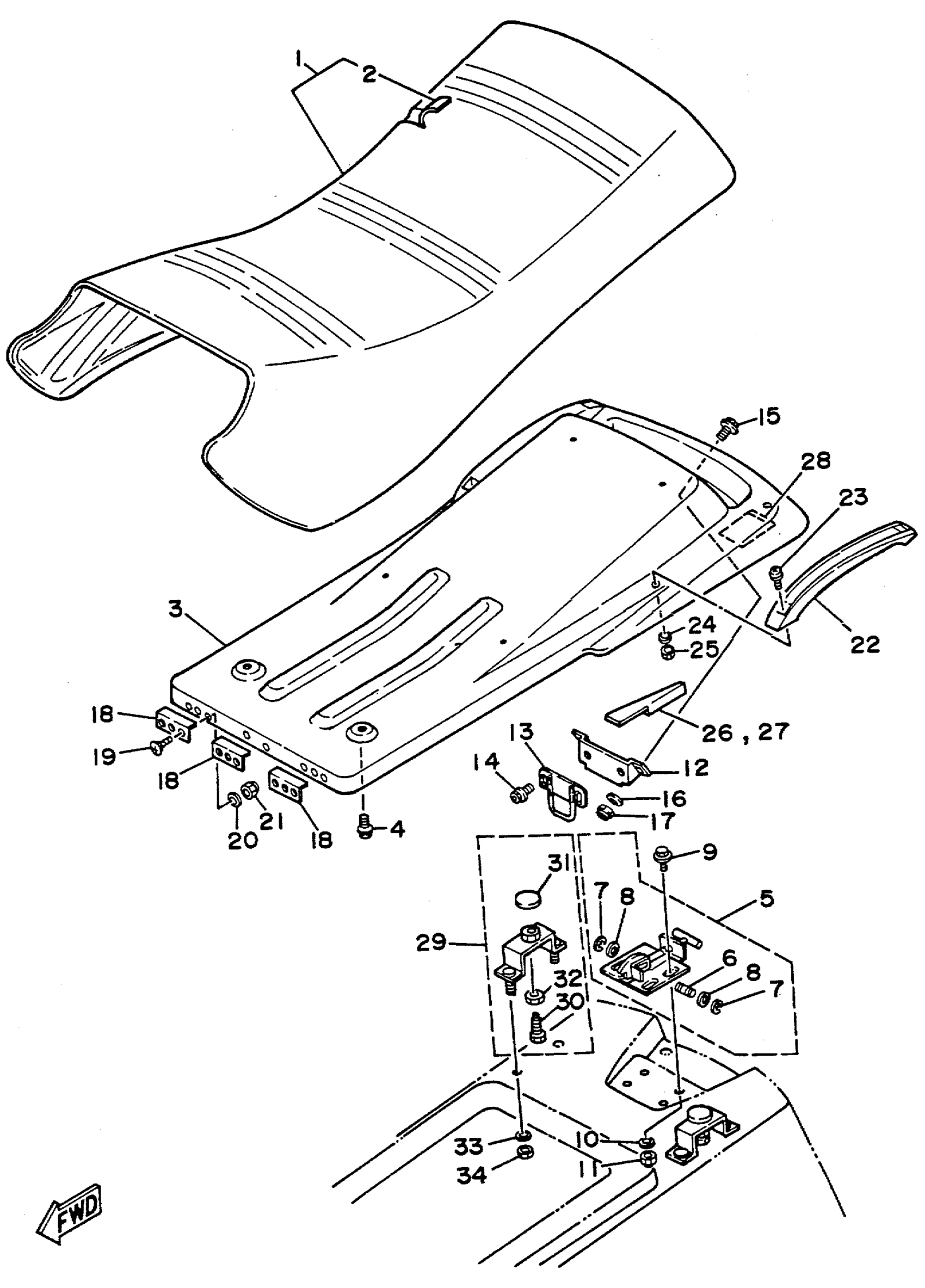

Yamaha WR650Q (WAVE RUNNER LX) 1992 SEAT Diagram
#
1
SEAT, TANDEM ASSEMBLY
FK7-6371A-00-00
Unavailable
2
COVER, SEAT
FK7-U371B-00-00
Unavailable
3
BASE, SEAT COMP.
EU0-63702-30-00
Unavailable
4
BOLT, W/WASHER
90119-06034-00
Unavailable
5
SEAT LOCK ASSEMBLY
EU0-63850-00-00
Unavailable
6
. PIN
EU0-63774-00-00
Unavailable
7
CIRCLIP(22K)
99080-05600-00
$8.49
8
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
9
BOLT, WITH WASHER
90119-06901-00
Unavailable
10
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
11
NUT, SELF-LOCKING
95720-06300-00
Unavailable
12
BASE, SEAT COMP.
EU0-63702-30-00
Unavailable
13
HOOK END
EU0-63779-00-00
Unavailable
14
BOLT, WITH WASHER
90119-06926-00
Unavailable
15
SCREW, WITH WASHER
90159-06902-00
Unavailable
16
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
17
NUT, SELF-LOCKING
95720-06300-00
Unavailable
18
STOPPER SEAT 2
EU0-U3789-00-00
Unavailable
19
. SCREW, FLAT HEAD
98780-05016-00
Unavailable
20
. WASHER, PLAIN
92990-05200-00
Unavailable
21
NUT, FLANGE
95720-05300-00
Unavailable
22
GRIP, HAND
EU0-6271B-00-00
Unavailable
23
SCREW, WITH WASHER
90159-06902-00
Unavailable
24
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
25
NUT, FLANGE
95780-06300-00
Unavailable
26
MAT (LH)
EU0-67593-10-00
Unavailable
27
MAT (RH)
EU0-67593-20-00
Unavailable
28
LINER, DAMPER
EU0-63765-00-00
Unavailable
29
DAMPER, SEAT ASSEMBLY
EU0-63760-02-00
Unavailable
30
. BOLT
EU0-63762-00-00
Unavailable
31
. PLATE
EU0-63763-01-00
Unavailable
32
. NUT
EU0-63766-00-00
Unavailable
33
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
34
NUT, SELF-LOCKING
95720-06300-00
Unavailable
