1992 Yamaha Wave Runner LX (WR650Q) Hull Deck 2 Diagram

← All diagrams

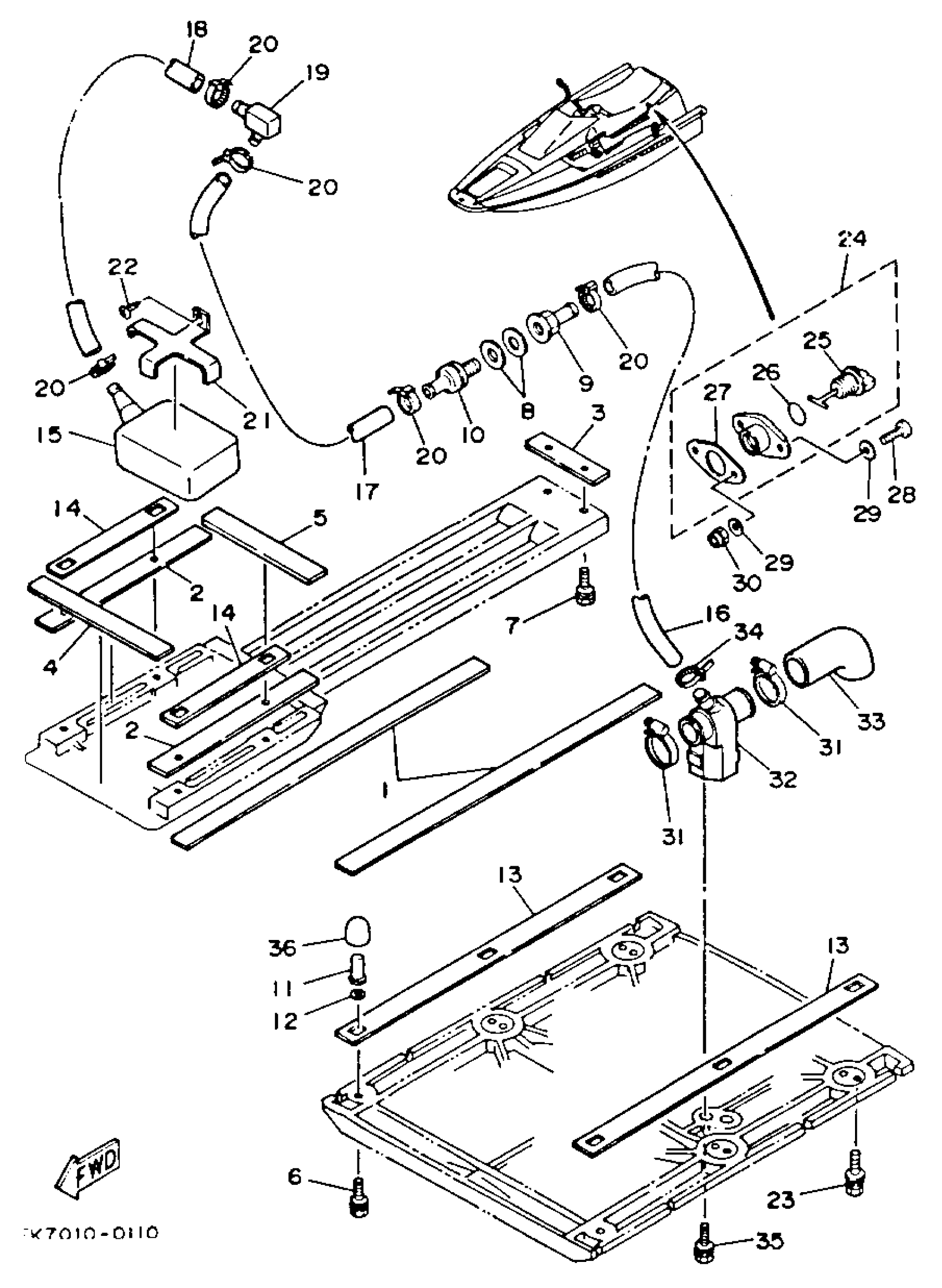

Find the part on the Hull Deck 2 diagram for your 1992 Yamaha Wave Runner LX (WR650Q), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Wave Runner LX (WR650Q) Hull Deck 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PACKING, 3

EU0-U2284-01-00

1
Out of stock

2

PACKING 4

EU0-U2284-31-00

1
Out of stock

3

PACKING 5

EU0-U2284-41-00

1
Out of stock

4

PACKING 6

EU0-U2284-51-00

1
Out of stock

5

PACKING 7

EU0-U2284-61-00

1
Out of stock

6

BOLT, WITH WASHER

90119-06896-00

1
Out of stock

7

BOLT, WITH WASHER

90119-06900-00

1
Out of stock

8

GASKET

90430-13909-00

1
Out of stock

9

CONNECTION, THRU-HULL 1/4

90604-80759-00

1
Out of stock

10

CONNECTION, THRU-HULL 1/4

90604-80760-00

1
Out of stock

11

NUT, POP

90179-06935-00

1
Out of stock

12

WASHER

90201-09924-00

1
Out of stock

13

PLATE, STOPPER A (A)

EU0-67367-00-00

1
Out of stock

14

PLATE, STOPPER B (B)

EU0-67367-30-00

1
Out of stock

15

STRAINER, BILGE

F4R-6761D-00-00

1
Out of stock

16

HOSE (L240)

90445-14M05-00

1
Out of stock

17

HOSE

90445-14M03-00

1
Out of stock

18

HOSE (L450)

90445-14M04-00

1
Out of stock

19

JOINT, HOSE

6K8-51162-00-00

1
Out of stock

20

CLAMP

90465-10098-00

1
Out of stock

21

BASE

EU0-67618-00-00

1
Out of stock

22

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

1
Out of stock

23

BOLT, WITH WASHER

90119-06914-00

1
Out of stock

24

DRAIN PLUG ASSY

EU0-62280-00-00

1
Out of stock

25

. PLUG, DRAIN

EU0-62282-00-00

1
Out of stock

26

. O-RING

EU0-62283-00-00

1
Out of stock

27

. PACKING DRAIN (EU0)

EU0-62285-01-00

1
Out of stock

28

SCREW, PAN HEAD

98580-05020-00

1
Out of stock

29

. WASHER, PLAIN

92990-05200-00

1
Out of stock

30

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

1
Out of stock

31

HOSE CLAMP ASSY

90450-32097-00

1
Out of stock

32

BODY, VALVE

6K8-7610K-01-00

1
Out of stock

33

HOSE SUCTION

6K8-51141-00-00

1
Out of stock

34

CLAMP

90465-10098-00

1
Out of stock

35

BOLT, WITH WASHER

90119-06901-00

1
Out of stock

36

CLING

90190-06013-00

1
Out of stock
