JET UNIT

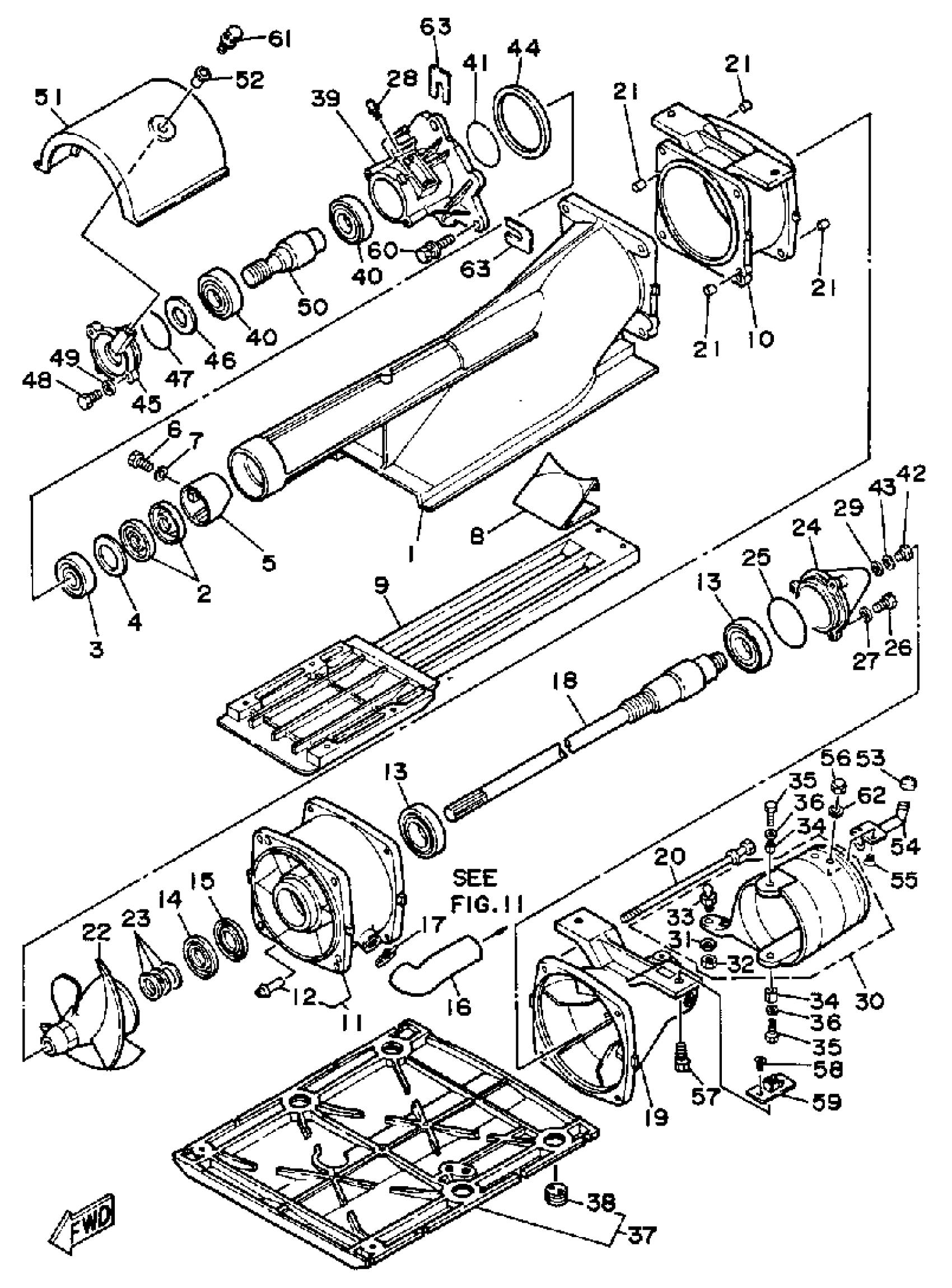

1991 Yamaha WR650P JET Unit Diagram
Find the part on the JET Unit diagram for your 1991 Yamaha WR650P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
DUCT, INTAKE
6K8-51311-00-94
2
. OIL SEAL, S-TYPE
93101-17M31-00
5
SPACER
6K8-51348-00-8S
6
BOLT(7U8)
97080-06020-00
8
PLATE 3
6K8-51347-00-8S
9
SCREEN, INTAKE
6K8-51333-00-8S
10
HOUSING, IMPELLER
6K8-51312-00-8S
11
DUCT, IMPELLER
99999-03840-00
12
. PIPE
6K8-51385-00-00
13
BEARING
93306-206U6-00
14
. OIL SEAL, SW-TYPE
93103-30M00-00
15
. OIL SEAL, S-TYPE
93101-30M32-00
16
HOSE, SPLASHER
6K8-51161-10-00
20
BOLT, WITH WASHER
90119-06M33-00
21
PIN, DOWEL (614)
93606-12019-00
22
IMPELLER
6M6-51321-00-94
23
SHIM (T=0.1)
6K8-45567-00-01
23
SHIM (T=0.3)
6K8-45567-00-03
23
SHIM (T=0.5)
6K8-45567-00-05
24
CAP
6K8-51326-00-94
30
NOZZLE, JET OUTPUT
6K8-51313-00-00
34
COLLAR(47X)
90387-060G7-00
35
BOLT(7U8)
97080-06020-00
37
PLATE 2
FK7-62730-00-00
38
BOLT, JACK
FK7-62732-01-00
39
HOUSING, BEARING
6K8-45331-02-00
41
. O-RING
93210-52454-00
42
BOLT(GH1)
97080-06012-00
45
PLATE
6K8-51332-00-00
48
BOLT(7U8)
97080-06020-00
50
HOUSING ASSY KIT
6K8-W5132-02-KT
51
COVER
6M6-51381-01-00
57
BOLT
90119-10906-00
58
SCREW, TAPPING (97780-40108-00)
97780-40508-00
59
NUT
90179-10919-00
63
SHIM (T=0.3) (EU0-67354-30-03)
EU0-U7354-30-03
63
SHIM (T=0.5) (EU0-67354-30-05)
EU0-U7354-30-05
63
SHIM (T=1.0) (EU0-67354-30-10)
EU0-U7354-30-10
