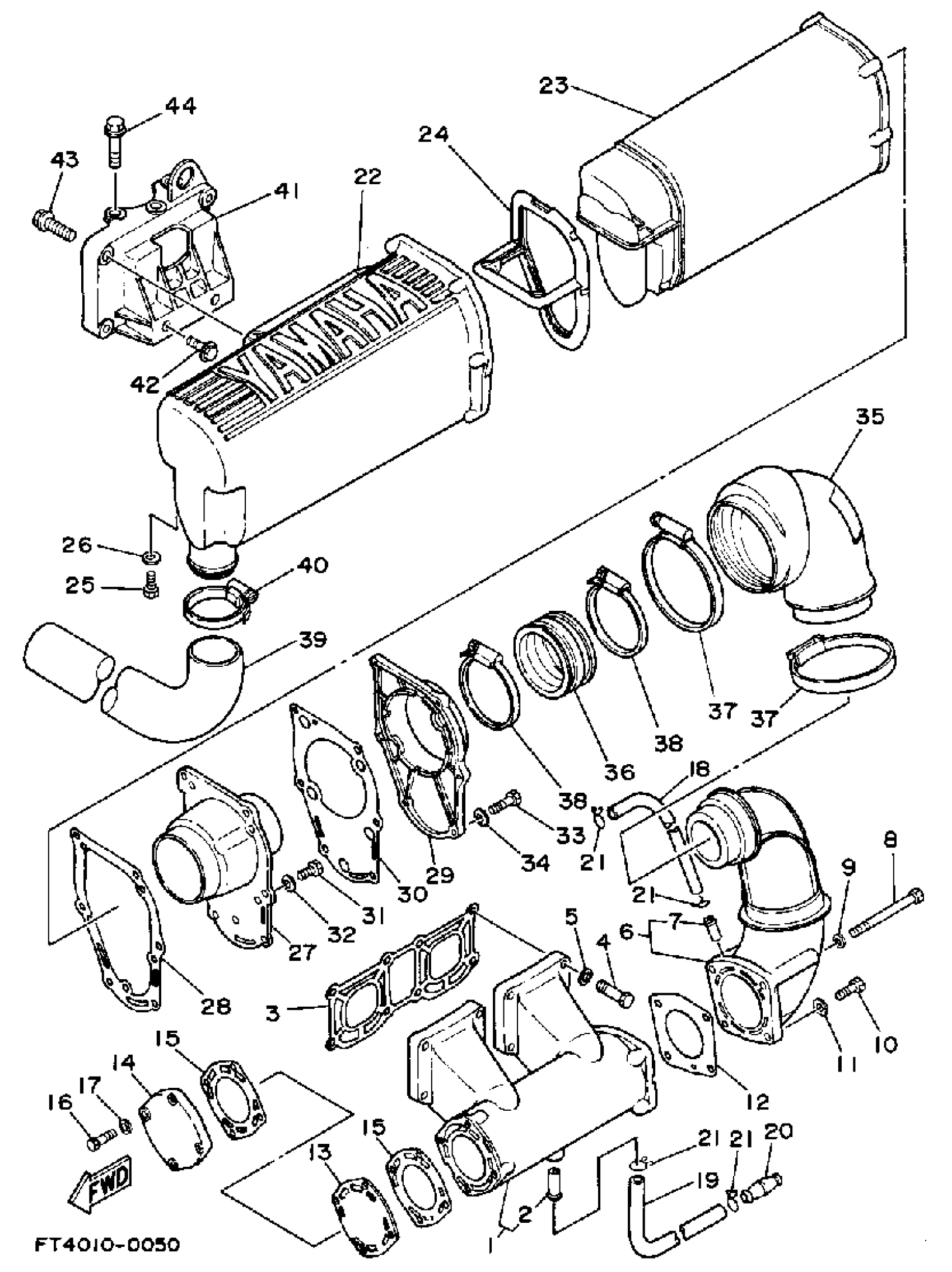

Yamaha WR650P 1991 EXHAUST 1 Diagram

#

Description

Price

1

MUFFLER L

6M6-14711-00-9M

Unavailable

2

. NIPPLE

6K8-51129-00-00

Unavailable

3

GASKET, EXHAUST PIPE

6M6-14613-A0-00

Unavailable

4

BOLT

97013-08035-00

$5.60

5

.. WASHER, PLATE

92990-08600-00

Unavailable

6

RING, JOINT

6M6-14712-00-9M

Unavailable

7

. NIPPLE

6K8-51129-00-00

Unavailable

8

BOLT,HEXAGON

97013-08085-00

Unavailable

9

.. WASHER, PLATE

92990-08600-00

Unavailable

10

BOLT (682)

97013-08025-00

$8.49

11

.. WASHER, PLATE

92990-08600-00

Unavailable

12

GASKET, MUFFLER DAMPER 2

6M6-14749-A1-00

Unavailable

13

EXHAUST INNER CVR.

6M6-41111-00-00

Unavailable

14

PROTECTOR, MUFFLER 1

6M6-14718-01-8S

Unavailable

15

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

Unavailable

16

BOLT

90101-06M27-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

HOSE (L380)

90445-14M25-00

Unavailable

19

HOSE

90445-14M03-00

Unavailable

20

CONNECTION

6M6-51142-00-00

Unavailable

21

CLIP(6M6)

90467-13M13-00

Unavailable

22

MUFFLER R

6M6-14721-00-8S

Unavailable

23

SILENCER, EXHAUST

6M6-14753-00-8S

Unavailable

24

SEAL, RUBBER 1

6M6-15761-00-00

Unavailable

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable

27

DIFFUSER

6M6-14785-00-8S

Unavailable

28

GASKET, SILENCER

6M6-14755-A0-00

Unavailable

29

OUTER COVER, EXHAUST

6M6-41113-00-8S

Unavailable

30

GASKET, EXHAUST OUTER COVER

6M6-41114-A0-00

Unavailable

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

32

WASHER, PLAIN (646)

92990-06600-00

Unavailable

33

BOLT(JF7)

97080-06030-00

Unavailable

34

WASHER, PLAIN (646)

92990-06600-00

Unavailable

35

JOINT, EXHAUST L

6M6-14615-00-00

Unavailable

36

JOINT, EXHAUST R

6M6-14625-00-00

Unavailable

37

CLAMP, HOSE

90460-90M11-00

Unavailable

38

CLAMP, HOSE(6R7)

90460-70M16-00

Unavailable

39

PIPE, OUTLET

6K8-14752-00-00

Unavailable

40

BAND, HOSE 52

90601-15272-00

Unavailable

41

STAY, MUFFLER 1

6M6-14771-00-00

Unavailable

42

BOLT WASHER BASED HEAD (6M6)

90105-10M49-00

Unavailable

43

BOLT, WASHER BASED

90105-10M45-00

Unavailable

44

BOLT(3JP)

97017-10045-00

Unavailable
