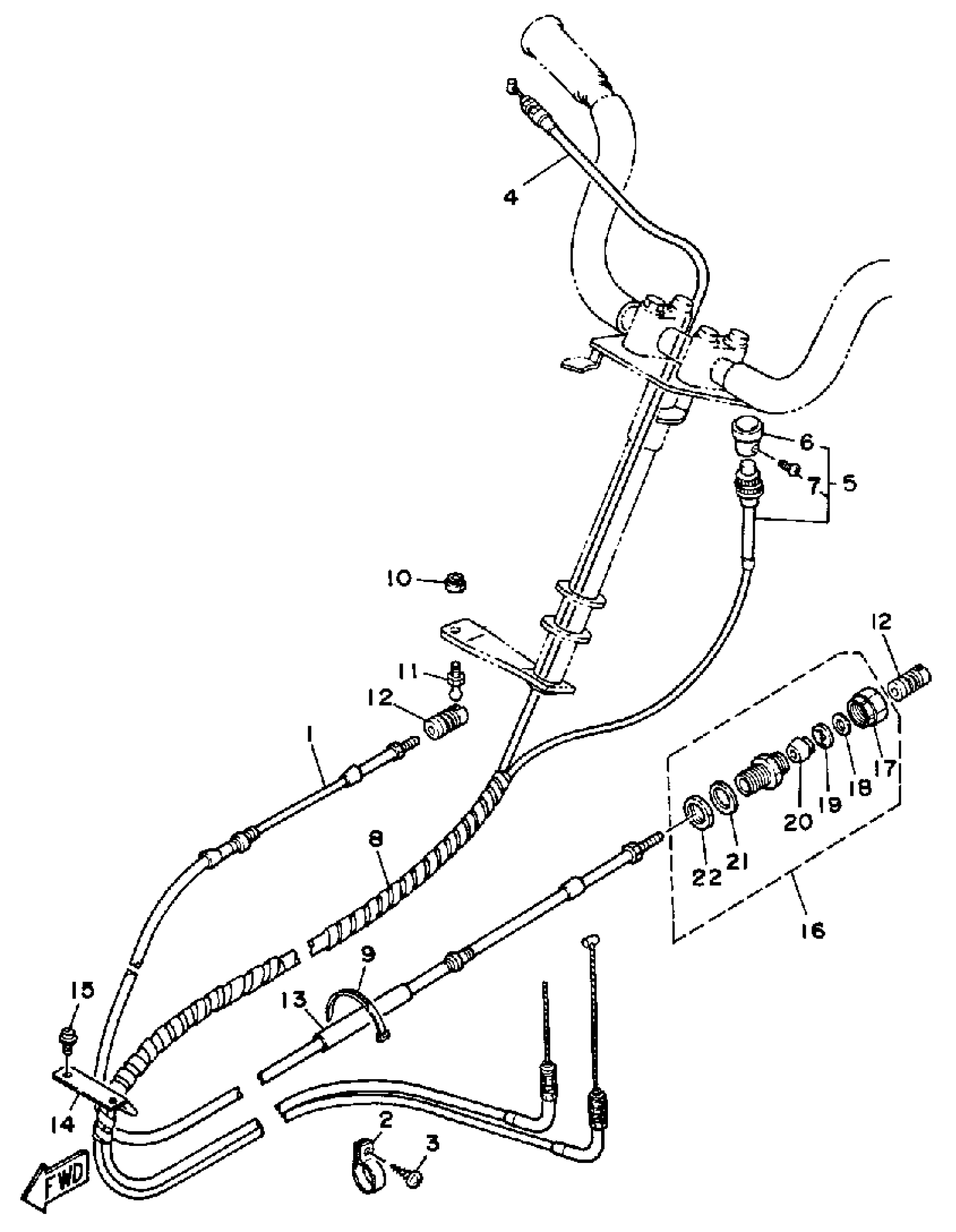

Yamaha WR650P 1991 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

EU0-U1481-00-00

Unavailable

2

CLIP, NYLON 17

90600-91728-00

Unavailable

3

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

4

CABLE, THROTTLE 1

EU0-U7252-01-00

Unavailable

5

CABLE CHOKE

EU0-U7242-01-00

Unavailable

6

. KNOB

EU0-67243-00-00

Unavailable

7

. SCREW

90149-03930-00

Unavailable

8

SPI-LAP 11

90699-36100-00

Unavailable

9

BAND

90601-200U1-00

Unavailable

10

NUT, FLANGE

95780-06300-00

Unavailable

11

SHAFT, JOINT BALL

EU0-U1461-10-00

Unavailable

12

SHAFT,JOINT BALL

EU0-61461-30-00

Unavailable

13

PIPE SLEEVE

EU0-61474-00-00

Unavailable

14

GUIDE, CABLE

EU0-61557-01-00

Unavailable

15

SCREW, W/WASHER

97680-04316-00

Unavailable

16

CONNECTOR, CABLE

EU0-67267-00-00

Unavailable

17

. CAP

EU0-62694-00-00

Unavailable

18

. WASHER 30

EU0-61446-00-00

Unavailable

19

. STOPPER

EU0-61486-00-00

Unavailable

20

. SEAL, PIPE 30

EU0-61435-00-00

Unavailable

21

. PACKING (C)

EU0-61438-00-00

Unavailable

22

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable
