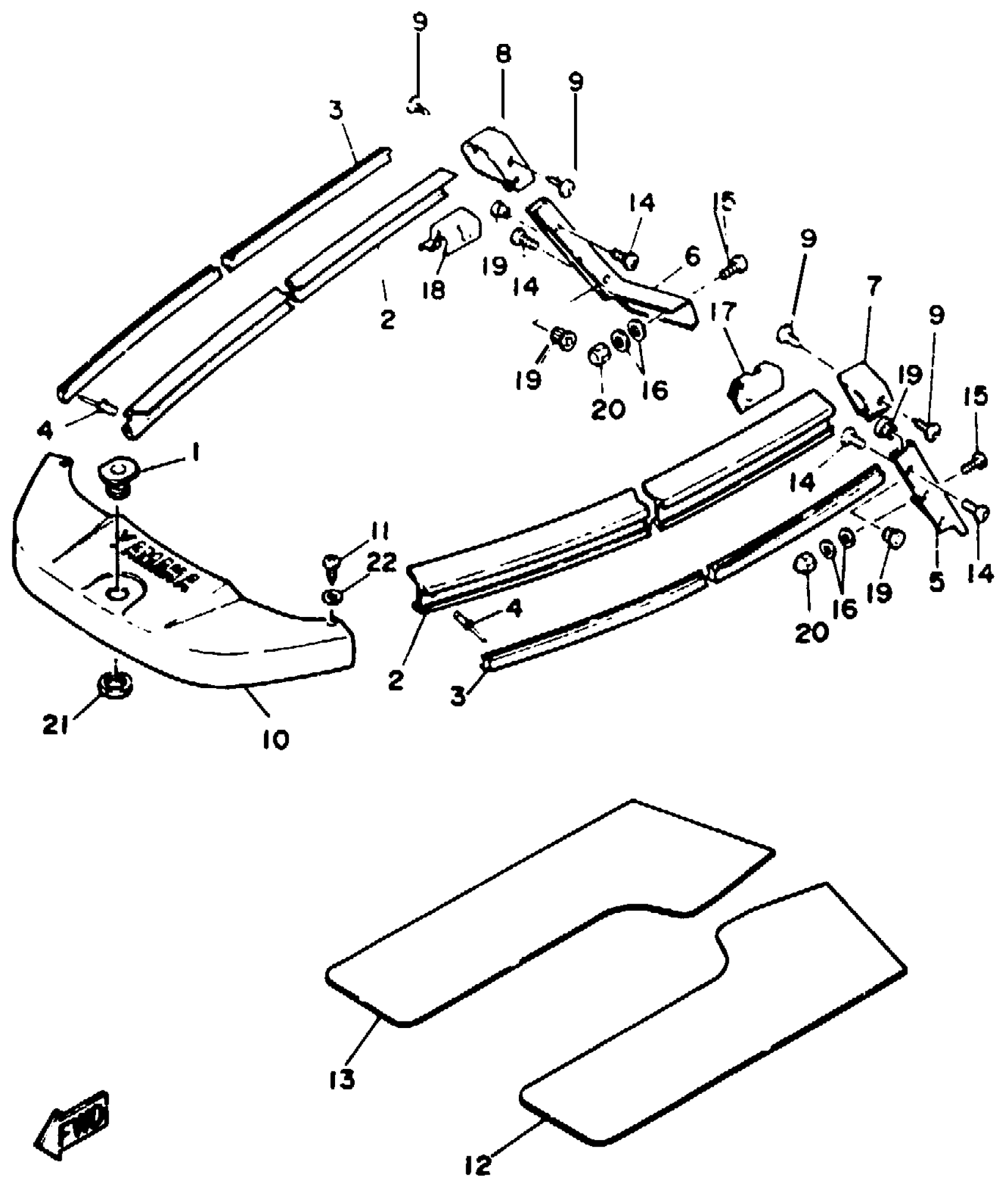

Yamaha WR650D (WAVE RUNNER LX) 1990 GUNWALE - MAT Diagram

#

Description
Price

1

ROPE HOLE

EU0-61651-30-00

Unavailable

2

GUNWALE, SIDE

EU0-62512-40-00

Unavailable

3

GUNWALE 29 (90697-25025)

90697-25024-00

Unavailable

4

RIVET, BLIND

90267-48932-00

Unavailable

5

GUNWALE, STERN (LH)

EU0-U2513-V0-00

Unavailable

6

GUNWALE, STERN (RH)

EU0-U2513-W0-00

Unavailable

7

CAP, GUNWALE STERN (LH)

EU0-62574-V0-00

Unavailable

8

CAP, GUNWALE STERN (RH)

EU0-62574-W0-00

Unavailable

9

SCREW

90149-05935-00

Unavailable

10

GUNWALE, BOW

EU0-62511-30-00

Unavailable

11

SCREW

90149-05937-00

Unavailable

12

MAT, UPPER (LH)

FK7-63581-10-00

Unavailable

13

MATT, UPPER (RH)

FK7-63581-20-00

Unavailable

14

SCREW

90149-05933-00

Unavailable

15

SCREW

90149-05934-00

Unavailable

16

. WASHER, PLAIN

92990-05200-00

Unavailable

17

GUNWALE, INNER (LH)

EU0-62519-V0-00

Unavailable

18

INNER GUNWALE (RH)

EU0-62519-W0-00

Unavailable

19

NUT

90179-05924-00

Unavailable

20

.. NUT

95380-05800-00

Unavailable

21

NUT

EU0-61652-00-00

Unavailable

22

WASHER, PLATE

90201-05800-00

Unavailable
