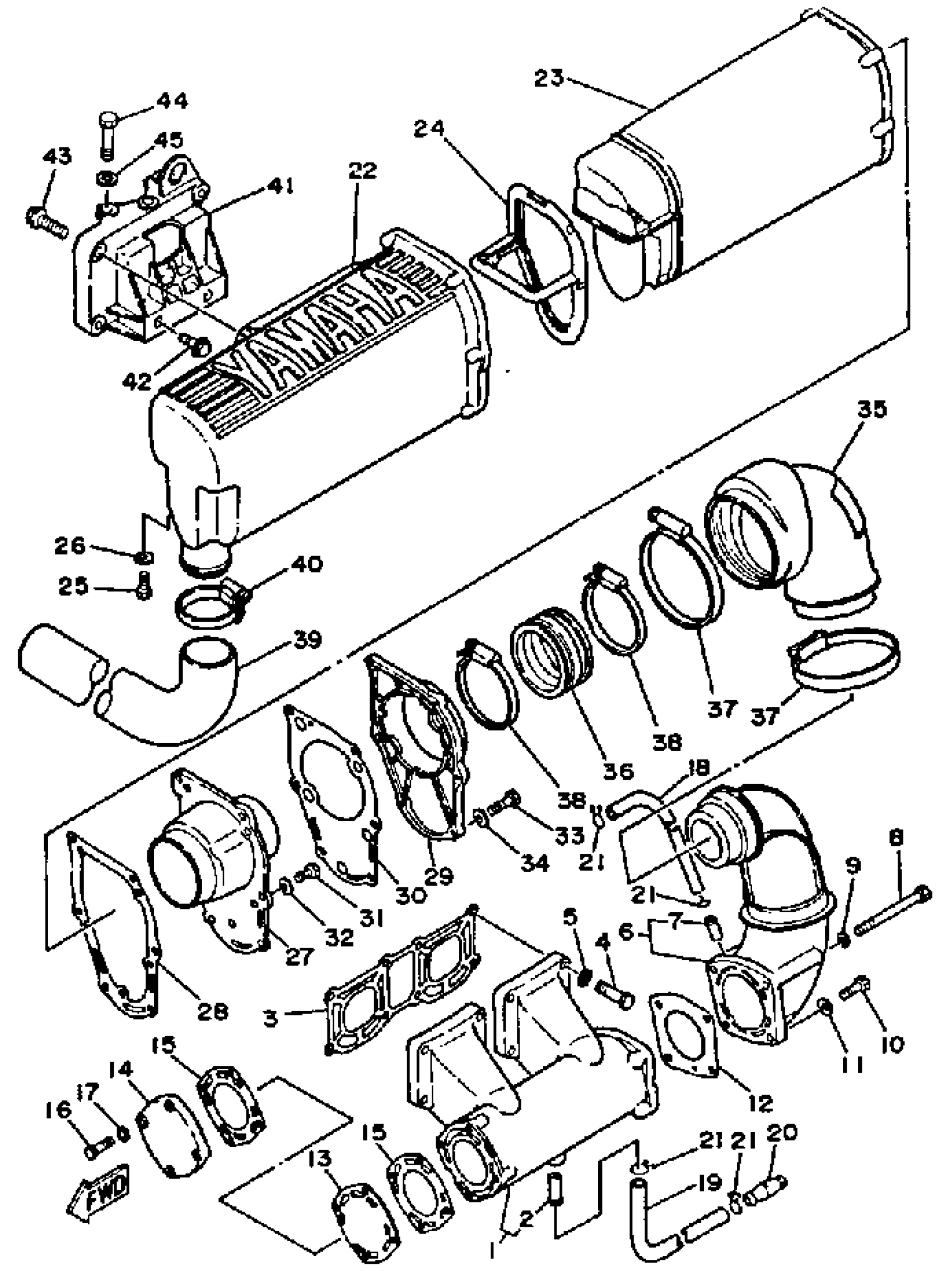

Yamaha WR650D (WAVE RUNNER LX) 1990 EXHAUST 1 Diagram
#
1
MUFFLER L
6M6-14711-00-9M
Unavailable
2
. NIPPLE
6K8-51129-00-00
Unavailable
3
GASKET, EXHAUST PIPE
6M6-14613-A0-00
Unavailable
4
BOLT
97013-08035-00
$5.60
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
RING, JOINT
6M6-14712-00-9M
Unavailable
7
. NIPPLE
6K8-51129-00-00
Unavailable
8
BOLT,HEXAGON
97013-08085-00
Unavailable
9
.. WASHER, PLATE
92990-08600-00
Unavailable
10
BOLT (682)
97013-08025-00
$8.49
11
.. WASHER, PLATE
92990-08600-00
Unavailable
12
GASKET, MUFFLER DAMPER 2
6M6-14749-A1-00
Unavailable
13
EXHAUST INNER CVR.
6M6-41111-00-00
Unavailable
14
PROTECTOR, MUFFLER 1
6M6-14718-01-8S
Unavailable
15
GASKET, MUFFLER DAMPER 1
6M6-14739-A2-00
Unavailable
16
BOLT
90101-06M27-00
Unavailable
17
WASHER, PLAIN (646)
92990-06600-00
Unavailable
18
HOSE (L380)
90445-14M25-00
Unavailable
19
HOSE
90445-14M03-00
Unavailable
20
CONNECTION
6M6-51142-00-00
Unavailable
21
CLIP(6M6)
90467-13M13-00
Unavailable
22
MUFFLER R
6M6-14721-00-8S
Unavailable
23
SILENCER, EXHAUST
6M6-14753-00-8S
Unavailable
24
SEAL, RUBBER 1
6M6-15761-00-00
Unavailable
25
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
26
WASHER, PLAIN (646)
92990-06600-00
Unavailable
27
DIFFUSER
6M6-14785-00-8S
Unavailable
28
GASKET, SILENCER
6M6-14755-A0-00
Unavailable
29
OUTER COVER, EXHAUST
6M6-41113-00-8S
Unavailable
30
GASKET, EXHAUST OUTER COVER
6M6-41114-A0-00
Unavailable
31
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
32
WASHER, PLAIN (646)
92990-06600-00
Unavailable
33
BOLT
90101-06M27-00
Unavailable
34
WASHER, PLAIN (646)
92990-06600-00
Unavailable
35
JOINT, EXHAUST L
6M6-14615-00-00
Unavailable
36
JOINT, EXHAUST R
6M6-14625-00-00
Unavailable
37
CLAMP, HOSE
90460-90M11-00
Unavailable
38
CLAMP, HOSE(6R7)
90460-70M16-00
Unavailable
39
PIPE, OUTLET
6K8-14752-00-00
Unavailable
40
BAND, HOSE 52
90601-15272-00
Unavailable
41
STAY, MUFFLER 1
6M6-14771-00-00
Unavailable
42
BOLT WASHER BASED HEAD (6M6)
90105-10M49-00
Unavailable
43
BOLT, WASHER BASED
90105-10M45-00
Unavailable
44
BOLT(3JP)
97017-10045-00
Unavailable
45
WASHER, PLATE
92990-10600-00
Unavailable
