1990 Yamaha Wave Runner LX (WR650D) Electrical 1 Diagram

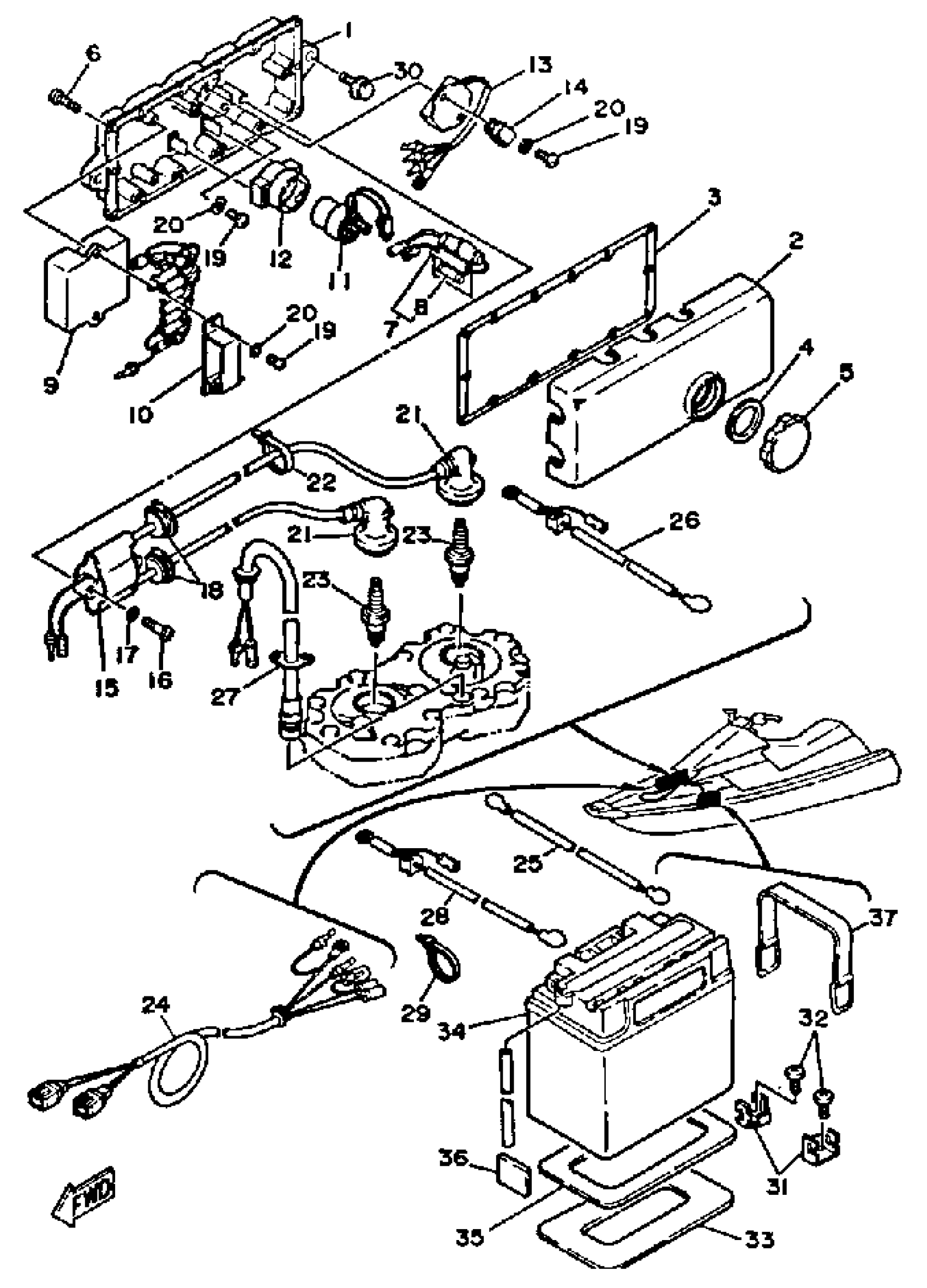

Find the part on the Electrical 1 diagram for your 1990 Yamaha Wave Runner LX (WR650D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
7
FUSE HOLDER ASSY
6K8-82150-02-00
9
C.D.I. UNIT ASSY
6M6-85540-02-00
12
HOLDER, RELAY
6M6-81952-01-00
15
IGNITION COIL ASSEMBLY
6R8-85570-00-00
21
PLUG CAP ASSEMBLY
6M6-82370-00-00
22
TOOL
UNA-VAILA-BL-EI
24
EXTENSION, WIRE LEAD
6M6-82553-01-00
25
WIRE,LEAD
62T-82117-01-00
26
WIRE, LEAD
6M6-82117-11-00
27
THERMOSWITCH ASSEMBLY
6M6-82560-00-00
28
WIRE, LEAD
6M6-82117-21-00
33
PLATE, BATTERY
EU0-68219-00-00
