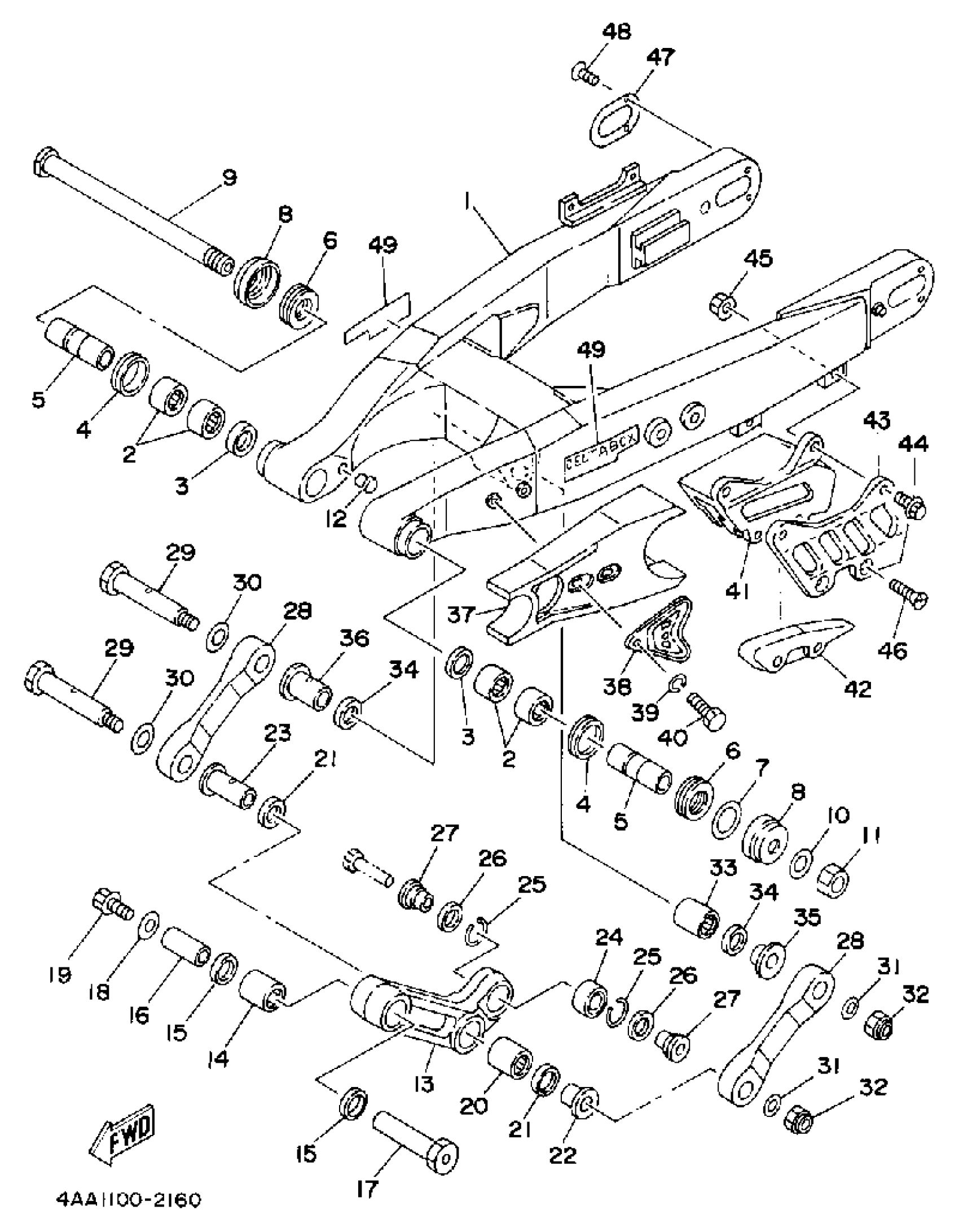

Yamaha WR500ZE (WR500Z) 1993 SWING ARM Diagram

#

Description
Price

1

REAR ARM

4AA-22110-00-00

Unavailable

2

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$38.99

3

OIL SEAL (23X)

93106-22019-00

$11.49

4

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

5

BUSH, SOLID(1LV)

90380-16158-00

$31.99

6

BEARING, THRUST (3R7)

93342-22208-00

$33.99

7

SHIM,REAR ARM

240-22127-00-00

$6.99

8

COVER, THRUST2

3R4-22129-00-00

$32.99

9

SHAFT, PIVOT

1LX-22141-00-00

Unavailable

10

WASHER, PLATE(33Y)

90201-164H4-00

$9.49

11

NUT, SELF-LOCKING

90185-16002-00

$16.99

12

PLUG (31M)

90338-10150-00

$8.49

13

ARM, RELAY

3XJ-2217A-00-00

Unavailable

14

BEARING, CYLINDRICAL(2HJ)

93315-22046-00

Unavailable

15

OIL SEAL

93109-20076-00

$15.99

16

COLLAR

90387-166X1-00

Unavailable

17

NUT

90179-10544-00

Unavailable

18

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

19

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

20

BEARING, CYLINDRICAL(2HJ)

93315-22046-00

Unavailable

21

OIL SEAL

93109-20076-00

$15.99

22

COLLAR(1LV)

90387-164N2-00

Unavailable

23

COLLAR

90387-164N3-00

Unavailable

24

BEARING(3XP)

93399-99935-00

Unavailable

25

CIRCLIP (23X)

93440-30113-00

Unavailable

26

SEAL, DUST

3XJ-22475-00-00

Unavailable

27

COLLAR(3XJ)

90387-103X9-00

Unavailable

28

ROD, CONNECTING 1

3XJ-2217F-00-00

Unavailable

29

BOLT

90109-142F4-00

Unavailable

30

WASHER, PLATE(33Y)

90201-164H4-00

$9.49

31

WASHER PLATE (3L6)

90201-14740-00

Unavailable

32

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

33

BEARING, CYLINDRICAL(2HJ)

93315-22046-00

Unavailable

34

OIL SEAL

93109-20076-00

$15.99

35

COLLAR(1LV)

90387-164N2-00

Unavailable

36

COLLAR

90387-164N3-00

Unavailable

37

SEAL, GUARD

3JD-22151-00-00

Unavailable

38

WASHER, PLATE

3JD-22156-00-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

41

SUPPORT, CHAIN

3XP-22199-03-00

Unavailable

42

PROTECTOR, CHAIN

3JD-22147-00-00

Unavailable

43

COVER, THRUST 1

3JD-22128-00-00

Unavailable

44

BOLT, FLANGE

95817-06025-00

Unavailable

45

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

46

SCREW, FLAT HEAD(3XP)

98707-06050-00

Unavailable

47

PATCH A

3XJ-22355-00-00

Unavailable

48

SCREW, FLAT

98707-04010-00

Unavailable

49

EMBLEM, REAR ARM

4AA-2218A-00-00

Unavailable
