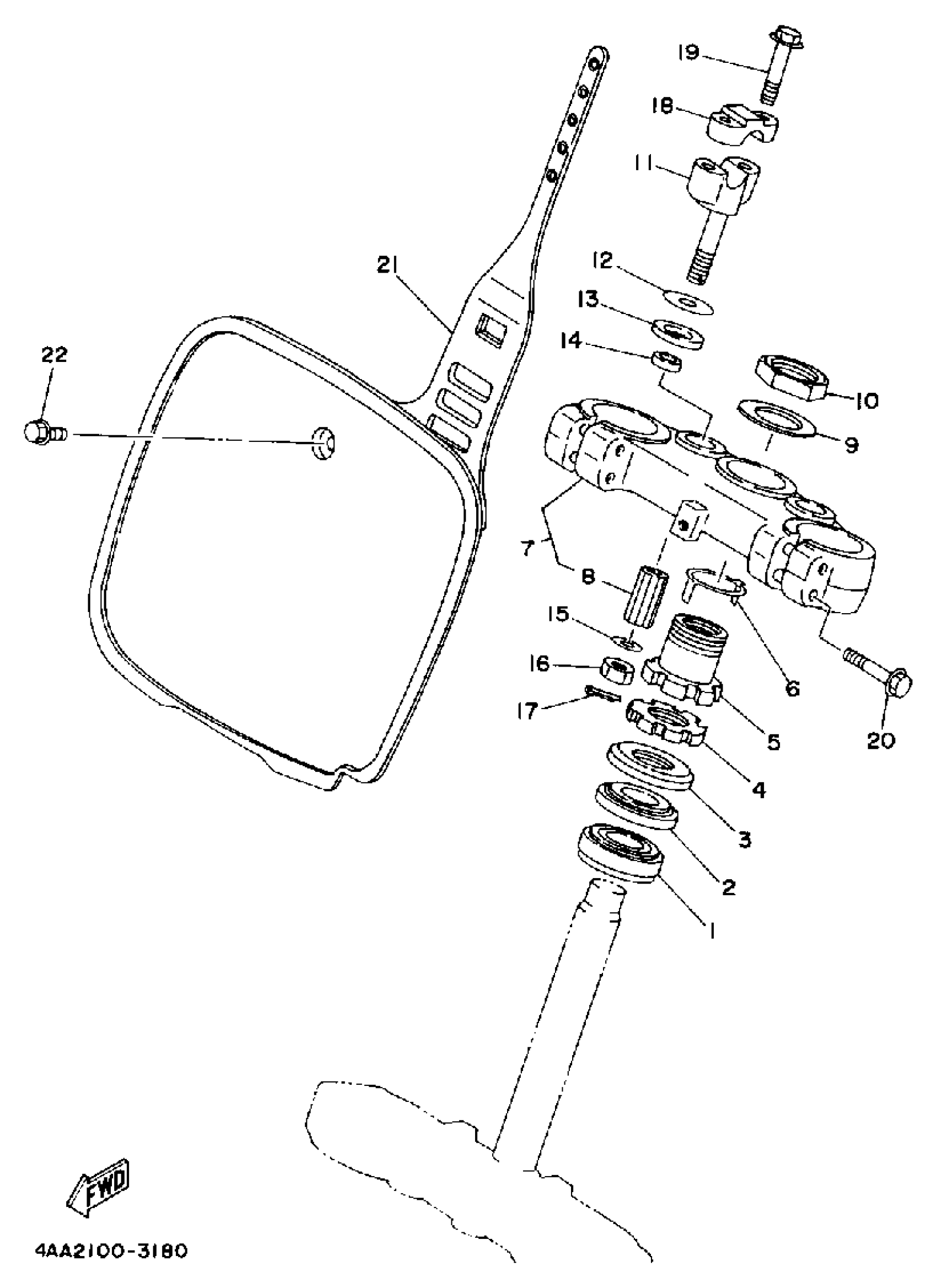

Yamaha WR500ZE (WR500Z) 1993 STEERING Diagram
#
Description
Price
3
COVER, BALL RACE 2
2HG-23416-00-00
Unavailable
4
NUT
90179-28602-00
Unavailable
5
NUT(3JD)
90179-28603-00
Unavailable
6
WASHER, SPECIAL
3SP-23418-00-00
Unavailable
7
CROWN,HANDLE
4AA-W2341-00-T9
Unavailable
9
WASHER, PLATE
90201-365M5-00
Unavailable
10
NUT
90170-36394-00
Unavailable
11
HOLDER, HANDLE LOWER
4AA-23442-01-T9
Unavailable
12
WASHER, PLATE
90201-123E8-00
Unavailable
16
NUT, U
90185-10037-00
Unavailable
17
PIN, COTTER
91490-20025-00
Unavailable
18
HOLDER, HANDLE UPPER
3SP-23441-00-00
Unavailable
19
BOLT, FLANGE(3EF)
95024-08035-00
Unavailable
20
BOLT, FLANGE(3XF)
95024-08050-00
Unavailable
21
PLATE, NUMBER
3XJ-23485-01-00
Unavailable
22
BOLT, WITH WASHER(3JD)
90119-06185-00
Unavailable
