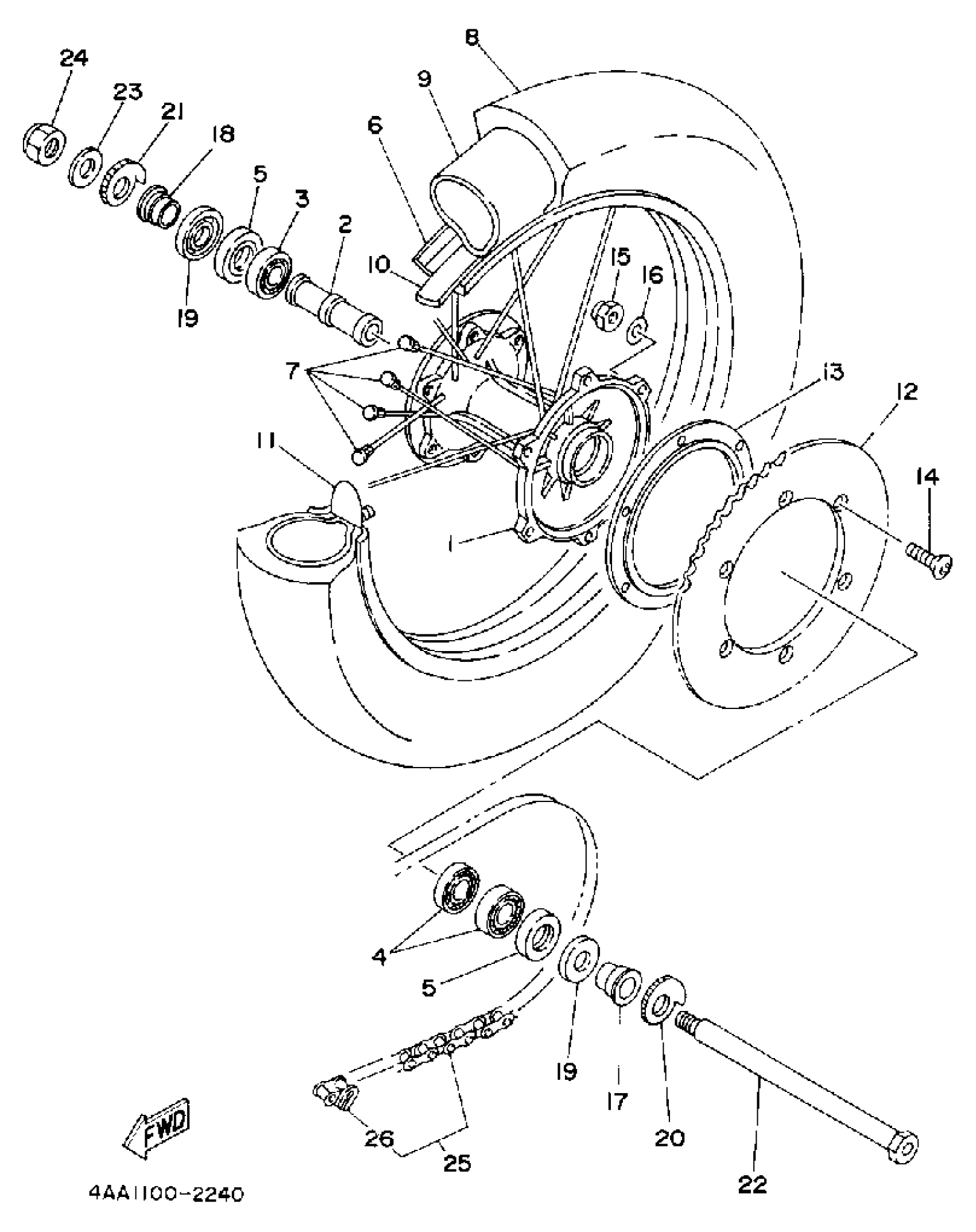

Yamaha WR500ZE (WR500Z) 1993 REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR

4EW-25311-00-00

Unavailable

2

SPACER, BEARING

3JD-25317-01-00

Unavailable

3

BEARING(8AB)

93306-00444-00

$41.99

4

BEARING(3BN)

93306-00438-00

$37.99

5

OIL SEAL(39X)

93106-28023-00

$12.49

6

RIM 2.50 (2.50-18)

94425-18495-00

Unavailable

7

SPOKE SET, REAR

4AA-25304-00-00

Unavailable

8

120/90-18 ED12J BS (120/90-18 65M ED12)

94112-181Y9-00

Unavailable

9

TUBE (5A8)

94212-18188-00

$35.99

10

BAND, RIM (2J4)

94340-18086-00

$17.99

11

SPACER, BEAD

2X5-25394-00-00

Unavailable

12

SPROCKET, DRIVEN

26A-25444-51-00

Unavailable

12

SPROCKET, DRIVEN

26A-25446-51-00

Unavailable

12

SPROCKET, DRIVEN

26A-25448-51-00

Unavailable

12

SPROCKET, DRIVEN

26A-25450-51-00

Unavailable

12

SPROCKET, DRIVEN (52T)

26A-25452-51-00

Unavailable

13

SPACER

4AA-25414-00-00

Unavailable

14

BOLT(4AA)

90109-085F2-00

Unavailable

15

NUT, U

95617-08100-00

Unavailable

16

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

17

COLLAR(4AA)

90387-200Y2-00

Unavailable

18

COLLAR

90387-2000B-00

Unavailable

19

COVER, HUB DUST

4V4-25367-00-00

Unavailable

20

PULLER, CHAIN 1

3BN-25388-00-00

Unavailable

21

PULLER, CHAIN 2

3BN-25389-00-00

Unavailable

22

AXLE, WHEEL

23X-25381-00-00

Unavailable

23

WASHER, PLATE

90201-200R4-00

Unavailable

24

NUT, SELF-LOCKING

90185-18009-00

Unavailable

25

CHAIN

94581-08118-00

Unavailable

26

JOINT, CHAIN

94681-87011-00

Unavailable
