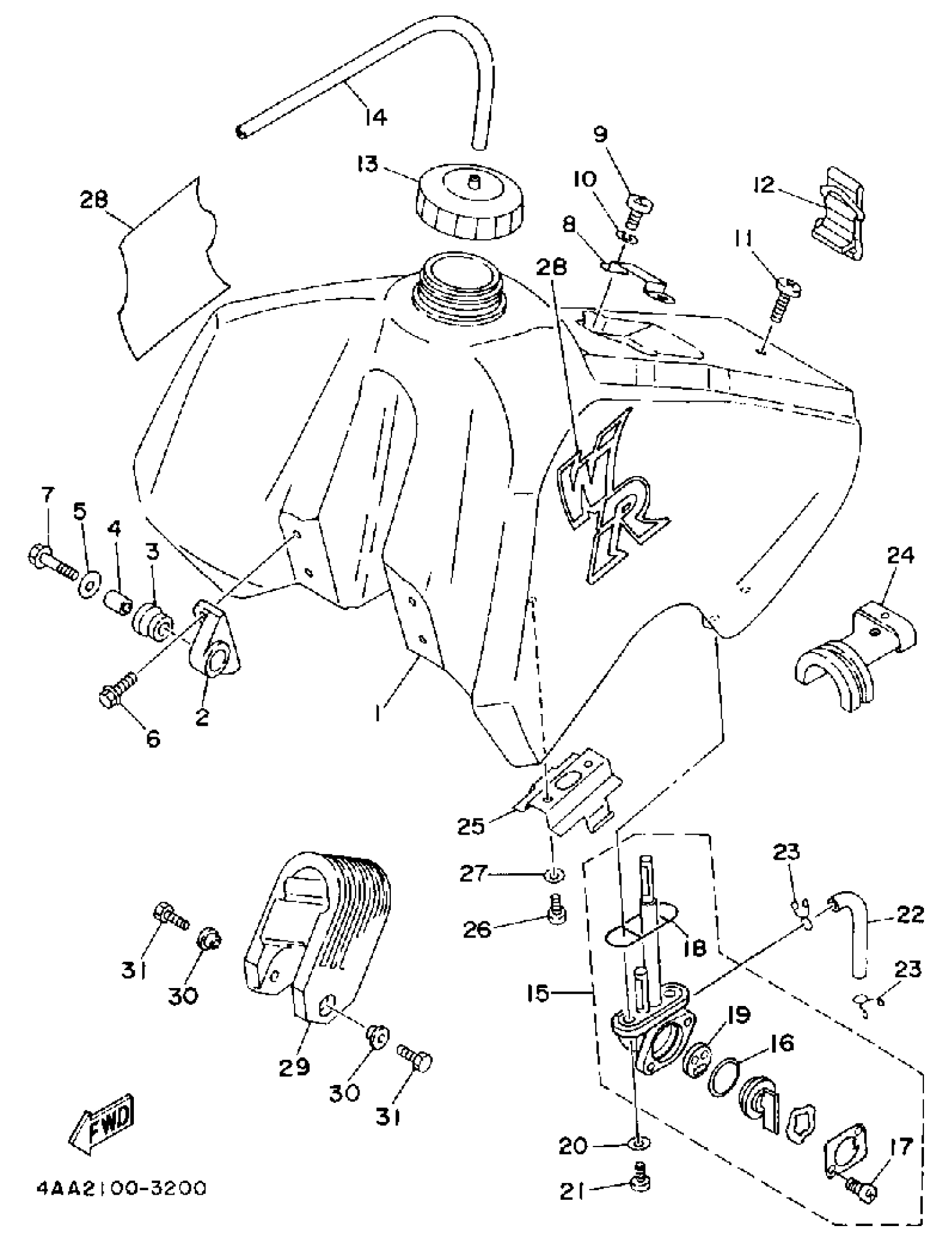

Yamaha WR500ZE (WR500Z) 1993 FUEL TANK Diagram

FUEL TANK

4AA-24110-01-00

Unavailable

HOLDER, DAMPER

5XE-24144-00-00

$23.99

GROMMET(4AA)

90480-18549-00

$10.49

COLLAR 849833160000

90387-06027-00

$8.49

WASHER, PLATE (J10)

90201-06697-00

$8.49

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

BOLT, FLANGE(4BH)

95024-06035-00

$9.49

BRACKET, SEAT

5X6-2412F-00-00

Unavailable

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

SCREW, BIND (J17)

98980-06020-00

$8.49

BAND, TANK FITTING 1

3SP-24173-00-00

$22.99

CAP ASSY

5MV-24610-00-00

$58.99

HOSE (L420)

90445-092K1-00

$12.49

FUEL COCK ASSEMBLY 1

4AA-24500-00-00

Unavailable

SEAL, COCK

3AJ-24534-01-00

Unavailable

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

O-RING

4X8-24512-00-00

Unavailable

VALVE PACKING

3AC-24523-00-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

PIPE 3

25H-24313-00-00

Unavailable

CLIP

90467-100A1-00

Unavailable

DAMPER, LOCATING 1

1LX-24181-00-00

Unavailable

STAY,CHAMBER

4AA-2415F-00-00

Unavailable

SCREW PAN HEAD

98580-06010-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

Unavailable

GRAPHIC SET

4AA-24240-11-00

Unavailable

DAMPER, LOCATING 2

4AA-24182-00-00

Unavailable

C0LLAR

90387-062M9-00

Unavailable

BOLT,HEXAGON

97017-06008-00

Unavailable
