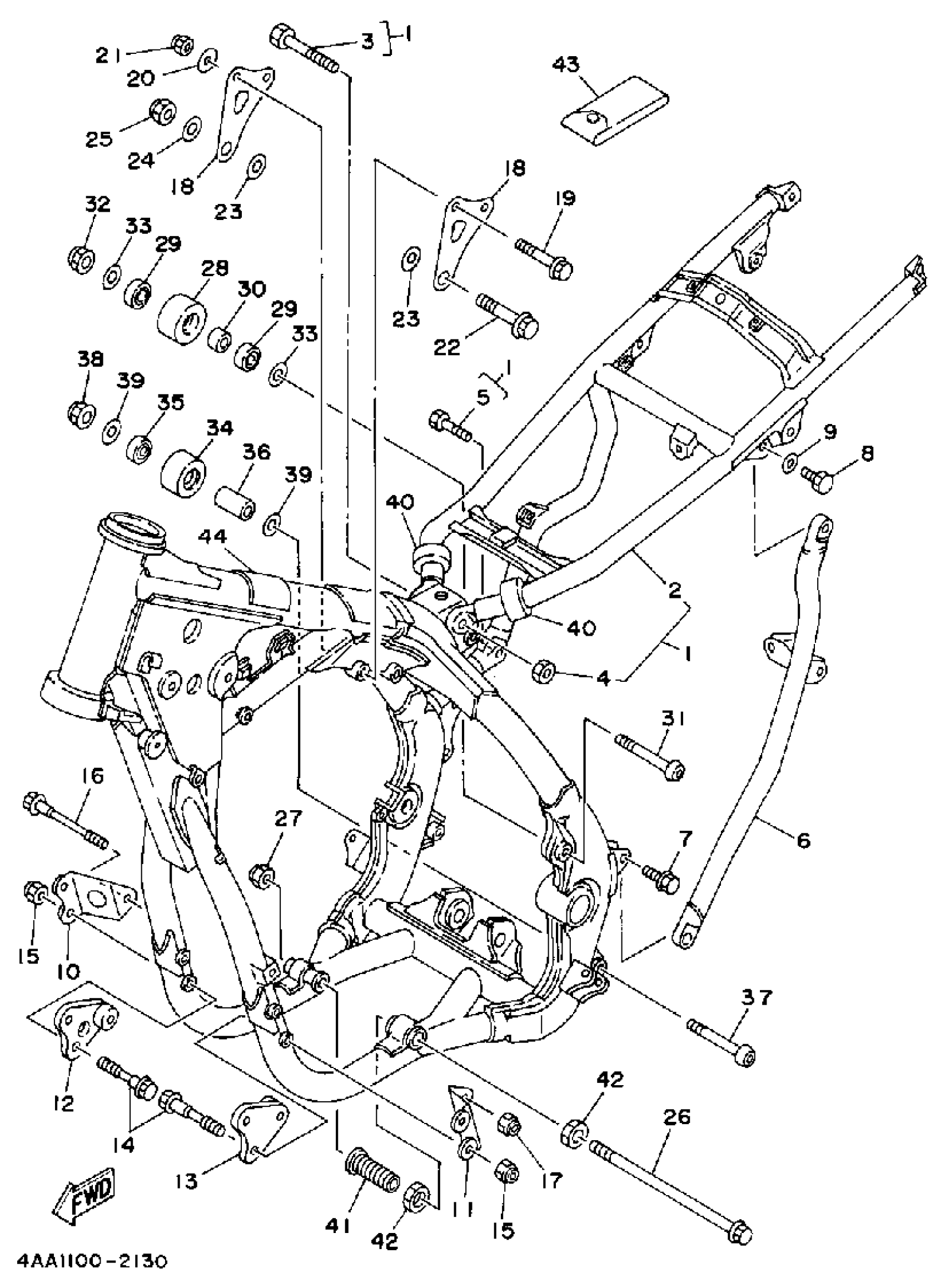

Yamaha WR500ZE (WR500Z) 1993 FRAME Diagram
#
1
FRAME
4AA-21110-00-UJ
Unavailable
2
. REAR FRAME COMP
4AA-21190-00-UJ
Unavailable
3
. BOLT
90101-08707-00
Unavailable
6
BACK, STAY LH
4AA-21123-00-UJ
Unavailable
10
BRACKET, OUTER 1
40T-2141K-00-00
Unavailable
11
BRACKET, OUTER 2
40T-2141L-00-00
Unavailable
12
BRACKET, FRONT UPPER 1
40T-21415-00-00
Unavailable
13
BRACKET, FRONT UPPER 2
40T-21416-00-00
Unavailable
14
BOLT, WASHER BASED
90105-08107-00
Unavailable
16
BOLT,WASHER BASED
90105-08465-00
Unavailable
18
BRACKET, REAR UPPER 1
4AA-21425-00-00
Unavailable
19
BOLT, FLANGE
95817-08060-00
Unavailable
20
WASHER 6464313202
90202-08022-00
Unavailable
22
BOLT, FLANGE
95817-10060-00
Unavailable
23
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
24
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
25
NUT, SELF-LOCKING
90185-10170-00
Unavailable
26
BOLT, ENGINE MOUNTING 1
4A0-21481-00-00
Unavailable
27
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
28
TENSIONER
3JD-22178-00-00
Unavailable
29
BEARING (3X3)
93300-60804-00
Unavailable
30
COLLAR(1HX)
90387-087K5-00
Unavailable
31
BOLT, BUTTON
92017-08070-00
Unavailable
33
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
34
TENSIONER
3JD-22178-20-00
Unavailable
35
BEARING (3X3)
93300-60804-00
Unavailable
36
COLLAR(1NL)
90387-086N4-00
Unavailable
37
BOLT, BUTTON
92017-08070-00
Unavailable
39
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
40
DAMPER, SIDE COVER
3XJ-21717-00-00
Unavailable
41
WASHER, LOCK
4AA-21495-00-00
Unavailable
42
NUT, HEXAGON
90170-16278-00
Unavailable
43
TOOL KIT
56A-28100-00-00
Unavailable
44
DAMPER, PLATE 1
4AA-2414H-00-00
Unavailable
