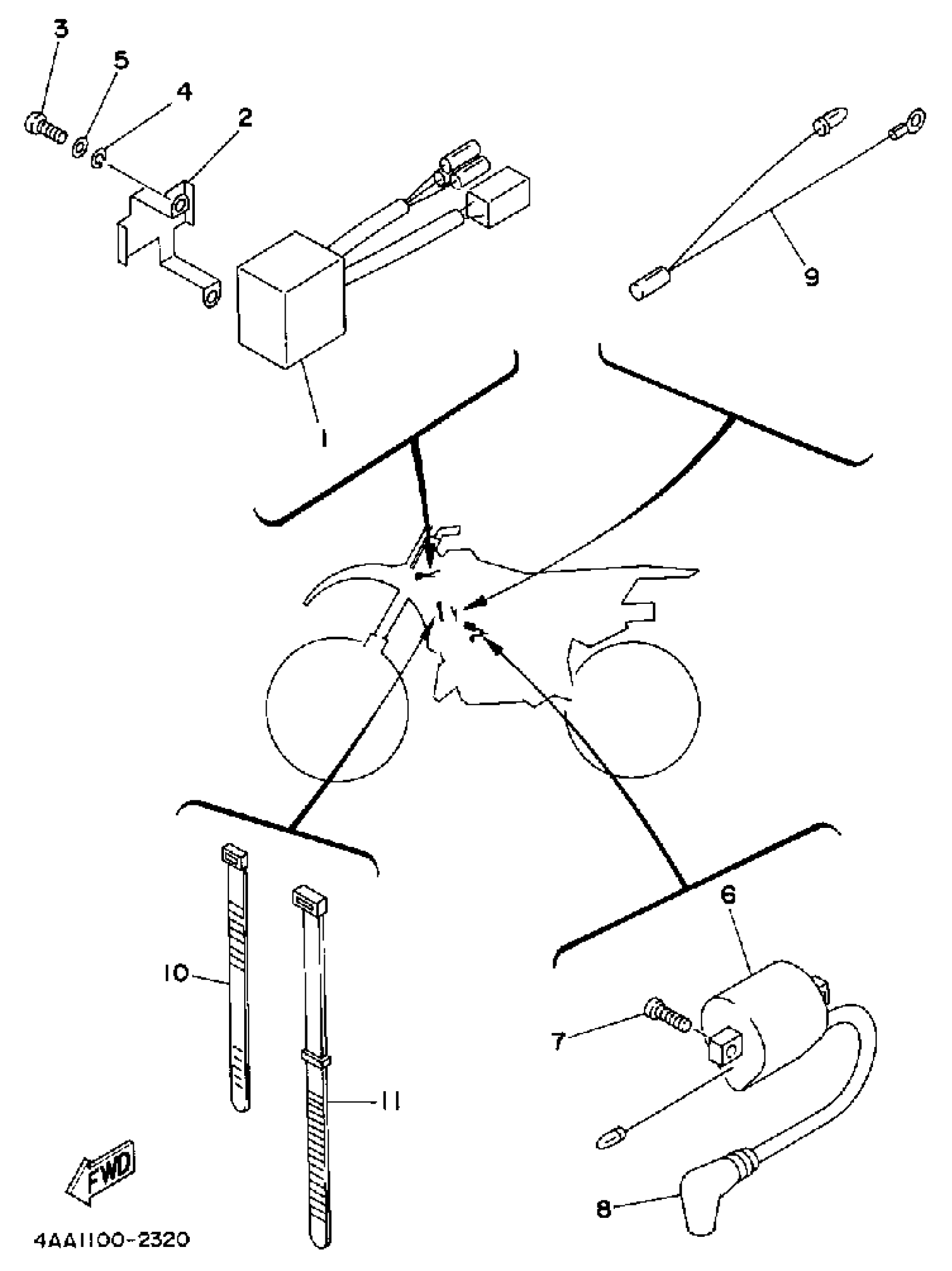

Yamaha WR500ZE (WR500Z) 1993 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

23X-85540-20-00

Unavailable

2

BAND

4AA-85546-00-00

Unavailable

3

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

4

WASHER, SPRING

92995-06100-00

$2.95

5

WASHER, PLAIN (646)

92990-06600-00

$1.84

6

IGNITION COIL ASSY

3SR-82310-10-00

Unavailable

7

SCREW, PAN HEAD

98580-06016-00

$2.88

8

PLUG CAP ASSY

8DG-82370-00-00

$41.54

9

WIRE, EARTH LEAD

5X1-82519-01-00

Unavailable

10

BAND

1UA-82591-00-00

$3.85

11

BAND, SWITCH CORD

437-83936-11-00

$3.34
