Description

Price

1

HEAD, CYLINDER 1

4AA-11111-00-00

Unavailable

2

GASKET, CYLINDER HEAD 1

40T-11181-00-00

Unavailable

3

B8EG NGK SPLUG 4PK

B8E-G0000-00-00

Unavailable

4

BOLT, STUD (5V6)

90116-08394-00

$11.49

5

NUT(55X)

90179-08491-00

$8.49

6

WASHER (1T1)

90201-08649-00

$9.49

7

CYLINDER 1

4AA-11311-00-00

Unavailable

8

GASKET, CYLINDER

1LV-11351-10-00

Unavailable

9

BOLT, STUD

90116-12315-00

Unavailable

10

BOLT, STUD

90116-12316-00

Unavailable

11

NUT(3GG)

90179-12588-00

$7.49

12

PIN, DOWEL(MH0)

91815-16017-00

$8.49

13

HOOK, SPRING

4AA-14619-00-00

Unavailable

14

ABSORBER 2

3R6-11162-00-00

Unavailable

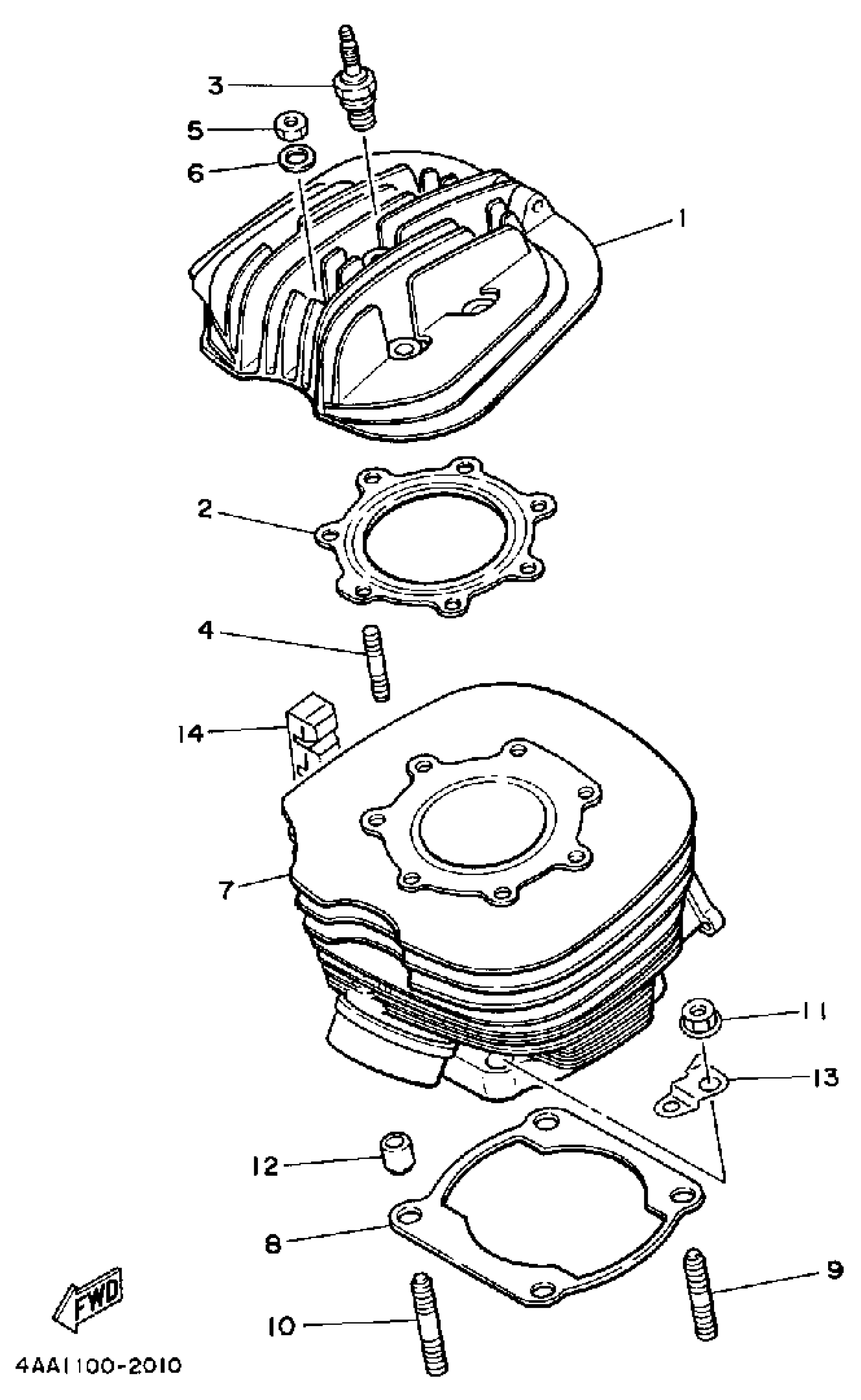

Yamaha WR500ZE (WR500Z) 1993 CYLINDER Diagram

HEAD, CYLINDER 1

GASKET, CYLINDER HEAD 1

B8EG NGK SPLUG 4PK

BOLT, STUD (5V6)

NUT(55X)

WASHER (1T1)

CYLINDER 1

GASKET, CYLINDER

BOLT, STUD

BOLT, STUD

NUT(3GG)

PIN, DOWEL(MH0)

HOOK, SPRING

ABSORBER 2
