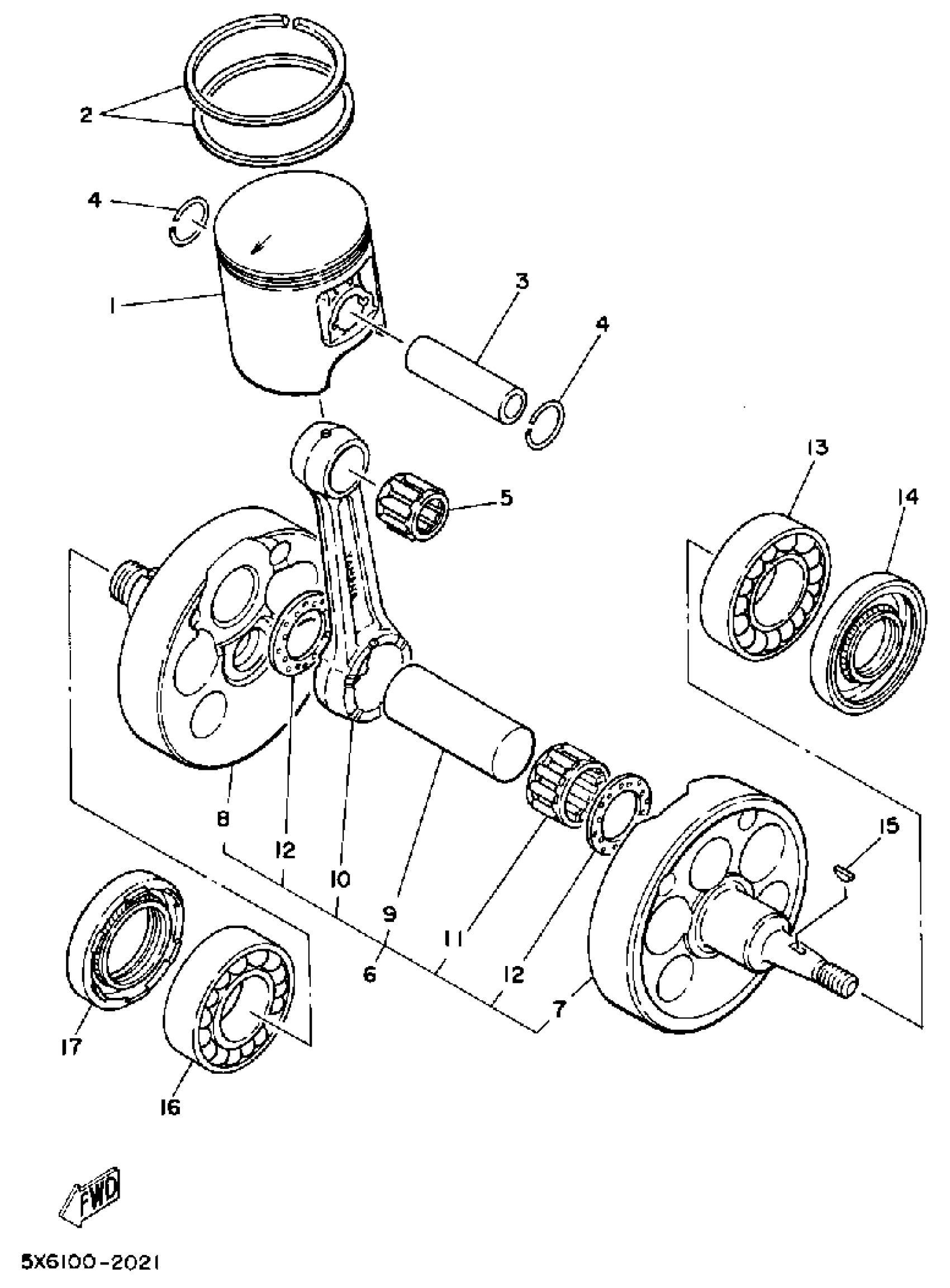

Yamaha WR500ZE (WR500Z) 1993 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

. PISTON STD

40T-11631-00-93

Unavailable

1

. PISTON 1ST O/S (25MM)

40T-11635-00-00

Unavailable

1

. PISTON 2ND O/S (50MM)

40T-11636-00-00

Unavailable

1

. PISTON 3RD O/S (75MM)

40T-11637-00-00

Unavailable

1

. PISTON 4TH O/S (100MM)

40T-11638-00-00

Unavailable

2

. PISTON RING SET STD

5X6-11601-00-00

Unavailable

2

. PISTON RING SET (1ST O/S)

5X6-11601-10-00

Unavailable

2

. PISTON RING SET (2ND O/S)

5X6-11601-20-00

Unavailable

2

. PISTON RING SET (3RD O/S)

5X6-11601-30-00

Unavailable

2

. PISTON RING SET (4TH O/S)

5X6-11601-40-00

Unavailable

3

PIN, PISTON

275-11633-00-00

$35.99

4

CIRCLIP (2F1)

93450-19052-00

$7.49

5

BEARING,CON-ROD SMALLEND(2X5)

93310-418E9-00

$48.99

6

CRANKSHAFT ASSEMBLY (3R5-11400-00) (3R5-11400-00)

40T-11400-00-00

Unavailable

7

. CRANK 1

3R5-11412-00-00

Unavailable

8

. CRANK 2

3R5-11422-00-00

Unavailable

9

PIN, CRANK

3R8-11681-00-00

Unavailable

10

ROD, CONNECTING

3R5-11651-00-00

Unavailable

11

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

Unavailable

12

WASHER 275116850000

90209-25085-00

Unavailable

13

BRG,R-B 6306 72MM 351G KY

93306-30615-00

Unavailable

14

OIL SEAL(38V)

93103-30150-00

Unavailable

15

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

16

BRG,R-B 6306 72MM 351G KY

93306-30615-00

Unavailable

17

PIN, PISTON

275-11633-00-00

$35.99

17

CONNECTING ROD ASSY

3R5-11650-00-00

Unavailable

17

ROD, CONNECTING

3R5-11651-00-00

Unavailable

17

PIN, CRANK

3R8-11681-00-00

Unavailable

17

PISTON KIT STD

40T-11630-00-00

Unavailable

17

PISTON KIT 1ST O/S

40T-11630-10-00

Unavailable

17

PISTON KIT 2ND O/S

40T-11630-20-00

Unavailable

17

PISTON KIT 3RD (3RD O/S)

40T-11630-30-00

Unavailable

17

PISTON KIT (4TH O/S)

40T-11630-40-00

Unavailable

17

. PISTON STD

40T-11631-00-93

Unavailable

17

. PISTON 1ST O/S (25MM)

40T-11635-00-00

Unavailable

17

. PISTON 2ND O/S (50MM)

40T-11636-00-00

Unavailable

17

. PISTON 3RD O/S (75MM)

40T-11637-00-00

Unavailable

17

. PISTON 4TH O/S (100MM)

40T-11638-00-00

Unavailable

17

. PISTON RING SET STD

5X6-11601-00-00

Unavailable

17

. PISTON RING SET (1ST O/S)

5X6-11601-10-00

Unavailable

17

. PISTON RING SET (2ND O/S)

5X6-11601-20-00

Unavailable

17

. PISTON RING SET (3RD O/S)

5X6-11601-30-00

Unavailable

17

. PISTON RING SET (4TH O/S)

5X6-11601-40-00

Unavailable

17

WASHER 275116850000

90209-25085-00

Unavailable

17

OIL SEAL (434)

93103-40091-00

Unavailable

17

BEARING,CON-ROD SMALLEND(2X5)

93310-418E9-00

$48.99

17

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

Unavailable

17

CIRCLIP (2F1)

93450-19052-00

$7.49
